APOPO Rescue Rat Backpack Design

Ilya Sobol

APOPO Rescue Rat BackPack

APOPO Rescue Rat Backpack – Wearable Tech for Life-Saving Missions As the lead CAD designer, I designed a third generation of the specialized rescue backpack for APOPO’s HeroRATs — trained rodents that assist in disaster response and landmine detection. This project required a seamless blend of wearable technology, ergonomic design, and lightweight engineering to create a functional and comfortable device for these remarkable animals.
ROLES: Product/CAD Designer
Project description: As the lead CAD designer, I designed a third generation of the specialized rescue backpack for APOPO’s HeroRATs — trained rodents that assist in disaster response and landmine detection. This project required a seamless blend of wearable technology, ergonomic design, and lightweight engineering to create a functional and comfortable device for these remarkable animals.

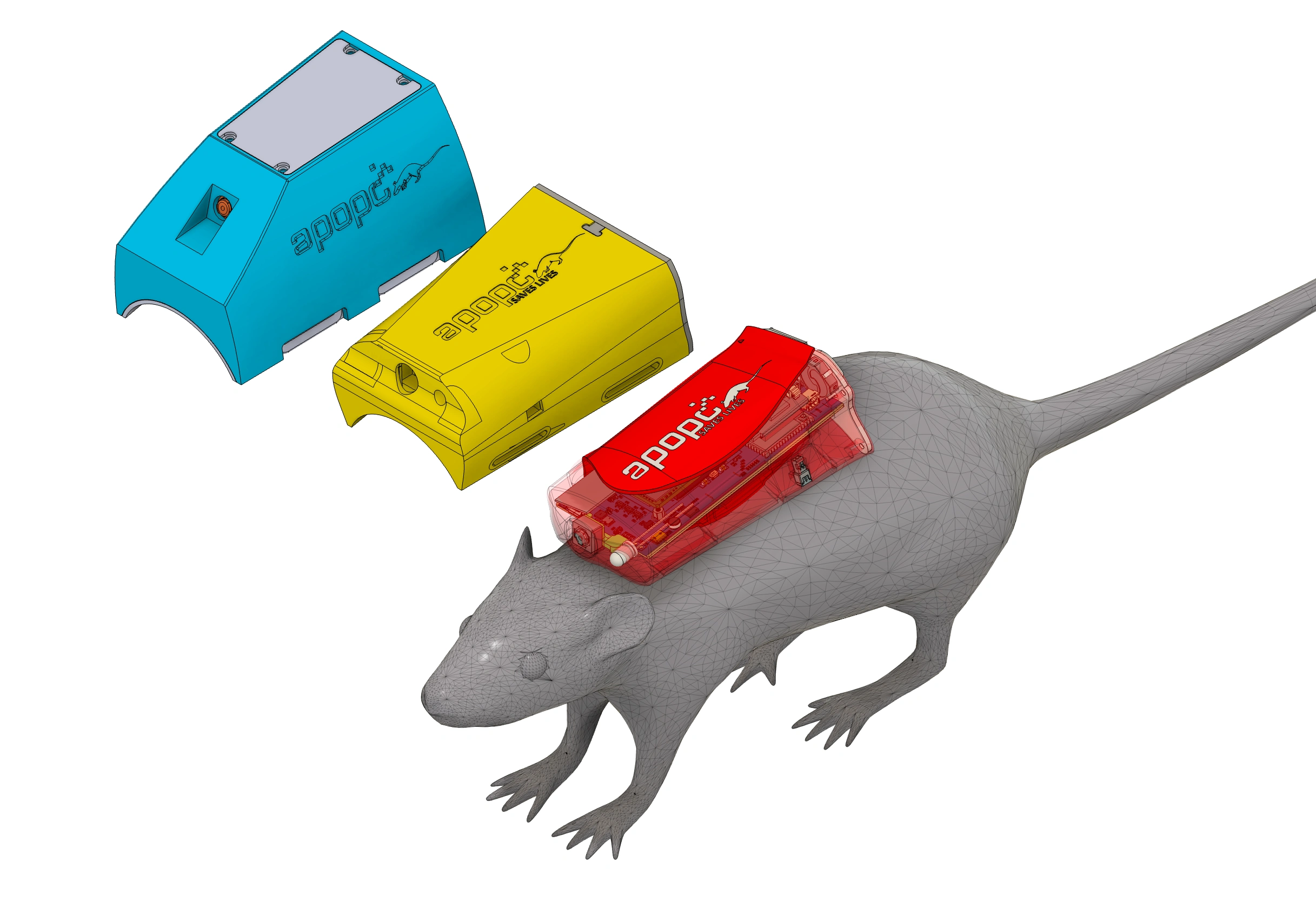

Comparison of the sizes of the 1st(blue), 2nd(yellow) and 3rd(red) generations of the backpack
Comparison of the sizes of the 1st(blue), 2nd(yellow) and 3rd(red) generations of the backpack
Scope of work:
•Designed an ultra-lightweight, compact electronics enclosure in the form of a rat backpack, meeting stringent requirements of under 30 grams total weight.
•Developed a slide-in style design to eliminate screws, minimizing weight while maintaining structural integrity and ensuring a precise fit for all components.
•Accommodated 10 components, including a camera, fan, and GPS antenna, in an enclosure with clearances of less than 1mm, requiring innovative internal layouts and assembly tools.
•Delivered 3D models optimized for 3D printing, alongside custom-designed assembly tools for component placement, such as tools for camera, fan, and antenna installation.
•Overcame significant challenges in size and weight constraints while incorporating features like active cooling and a watertight PTFE membrane for free airflow and protection.
•Resulted in a design that was lighter, smaller, and more efficient than previous iterations while fully meeting functional requirements.
•Tools: Fusion 360, with extensive creativity and problem-solving applied throughout the project.
•Collaboration: Worked independently, with regular feedback sessions involving the product owner and PCB designer to refine critical design aspects.
•Duration: 2–3 months, with over 30 hours of detailed design and iteration work.

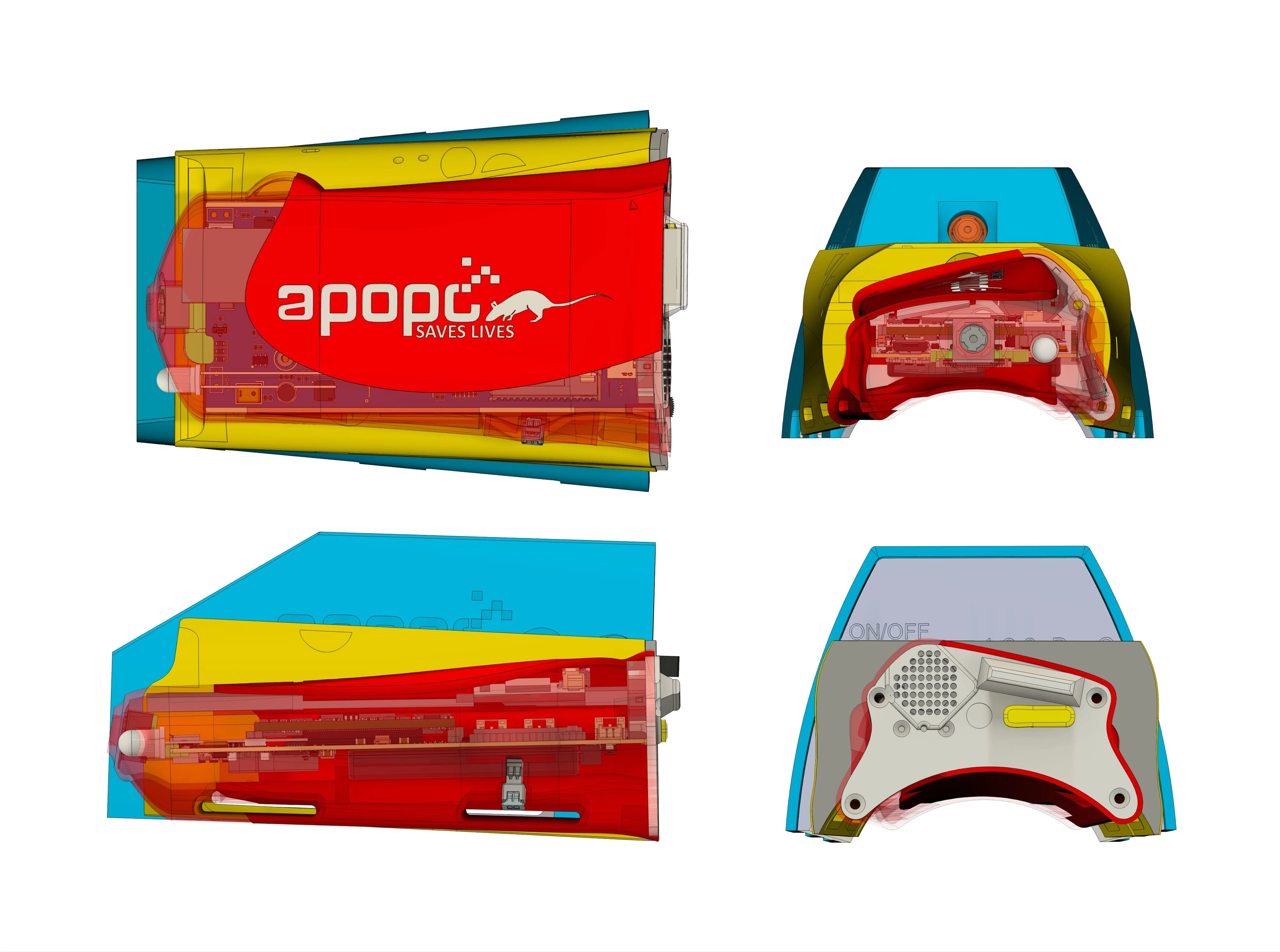

Multiple views size comparison showing significant size advantage at all 3 dimensions
Multiple views size comparison showing significant size advantage at all 3 dimensions
Impact & Significance:
This project supports humanitarian efforts worldwide, enabling APOPO’s HeroRATs to locate survivors in disaster zones and detect hazardous materials with real-time data transmission. My design played a critical role in enhancing these life-saving operations.

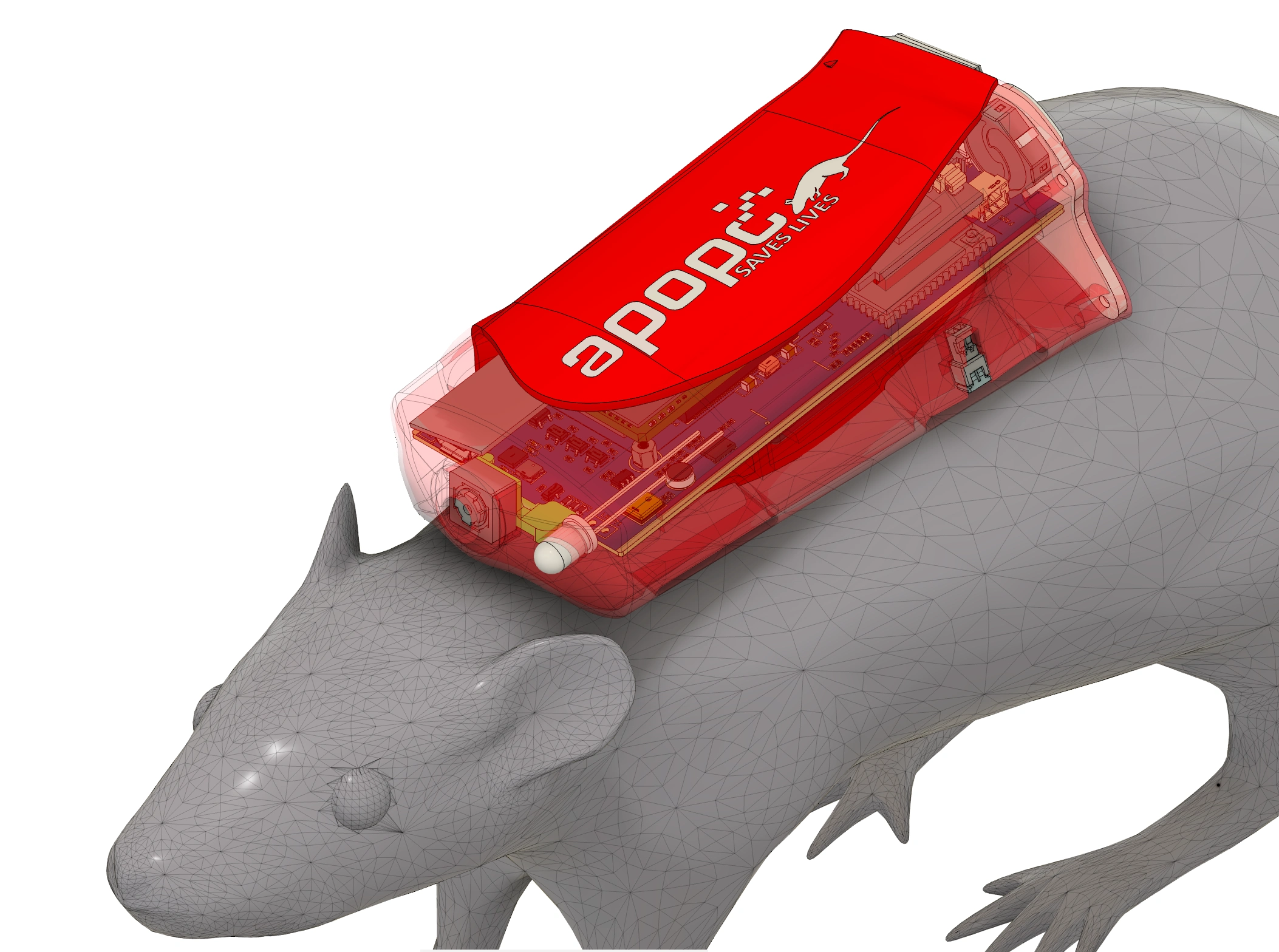

Ready for field testing Backpack
Like this project

Posted May 25, 2025

Designed a rescue backpack for APOPO's HeroRATs blending tech, ergonomics, and lightweight engineering.

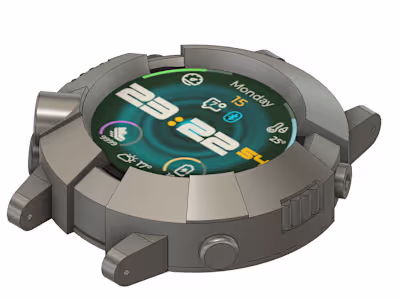

Tom Clancy's The Division 2 Smart Watch Conversion
Tom Clancy's The Division 2 Smart Watch Conversion

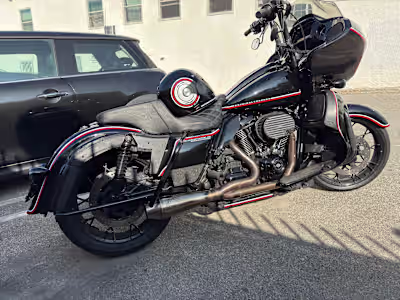

Harley Davidson Decorative Motorcycle Part Design
Harley Davidson Decorative Motorcycle Part Design
The Magic Journey Book: Interactive Color-Changing Illustrations
The Magic Journey Book: Interactive Color-Changing Illustrations

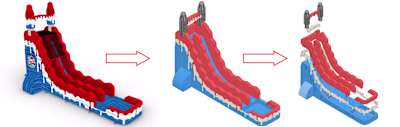

Conversion of Inflatable Slide to Multi-Color 3D Print Model
