Conversion of Inflatable Slide to Multi-Color 3D Print Model

Ilya Sobol

Conversion of Popsicle Inflatable Slide to 3D Print Model

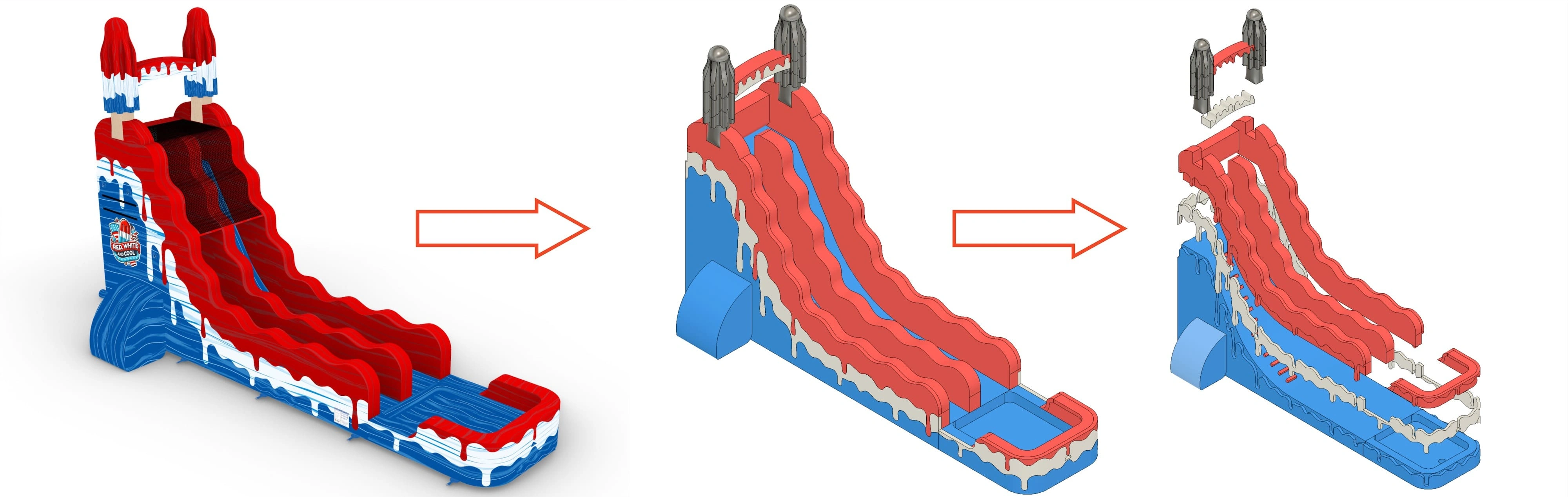

Illustration of the conversion process from T-splines to multi-color solid model
Illustration of the conversion process from T-splines to multi-color solid model

Objective:

The goal of this project was to create a small-scale 3D printable model of a giant real-size Popsicle inflatable slide. This model was commissioned for demonstration purposes, allowing the client to showcase the design in a compact form.

Process:

The project began with converting the slide's surfaces into solids, ensuring that each part maintained its intended shape, thickness and color differentiation. I utilized Rhino 3D production-grade surface model, which was then refined into a solid 3D model in Fusion 360, divided into three distinct colors for printing.

Challenges:

A significant challenge arose with the top popsicle parts, which did not convert seamlessly into solids. To address this, I employed Blender to modify these components, adding an additional 8 hours of work. This was in contrast to the rest of the model, which was prepared for printing within the same timeframe.

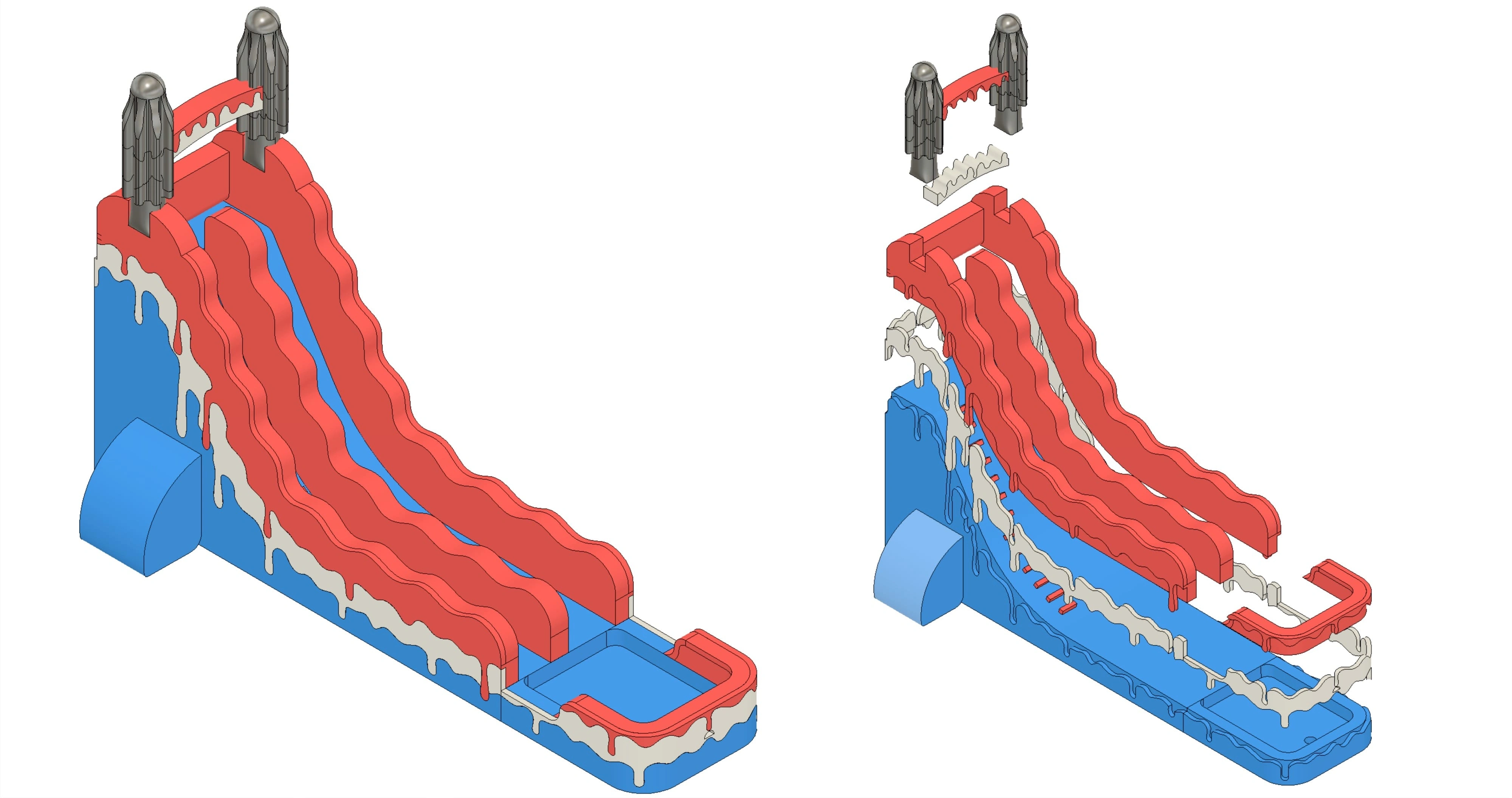

Each color is essentially a separate model
Each color is essentially a separate model

Outcome:

The final result is a CAD solid model, ready for 3D printing in three colors. While I am still awaiting feedback from the client, the model stands as a testament to my ability to overcome design challenges and deliver a high-quality product.

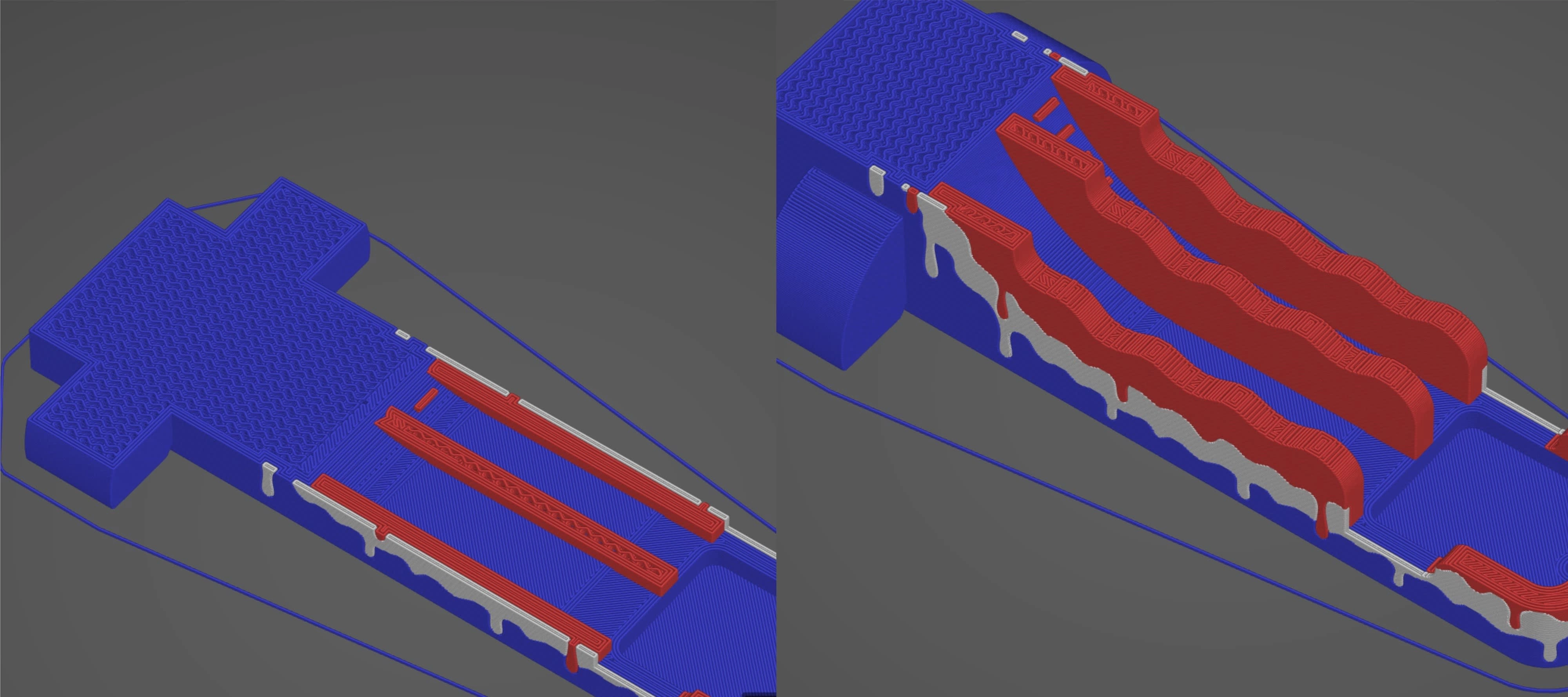

Slicer(3D printing software) preview of the ready model
Slicer(3D printing software) preview of the ready model
Like this project

Posted May 25, 2025

Created a 3D printable model of a Popsicle inflatable slide using Rhino 3D, Fusion 360, and Blender.

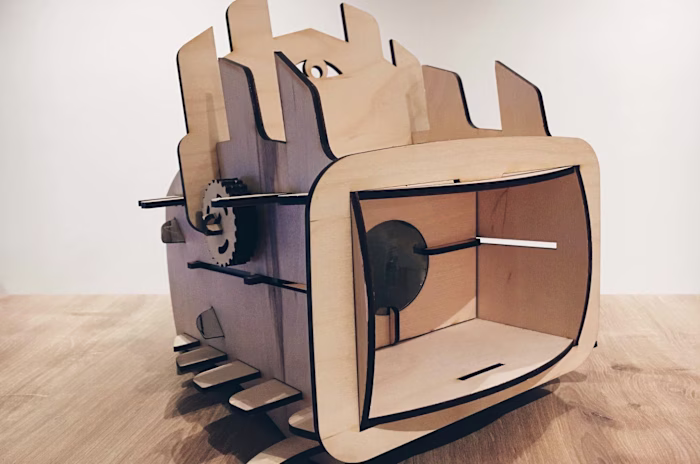

OuCam – Camera Obscura/Magic Lantern custom kit | Product Design
OuCam – Camera Obscura/Magic Lantern custom kit | Product Design
Izobrulo Polylight ChameleTuna Brains Enclosure | CAD
Izobrulo Polylight ChameleTuna Brains Enclosure | CAD

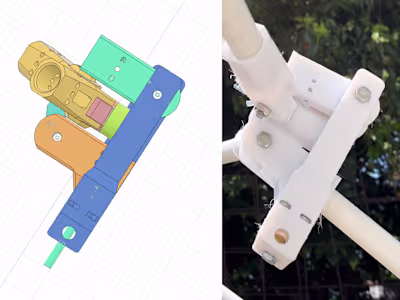

SolStations Leaf Cover Angle Adjustment Mechanical Assembly
SolStations Leaf Cover Angle Adjustment Mechanical Assembly

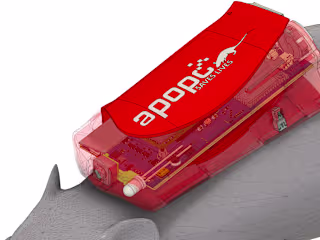

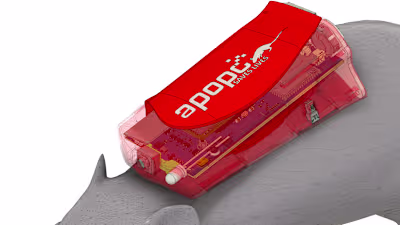

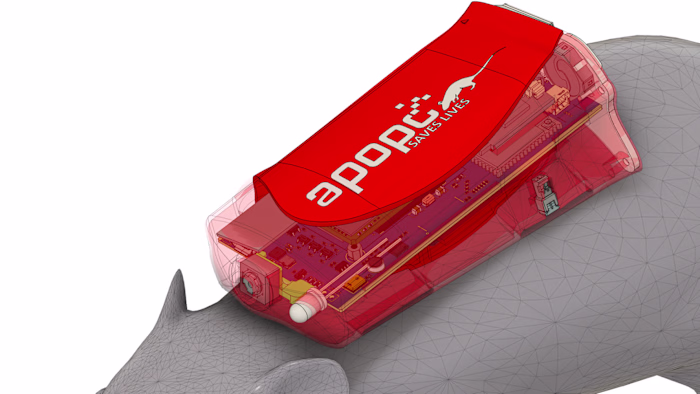

APOPO Rescue Rat Backpack Design
