Harley Davidson Decorative Motorcycle Part Design
Ilya Sobol
Harley Davidson Decorative Motorcycle Part

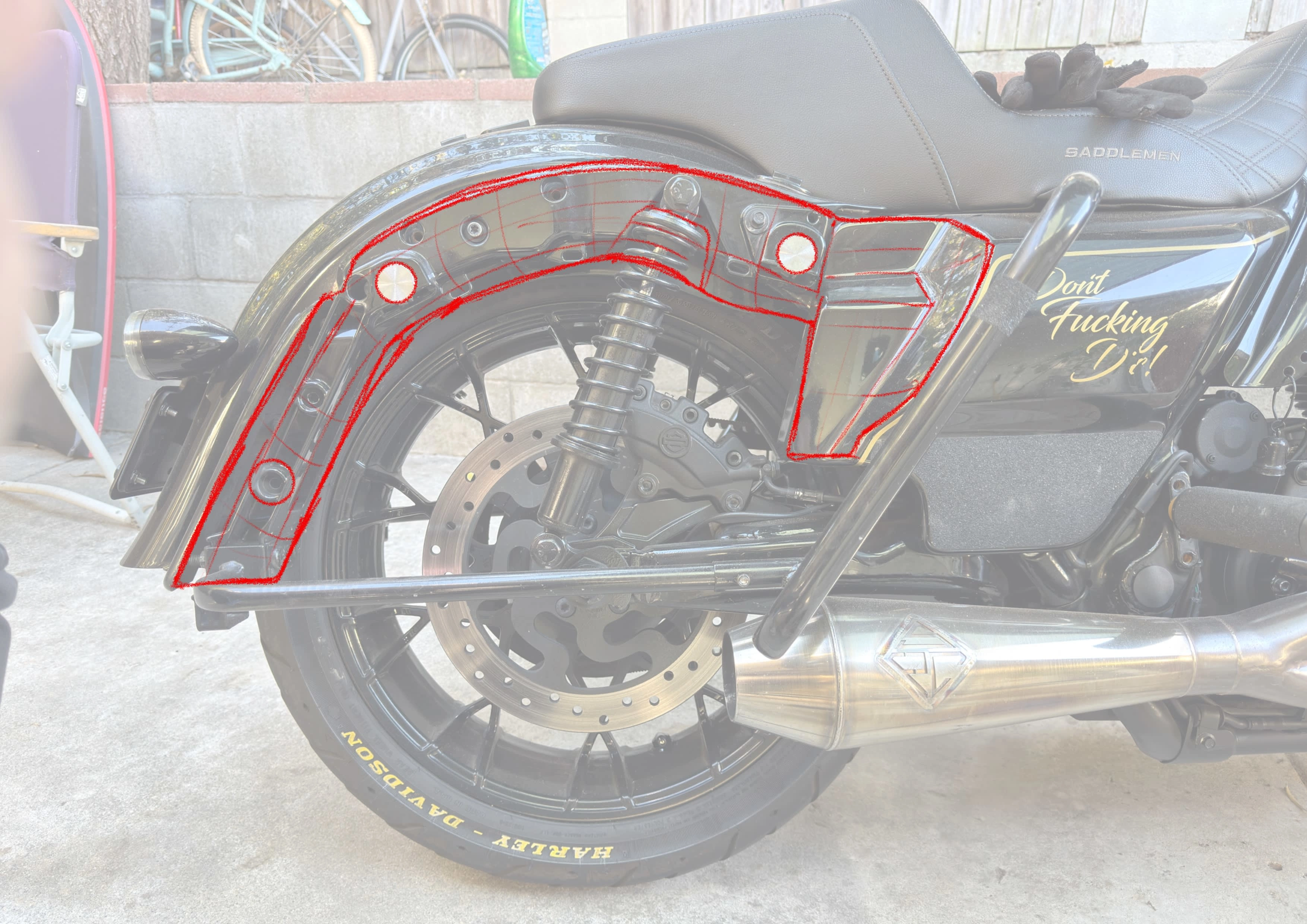

Initial sketch provided by the client
Designed a custom decorative part for Harley Davidson motorcycles based on the client’s initial sketches, providing full manufacturing consultations and support.
Delivered a 3D model along with a 3D-printed prototype for test fitting directly on the motorcycle to ensure accuracy and proper alignment.
Overcame challenges of defining precise dimensions and measurements from photographs of the motorcycle, achieving high accuracy in the initial test fit without 3D scanning.

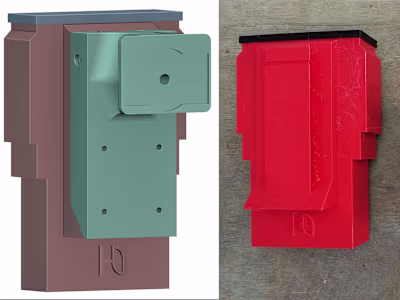

Created tools specifically for manufacturing and assembly, enhancing the production process and ensuring optimal quality.
Preliminary design of the part before preparation for a test fit and 3D printing
Resulted in a custom part that provides significant aesthetic enhancement for Harley Davidson riders, aligning perfectly with the client’s vision.

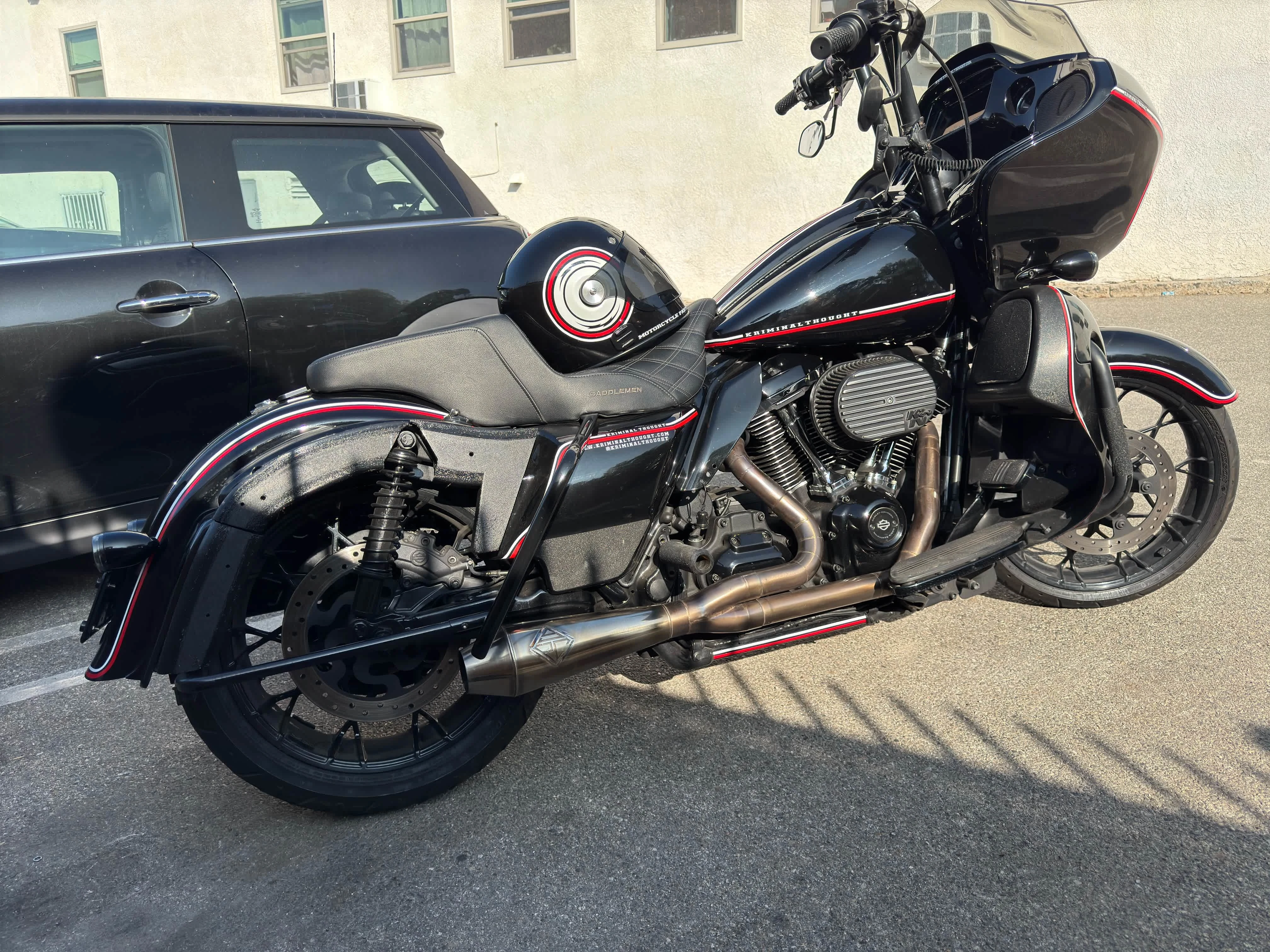

Test fit of the part
Tools: Fusion 360 for design, 3D printer for prototype manufacturing.
Duration: Approximately one month, including 10 job hours and client-led scheduling.
Feedback: Received a 5-star review from the client for delivering exceptional results.
Independent Work: Designed and executed all tasks independently.
Like this project
Posted May 25, 2025
Designed a custom decorative part for Harley Davidson motorcycles.
Likes
0
Views
0
Timeline
Nov 14, 2024 - Dec 15, 2024
