Rotary 4-Chamber Travel Perfume Atomizer Design

Jerry Stark

3D Renderer

Industrial Designer

Product Designer

Blender

KeyShot

SolidWorks

Electronics

Rotary 4-Chamber Travel Perfume Atomizer

1. Executive Summary & Project Overview

The Rotary 4-Chamber Travel Perfume Atomizer is a luxury mechanical hardware design that merges high-density component packaging with a sleek, minimalist aesthetic. Engineered for modern fragrance enthusiasts, this portable device consolidates four independent fragrance vials into a single pocket-sized cylinder featuring a 90° rotary indexing selection system.

Role: Lead Industrial Design & CAD Engineering

Software: SolidWorks (Part Modeling, Surface Architecture, Mechanism Design), KeyShot (Photorealistic Rendering & CMF)

Deliverables: Industrial Design, Internal Mechanical Architecture, DFM Specifications, Photorealistic Studio Renderings, 2D Production Blueprints

2. Problem Statement & User Experience

The Problem: Conventional travel atomizers limit users to a single scent and require carrying multiple bulky, fragile glass bottles in luggage, increasing the risk of leakage, breakage, and TSA cross-contamination.

User Experience Solution: A single cylindrical housing featuring a 90° tactile indexing dial that allows users to instantly switch between four internal fragrance chambers without opening or disassembling the device. Small viewing ports along the body provide clear visibility into fluid levels for each chamber.

3. Product Architecture & 4-Chamber Layout

The product packaging revolves around a central drive axis flanked by four symmetrical internal chambers:

                     [Top Protective Cap]
                              │
                              ▼
                   [Actuator & Spray Nozzle]
                              │
                              ▼
                [90° Rotary Selector Mechanism]
                              │
             ┌────────────────┴────────────────┐
             ▼                                 ▼
   [Indexing Detent Assembly]       [Fluid Manifold System]
             │                                 │
             └────────────────┬────────────────┘
                              │
                              ▼
          [4 x Independent Fragrance Vials (9.4mm Ø)]
                              │
                              ▼
                 [Base Housing & Lower Cover]

Chamber Array: Four individual 9.4mm outer diameter glass/PETG vials are arrayed symmetrically around a central shaft, maximizing internal volume within a compact ∅24.80mm to ∅28.5mm external profile.

Visual Fluid Tracking: Color-coded or clear translucent vials align directly with window cutouts on the mid-collar, letting users quickly identify active scent profiles.

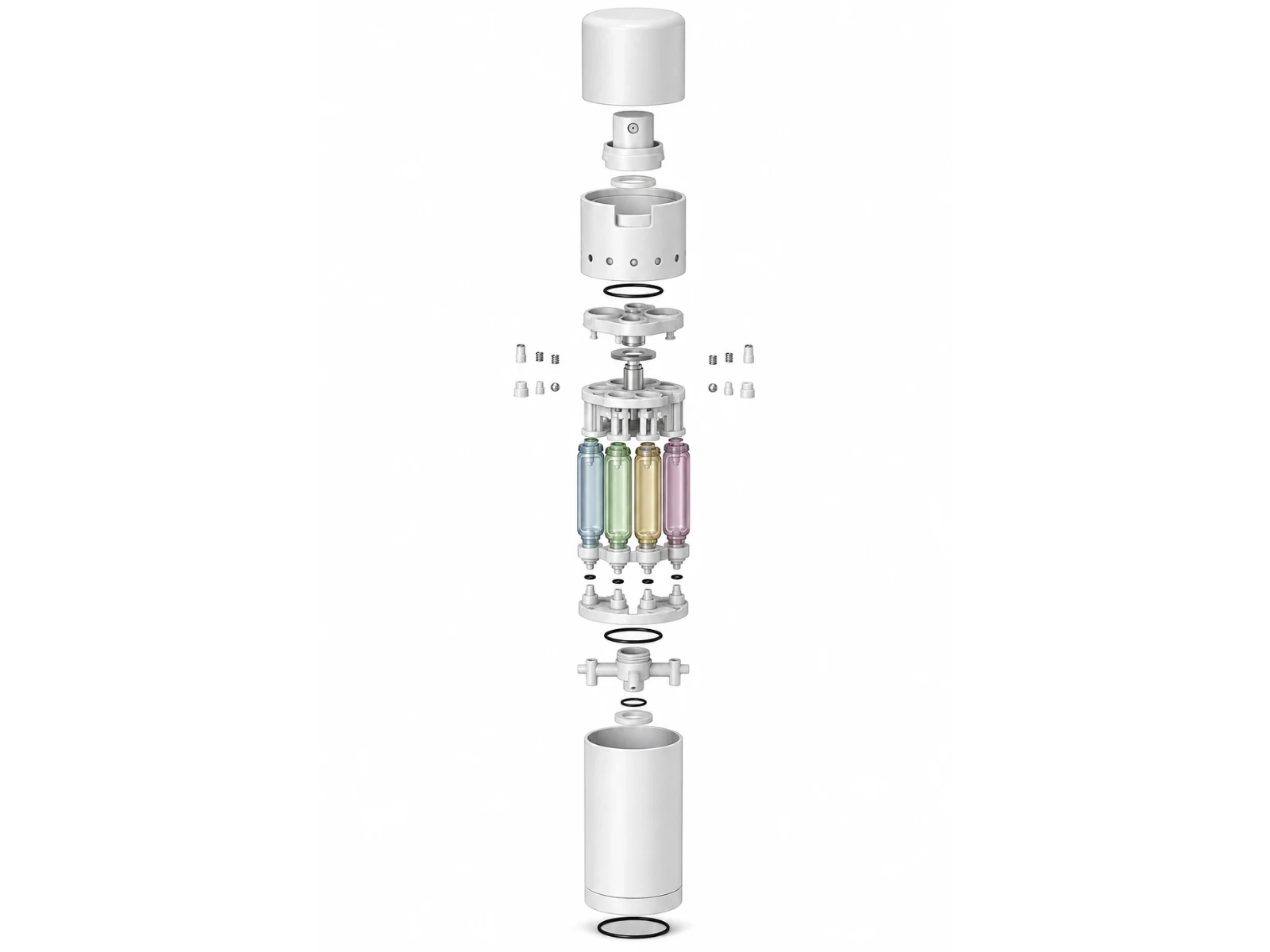

4. Mechanical Engineering & Exploded Assembly

The internal assembly relies on high-precision mechanical linkages, sealing gaskets, and tactile detents to ensure leak-free performance and tactile feedback.

┌────────────────────────────────────────────────────────────────────────┐
│                        EXPLODED PARTS BREAKDOWN                        │
├──────┬───────────────────────────┬─────────────────────────────────────┤
│ Ref# │ Component                 │ Material / Spec                     │
├──────┼───────────────────────────┼─────────────────────────────────────┤
│ 1    │ Protective Cap            │ Aluminum (Anodized)                 │
│ 2    │ Spray Actuator            │ Polypropylene (PP)                  │
│ 3    │ Pump Assembly             │ PP / POM / SUS                      │
│ 4    │ Actuator Collar           │ Polypropylene (PP)                  │
│ 5    │ Return Spring             │ Stainless Steel (SUS 304)           │
│ 6    │ Rotary Drive Shaft        │ Polyoxymethylene (POM)              │
│ 7    │ Rotor / Selector          │ Polyoxymethylene (POM)              │
│ 8    │ Indexing Detent           │ POM / Steel Ball & Spring           │
│ 9    │ Upper Manifold            │ Polyoxymethylene (POM)              │
│ 10   │ Perfume Chambers (x4)     │ Glass / PETG                        │
│ 11   │ One-way Valve             │ PP / Silicone                       │
│ 12   │ Lower Manifold            │ Polyoxymethylene (POM)              │
│ 13   │ Base Housing              │ Aluminum (Anodized)                 │
│ 14   │ O-ring / Gasket (Multiple)│ Silicone                            │
│ 15   │ Bottom Cover              │ Aluminum (Anodized)                 │
└──────┴───────────────────────────┴─────────────────────────────────────┘

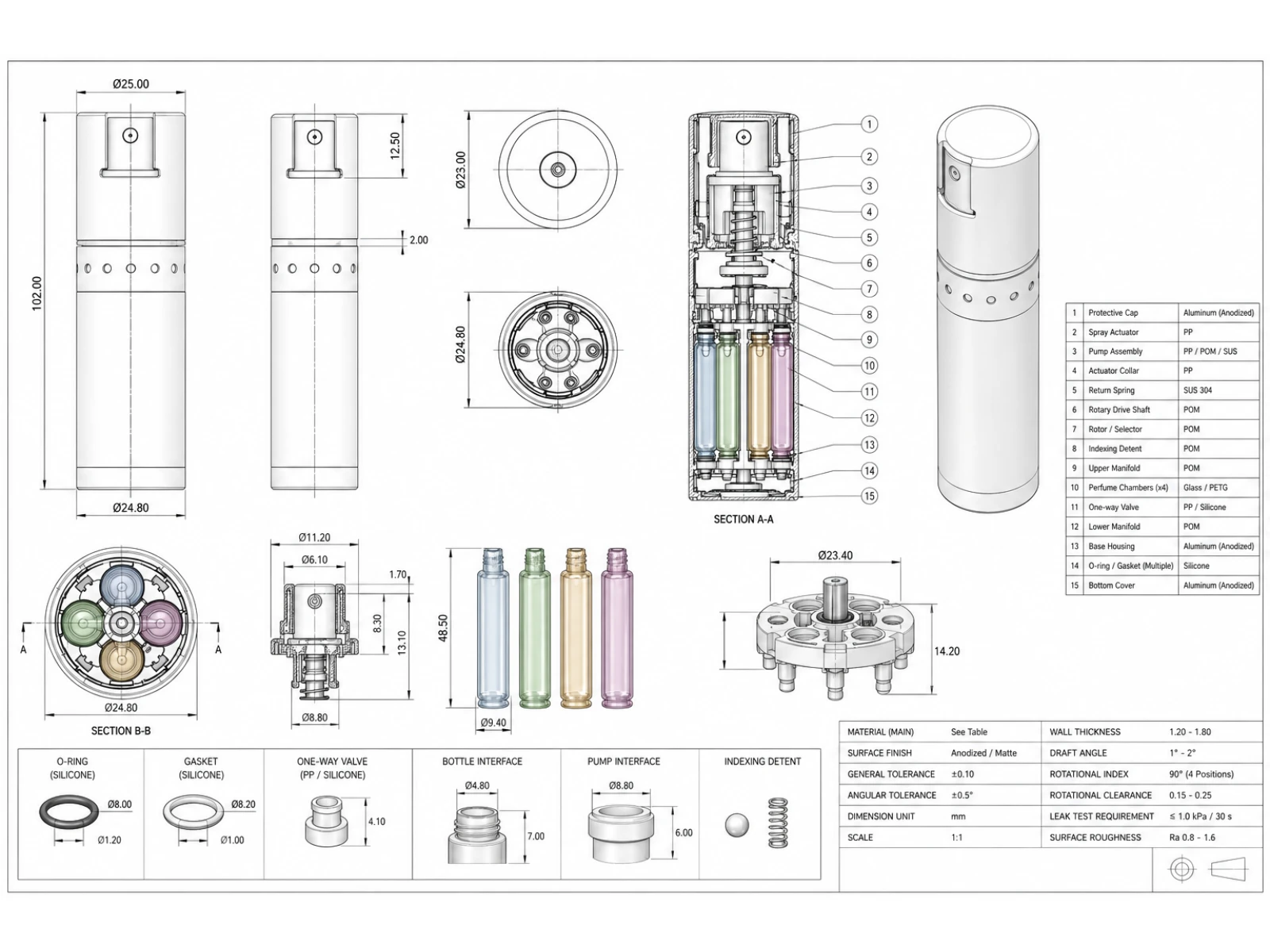

(As detailed in technical drawing sheet SECTION A-A)

Indexing Mechanism: Incorporates a spring-loaded steel ball and detent track within the POM rotor, providing tactile 90° stops for precise alignment over each chamber.

Sealing Strategy: Multi-stage silicone O-rings (∅8.00mm, ∅8.20mm) and one-way valves isolate fluid lines to prevent cross-contamination and air leakage under pressure variations during travel.

5. Technical Specifications & DFM (Design for Manufacturing)

The engineering blueprint defines strict manufacturing tolerances and structural dimensions optimized for CNC machining and precision injection molding:

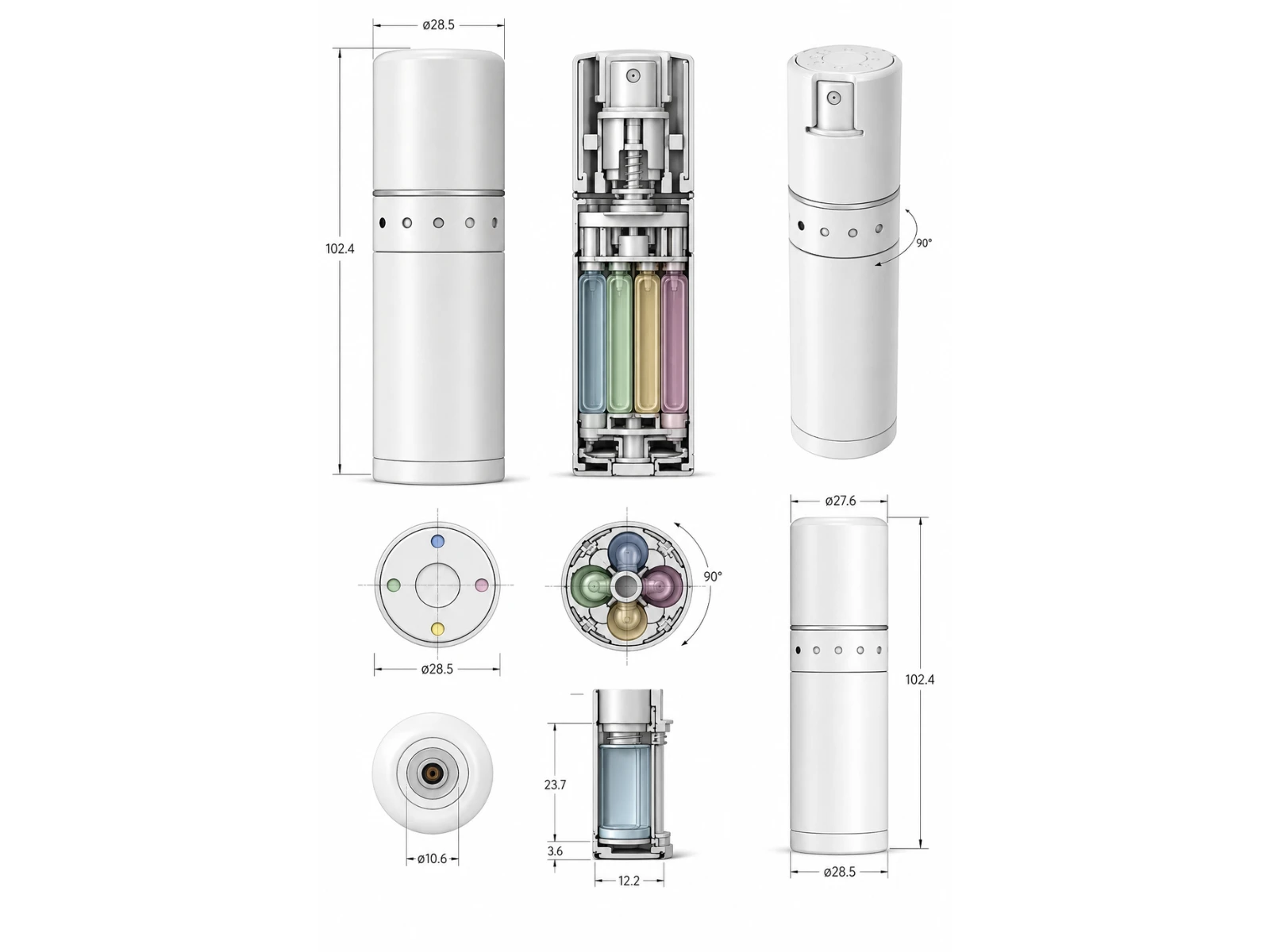

Overall Dimensions: Height = 102.00mm, Base Diameter = ∅24.80mm, Top Cap Diameter = ∅25.00mm.

Vial Dimensions: Height = 48.50mm, Outer Diameter = ∅9.40mm, Neck Thread = ∅4.80mm.

Wall Thickness & Draft Angles: Internal wall thickness maintained between 1.20mm - 1.80mm with a 1° - 2° draft angle for injection-molded POM components.

Tolerances & Sealing: General tolerance of ±0.10mm, angular tolerance of ±0.5°, rotational index tolerance of 90° across 4 positions, and a leak test requirement of ≤1.0 kPa/30s.

6. CMF Strategy (Color, Material, Finish)

The CMF direction pairs durable, lightweight aerospace materials with tactile industrial finishes:

Outer Shell: Deep satin midnight blue and matte anodized aluminum shell with a bead-blasted surface finish (Ra 0.8 - 1.6) for scratch resistance and a premium hand feel.

Accents: Polished gunmetal and metallic accent rings framing the actuator nozzle and viewports.

Internal Chambers: High-clarity PETG / glass vials tinted in subtle translucent pastel tones (blue, green, amber, purple) for instant visual differentiation between fragrances.

7. Photorealistic Studio Rendering & Motion Showcase

Studio visual assets demonstrate both the physical luxury presence and internal mechanical sophistication:

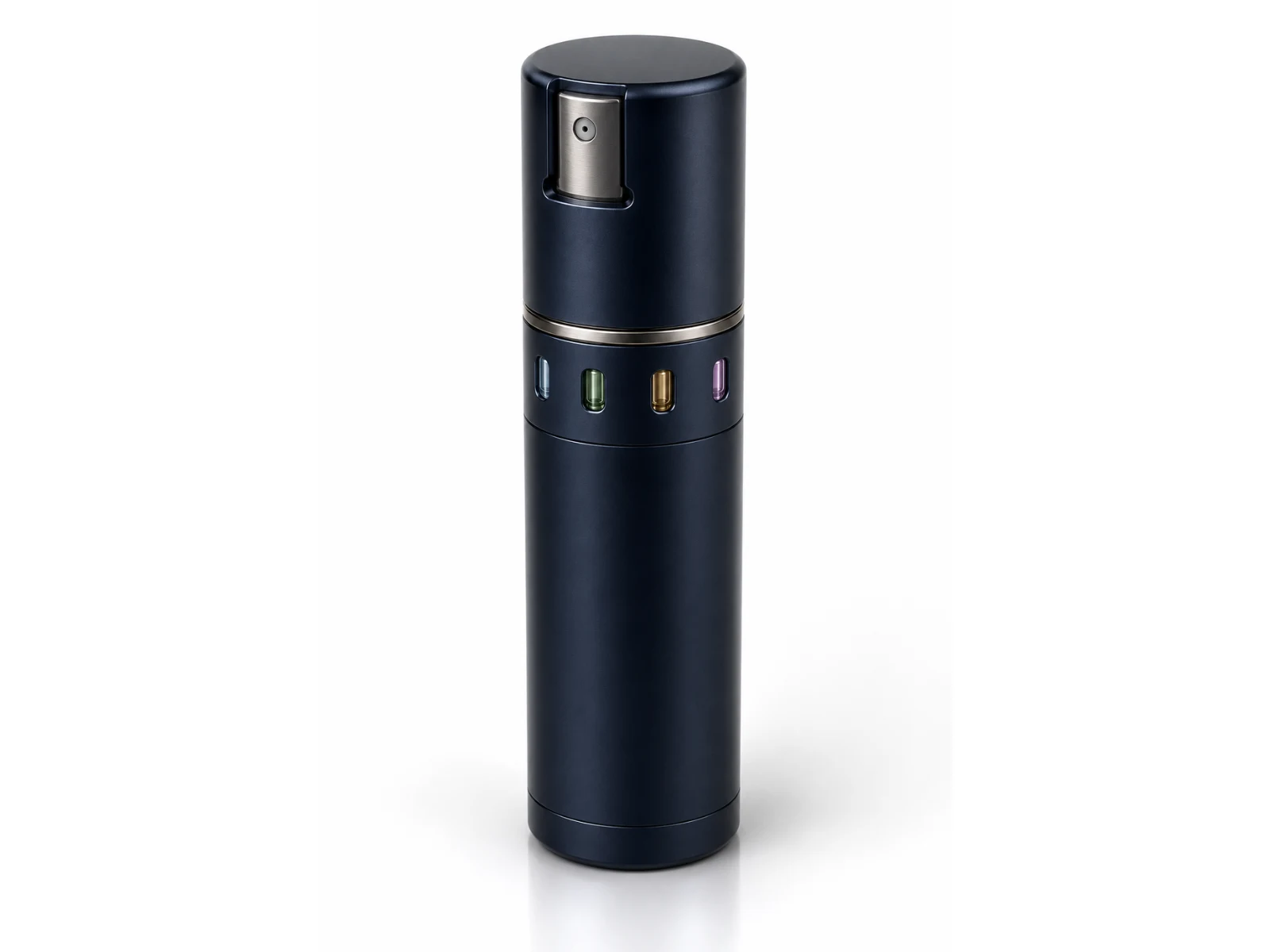

Hero Studio Shot: Soft ambient lighting highlighting the smooth cylindrical silhouette, metallic accent trim, and fluid indicators.

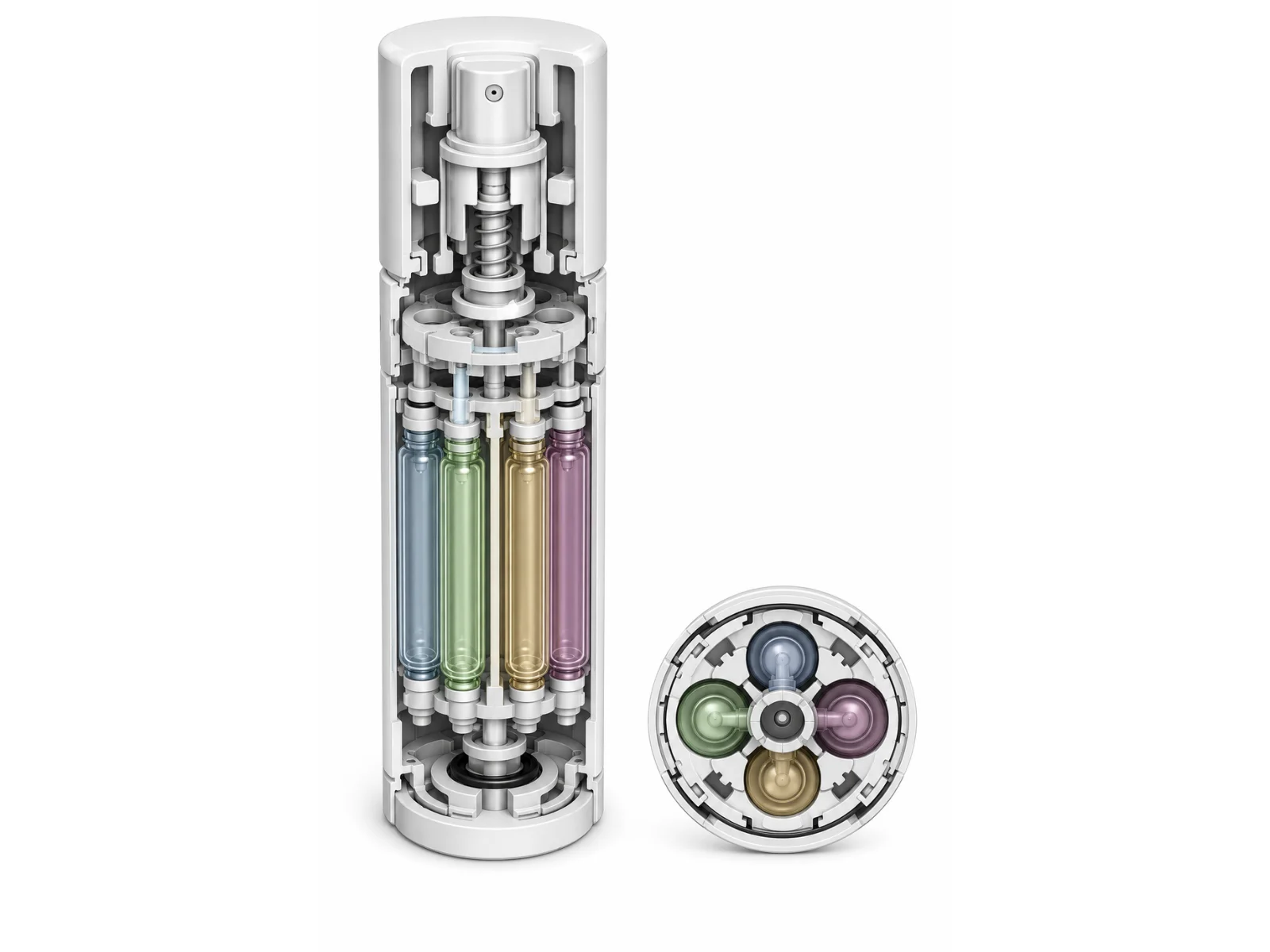

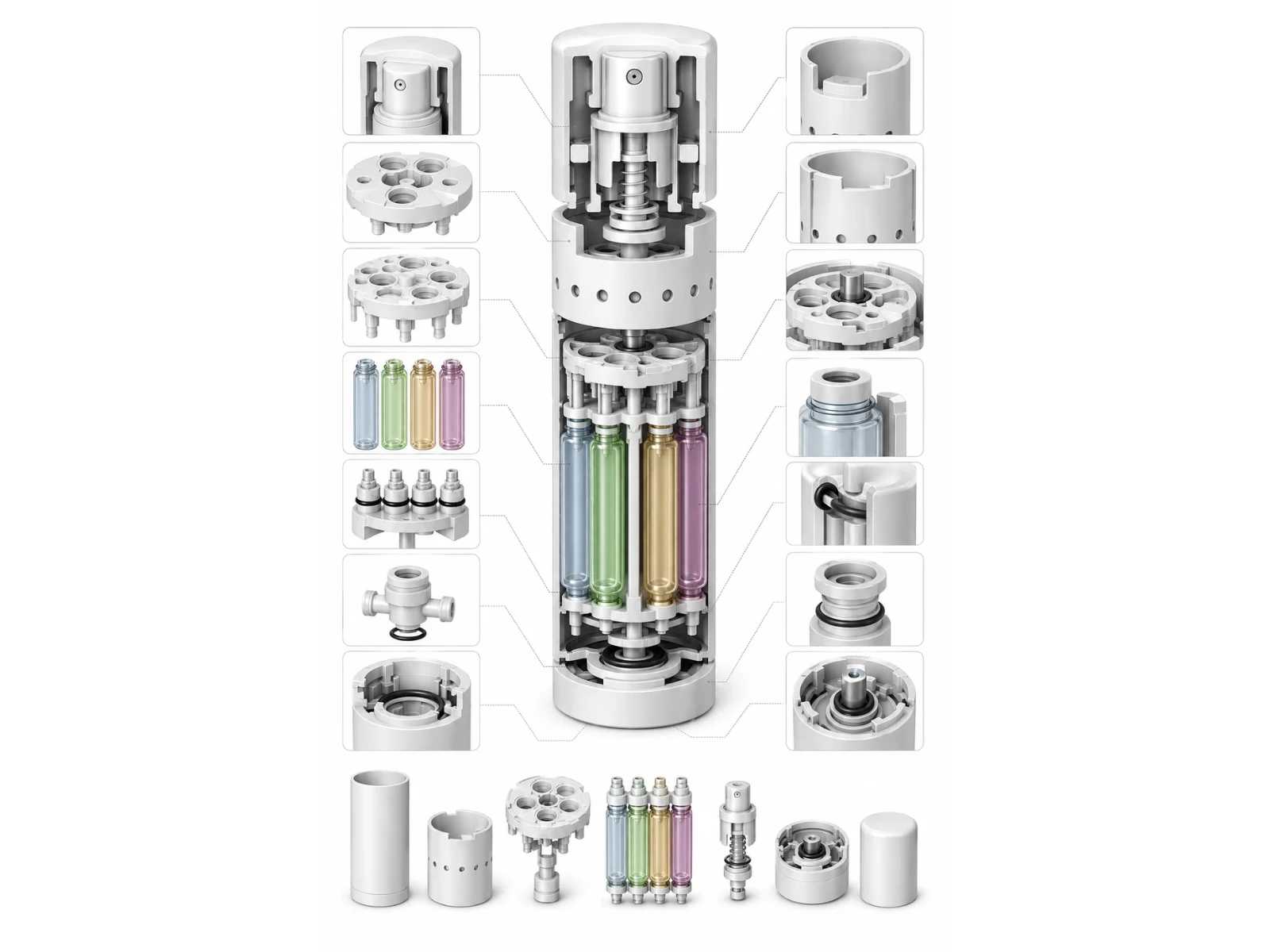

3D Exploded & Cutaway Views: Full vertical exploded assembly and cross-sectional cutaways illustrating internal springs, drive shafts, and manifold channels in high definition.

Rotary Motion Demonstration: Visualized 90° step-rotation pathways to convey smooth, mechanical switching performance.

8. Results, Key Takeaways & Future Iterations

Project Impact: Successfully combined four separate travel fragrance containers into a single compact 102mm tall aluminum housing while ensuring zero fluid cross-contamination.

Key Takeaway: Early section view mapping and detailed DFM tolerancing ensured high packaging density without sacrificing wall strength or assembly feasibility.

Future Iterations: Exploring magnetic alignment detents in place of mechanical steel springs, as well as an integrated micro-window lock to fully seal the spray actuator during transit.
