MR.CAP: Multi-robot Joint Control and Planning for Object Transp

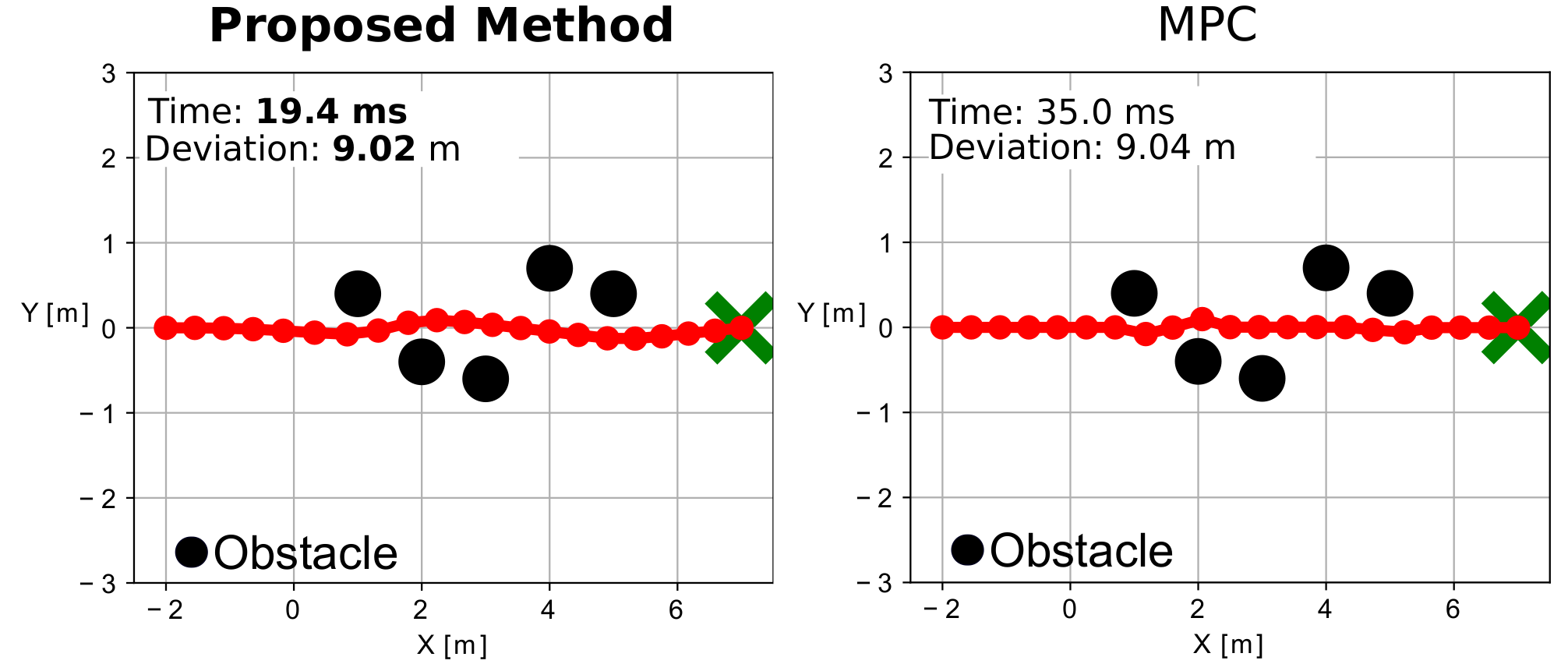

MR.CAP, or Multi-robot Joint Control and Planning for Object Transport, is a novel approach to solve simultaneous multi-robot control and planning problems. The algorithm is developed in C++, making use of factor graph inference and an innovative problem reduction to provide a robust, fast and scalable solution. Our approach outperforms state-of-the-art methods in terms of optimization time, scalability and robustness. The algorithm is tested in simulation and on a real robot system. The paper was accepted for publication in IEEE Control Systems Letters. See the website for more information.

About The Project

MR.CAP, or Multi-robot Joint Control and Planning for Object Transport, is a novel approach to solve simultaneous multi-robot control and planning problems. The algorithm is developed in C++, making use of factor graph inference and an innovative problem reduction to provide a robust, fast and scalable solution. Our approach outperforms state-of-the-art methods in terms of optimization time, scalability and robustness. The algorithm is tested in simulation and on a real robot system. The paper was accepted for publication in IEEE Control Systems Letters. See the website for more information.

(back to top)

][https://gtsam.org/]

][https://cmake.org/

][http://eigen.tuxfamily.org/]

][https://www.boost.org/]

][https://index.ros.org/doc/ros2/]

(back to top)

To setup the project locally, follow these simple steps. The demo will allow you to experiment with the algorithm and to test it on your own system.

First, ensure that you have installed GTSAM, and it's necessary prerequisites, as well as proper linking to the library. See GTSAM for more information.

First, navigate to a directory of your choice, and clone the GLEW and GTSAM repositories.

Clone the repo git clone https:://github.com/h2jaafar/mr.cap.git

Build the project cd mr.cap mkdir build && cd build cmake .. make

Run the demo ./mrcap_demo

(back to top)

There are three ways to use the algorithm:

Pure C++ simulation (i.e non-physics based)

Gazebo simulation

Real robot system

To use the pure C++ simulation, simply run the demo as described above. This will run the algorithm on a simulated system, and launch a GUI using ImGui and ImPlot to visualize the results.

There are several configurable parameters in the demo. These are:

Number of robots

Number of obstacles

Number of steps

Start and goal positions of the centroid

Robot geometry

Optimization parameters

Covariance parameters

Psuedo-disturbances (for testing) as well as many more, found in include/mrcap/MainWindow.h. We have tried to make as many of these parameters as possible configurable, to allow for easy experimentation, however, some of them may require some searching in the code to find.

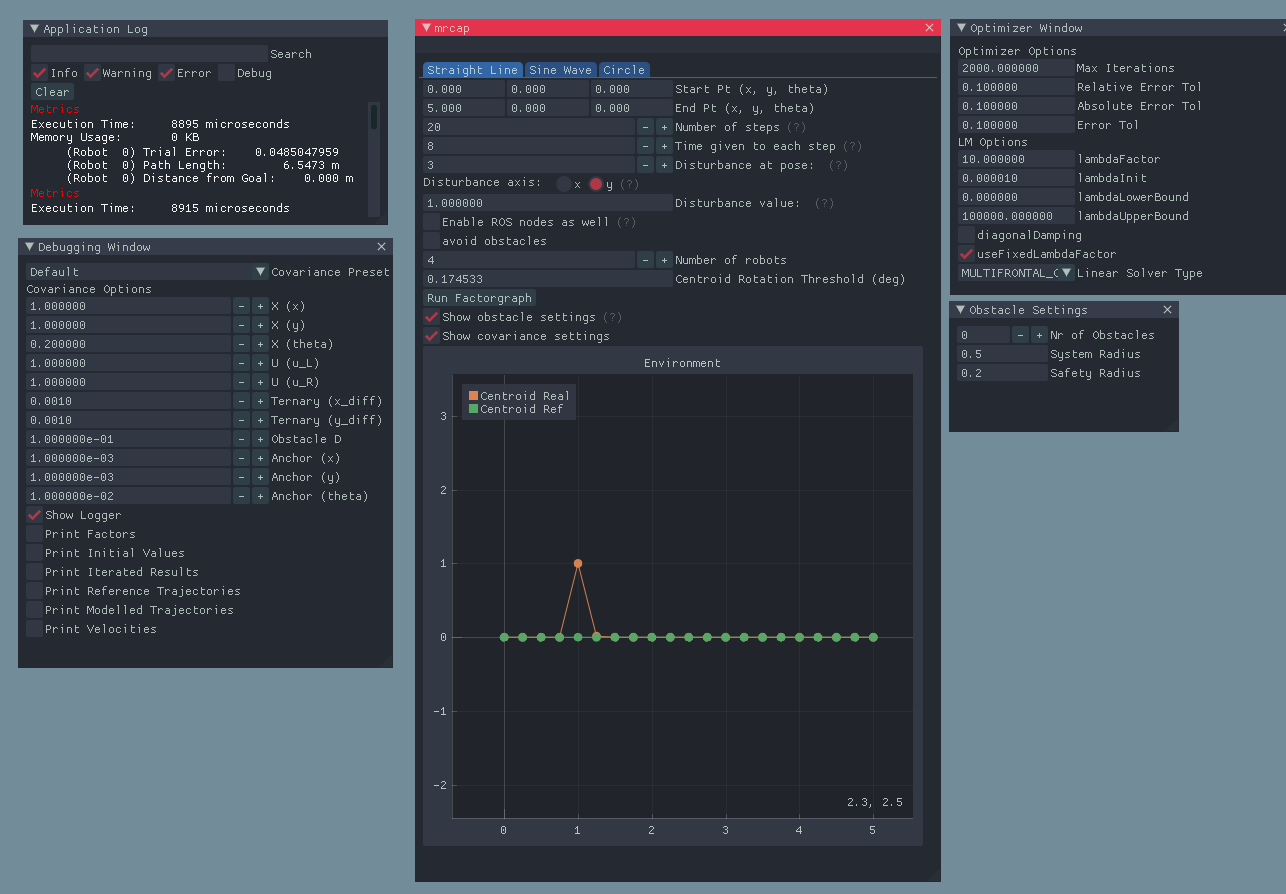

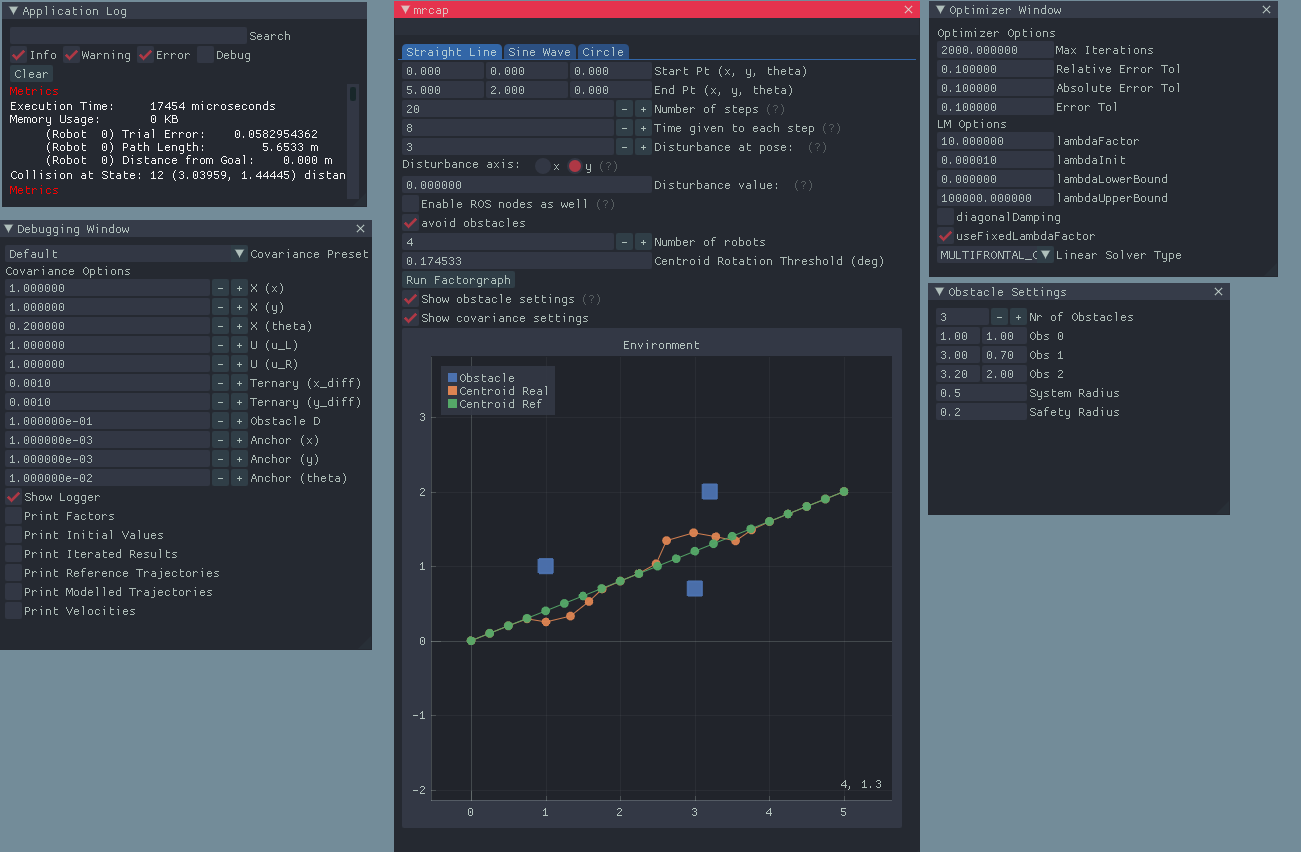

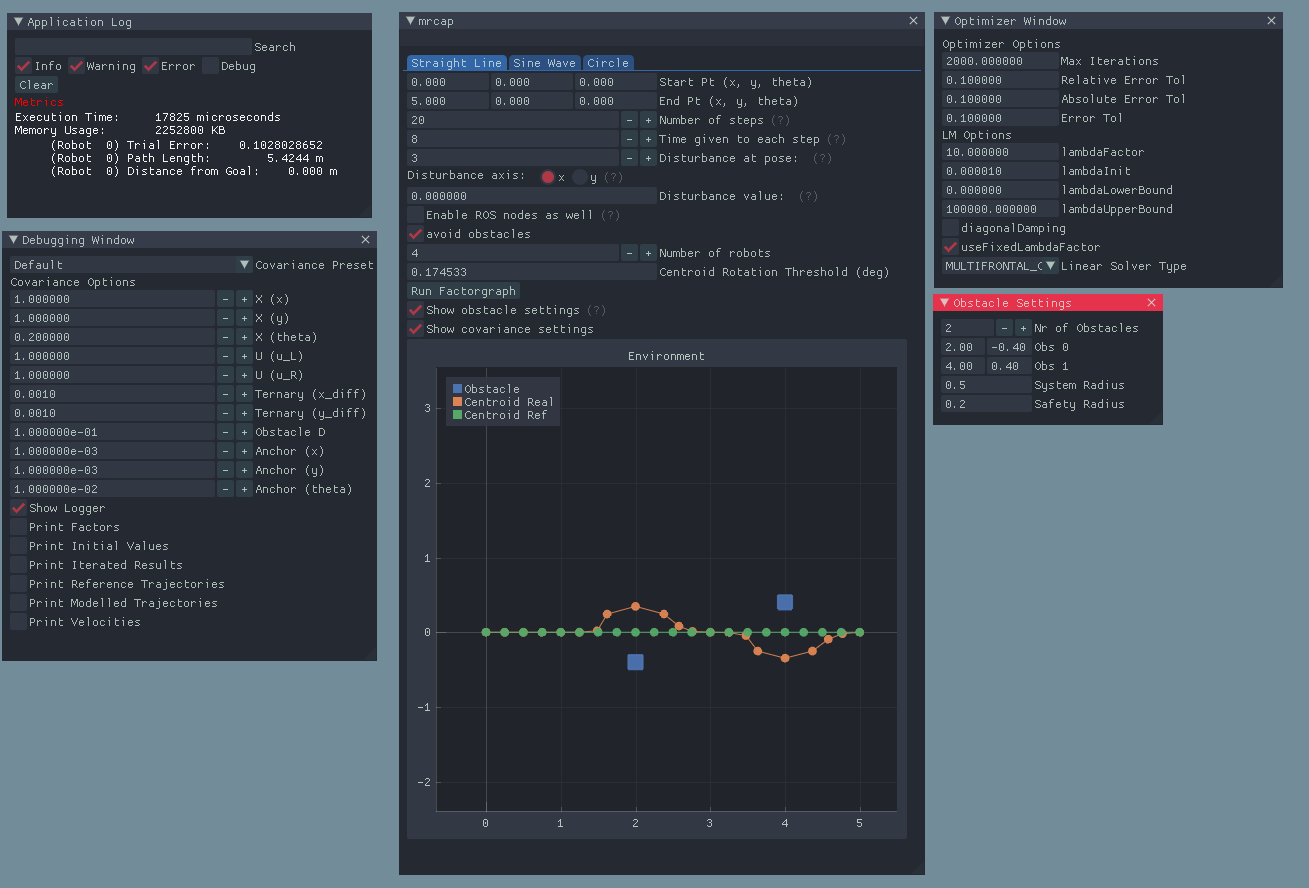

Some images of the demo are shown below:

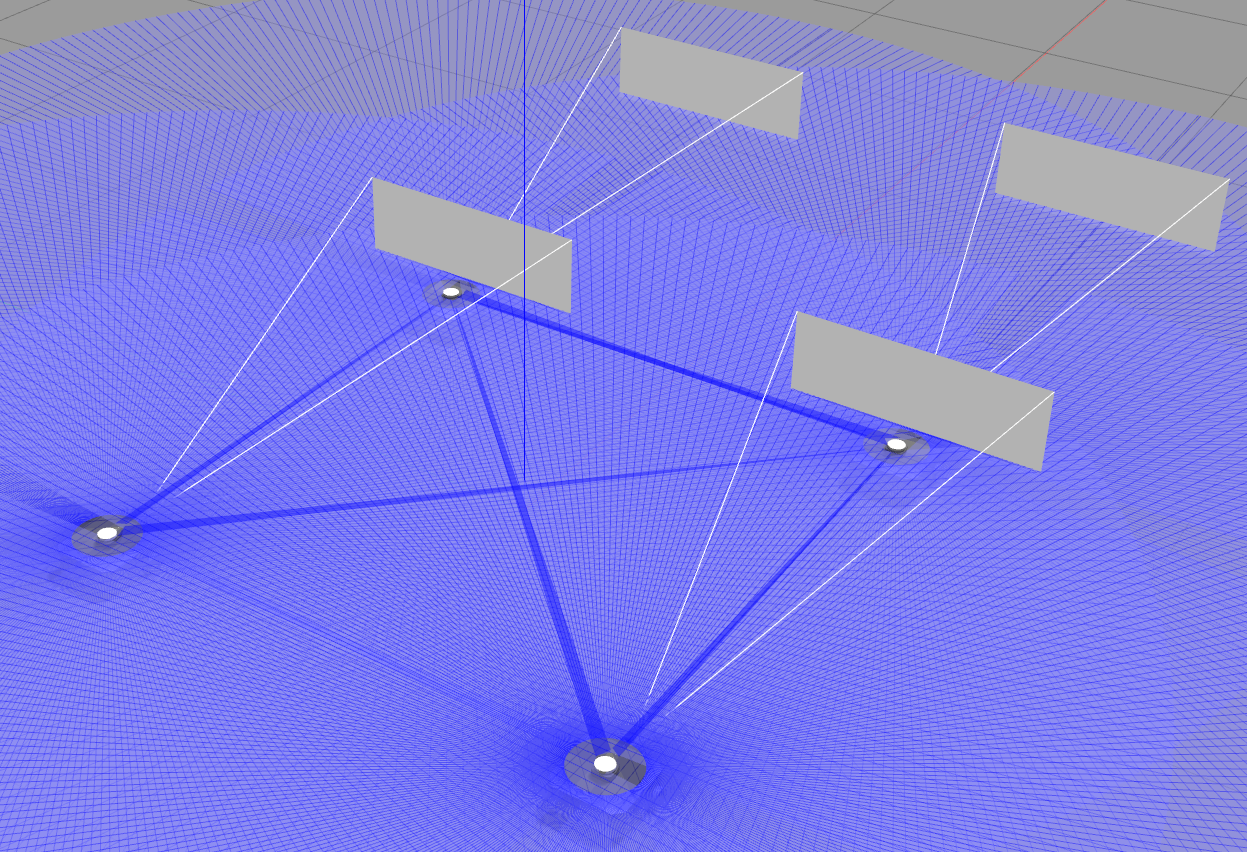

To use the Gazebo simulation, first install Gazebo and ROS2. I highly recommend using a custom ROS2 Gazebo world for multi-robot simulation I developed alongside this project. It can be found here. This will allow you to easily launch multiple robots in Gazebo, and to control them using ROS2.

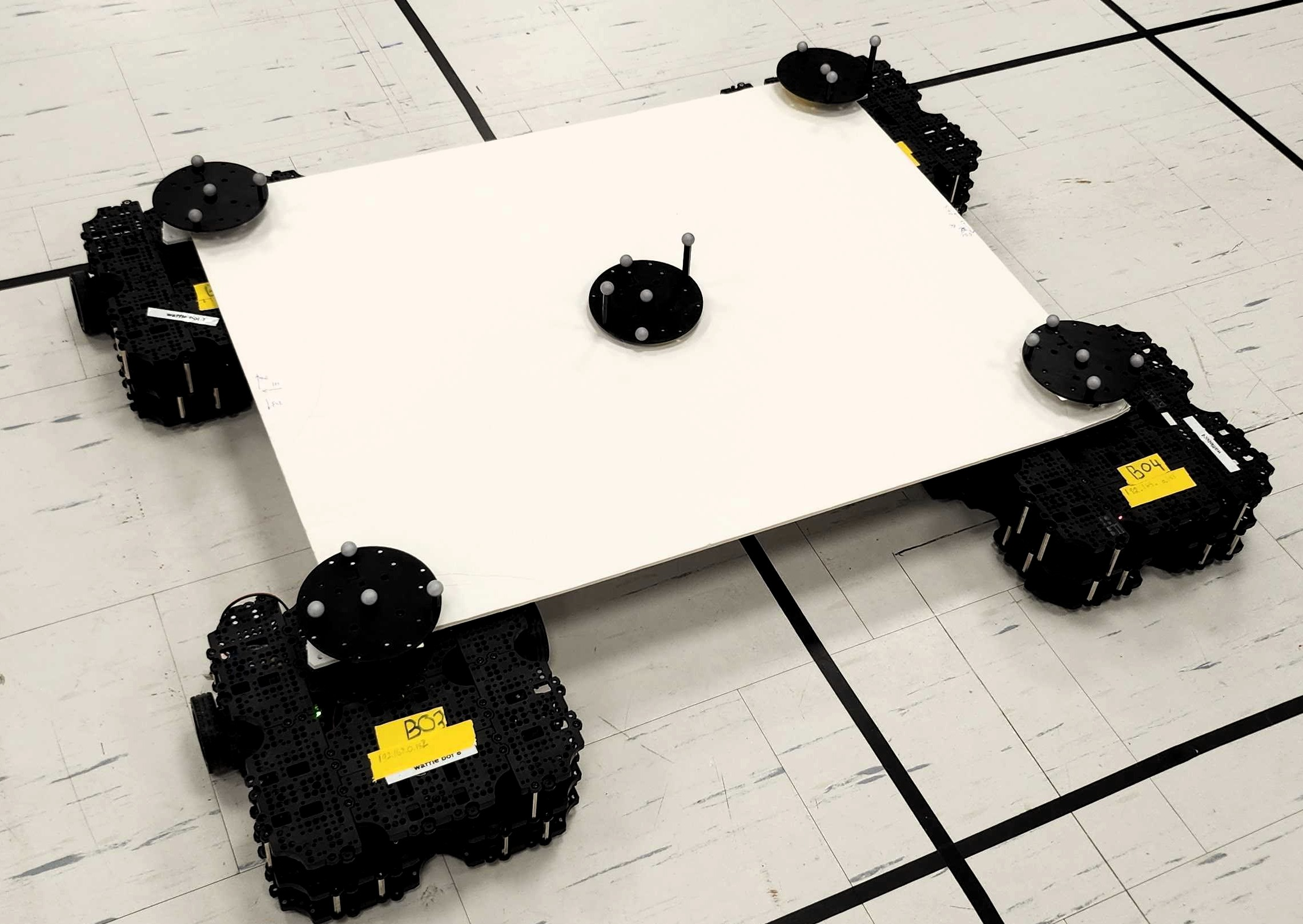

Finally, to use the algorithm on real robot systems is simply a matter of sim2real. Simply remap the topics to the real robot topics, and you're good to go! See include/mrcap/ROSCommunications.h for details regarding the topics subscribed and published to.

In our experimentation, we published robot velocites to /B0n/cmd_vel where n is the robot number. We used a Vicon motion capture system to obtain robot positions, and subscribe to the /vicon/B0n/B0n topics. You can simply substitute this with your localization stack of choice.
