Smart Video Doorbell | Product Design & SolidWorks 3D CAD Modeling

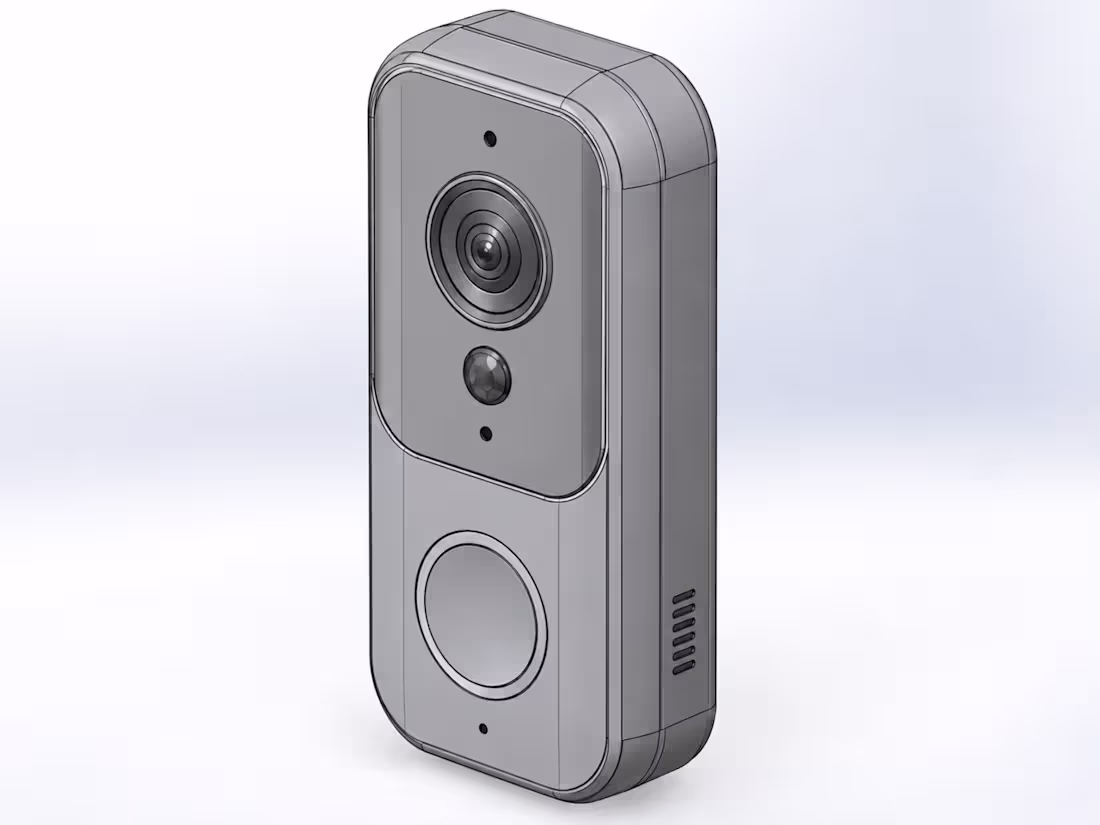

Designed and developed a smart video doorbell enclosure in SolidWorks, covering the product form, housing structure, component layout, mounting system, and detailed manufacturing drawings.
The design features a compact 52 × 32 × 140 mm enclosure, rounded housing geometry, integrated camera and sensor openings, illuminated doorbell button, speaker vents, USB-C interface, and rear mounting points.
Work included:
1. 3D CAD modeling in SolidWorks
2. Smart doorbell enclosure and housing design
3. Front/rear housing development
4. Camera lens and sensor integration
5. Internal component and PCB layout
6. Mounting hole and bracket design
7. Speaker/ventilation grille detailing
8. Exploded assembly visualization
9. Section and orthographic views
10. Detailed manufacturing drawings with dimensions
11. ABS plastic enclosure development
Design for assembly and component fit The final CAD package communicates both the product's exterior design and internal architecture, making it suitable for engineering review, prototyping, and further manufacturing development.
3
285
USB-C Hub Product Design | SolidWorks CAD, Assembly & Technical Drawings

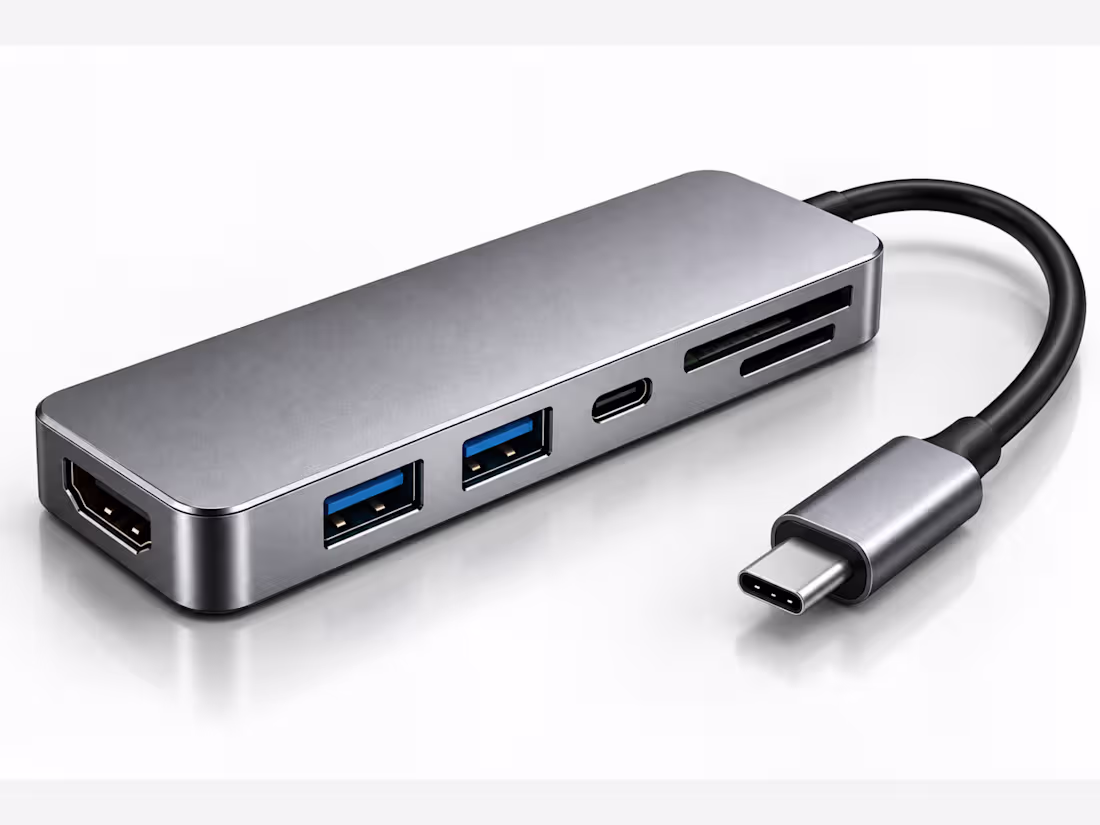

Developed a compact USB-C hub in SolidWorks with a focus on enclosure design, port placement, internal PCB integration, and assembly structure.
The project includes detailed 3D CAD modeling of the aluminum enclosure, PCB and connector layout, USB-A and USB-C ports, HDMI interface, SD/TF card slots, cable and USB-C plug, along with an exploded assembly showing how the components fit together.
Technical documentation includes orthographic views, section views, detailed port dimensions, material and finish specifications, tolerances, and assembly details.
Skills: SolidWorks, Product Design, Mechanical CAD, Industrial Design, 3D Modeling, Assembly Design, Enclosure Design, PCB Integration, Technical Drawings, Section Views, Exploded Views, DFM Documentation.
