This project details the mechanical engineering, design optimization, and additive manufacturing workflow of a Modular Precision Tube Drilling Jig. Engineered for high-repeatability metal fabrication, this two-piece mechanical fixture simplifies drilling concentric, cross-axis holes into square tubing while eliminating tool walk and manual layout errors.

Role: Lead Tooling Engineer & Additive Manufacturing Specialist

Software & Hardware: SolidWorks, FDM 3D Printing (Additive Prototyping)

Key Focus Areas: Fixture design, FDM tolerance tuning, modular mechanical interfaces, and physical prototype validation.

Drilling precise through-holes in square metal tubing without a dedicated milling setup presents several key fabrication obstacles:

Drill Bit Wandering: Standard twist drills tend to skate off flat and curved steel faces, leading to misaligned holes.

Alignment Repeatability: Hand-marking hole centers introduces cumulative human error across long production runs.

Material Distortion: Heavy clamping force on thin-walled square tubing can bow or deform the stock during drilling operations.

The project progressed through a systematic engineering workflow from CAD concept to hands-on testing.

25 × 25 mm Square-Tube Interface: Engineered with precise wall offsets to slide securely over standard $25\text{ mm} \times 25\text{ mm}$ square tubing, ensuring concentric alignment along the central axis.

Reinforced Drilling Zone: Solidified the surrounding material wall thickness to absorb lateral drill forces without flexing.

Clamp-Support Geometry: Formed flat parallel outer surfaces and recessed jaws to allow standard C-clamps or vice grips to lock the jig onto the tube without slipping.

Two-Piece Mechanical Assembly: Split into a modular shell to allow quick setup, teardown, and part swap-outs.

M14 × 2.0 Threaded Drill-Guide Receiver: Integrates a robust $M14 \times 2.0$ internal thread designed to receive hardened steel drill-guide bushings for different hole diameters.

Mirrored Variants: Modelled left-hand and right-hand mirrored versions to accommodate awkward frame geometries and multi-directional drilling configurations.

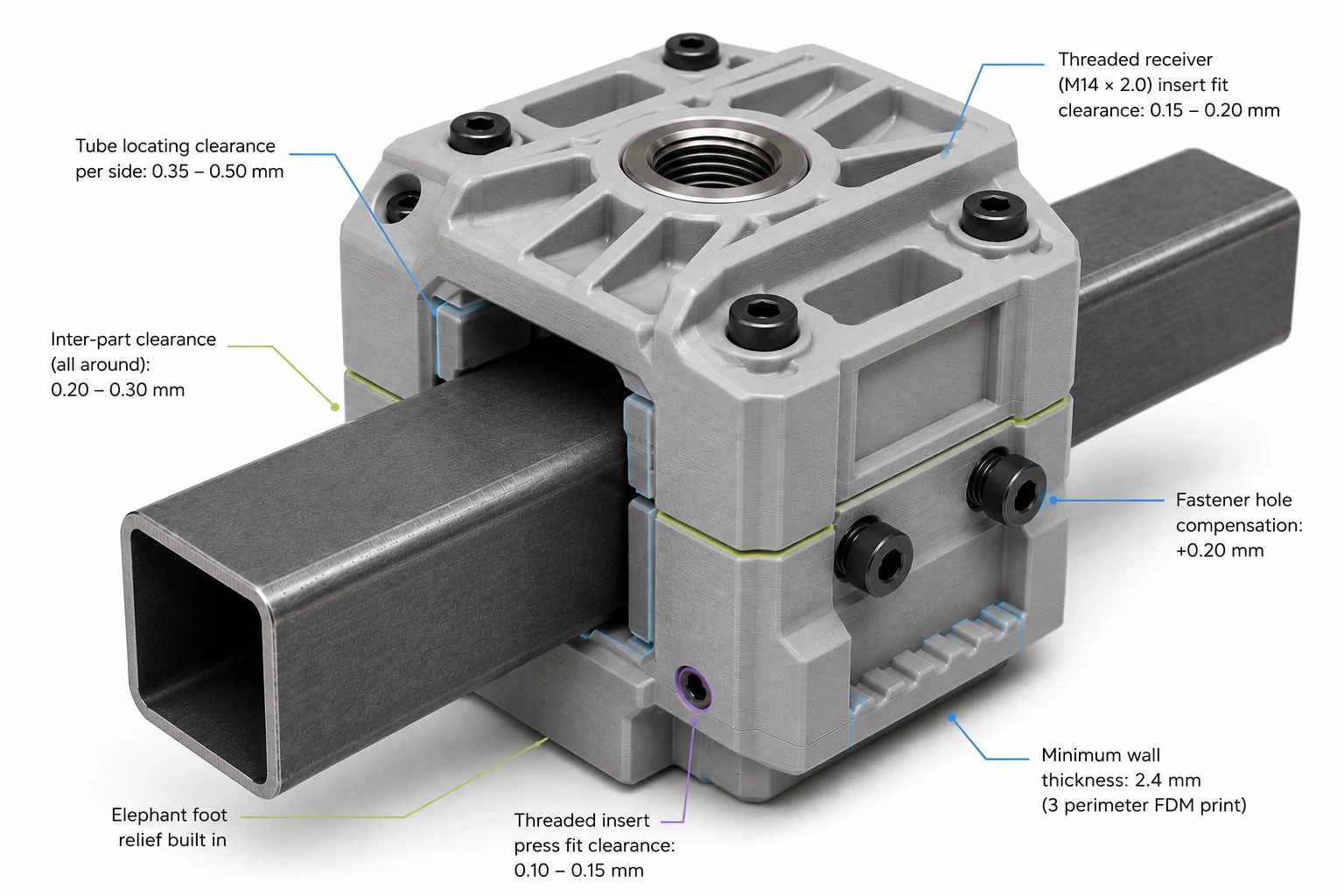

Clearance Calibration: Applied precise offsets to account for FDM polymer swelling and layer line friction, allowing a tight slip-fit on the $25\text{ mm}$ tube without binding.

3D-Printable STL Development: Exported high-density mesh STL files optimized for layer adhesion, high infill density (30%+ wall perimeter support), and zero-support internal threads.

To verify internal alignment prior to physical manufacturing, detailed drawing assets and analytical views were generated:

Section View (Drill-Guide & Tube Interface): Validated that the center axis of the $M14 \times 2.0$ threaded receiver sits perpendicular ($90^\circ \pm 0.05^\circ$) to the centerline of the $25\text{ mm}$ tube.

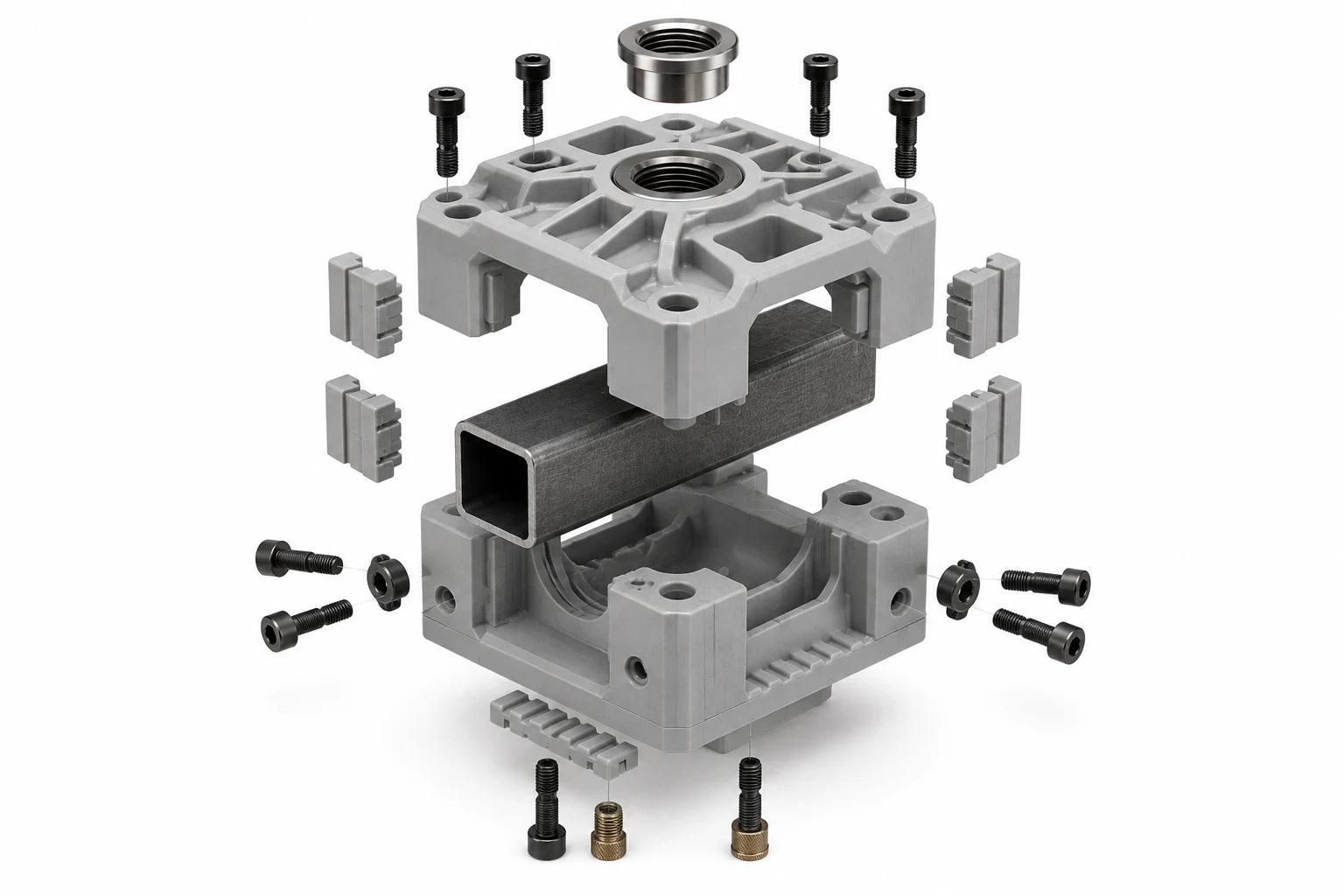

Exploded Assembly: Mapped all modular fasteners, thread interfaces, and split-housing components for easy field maintenance.

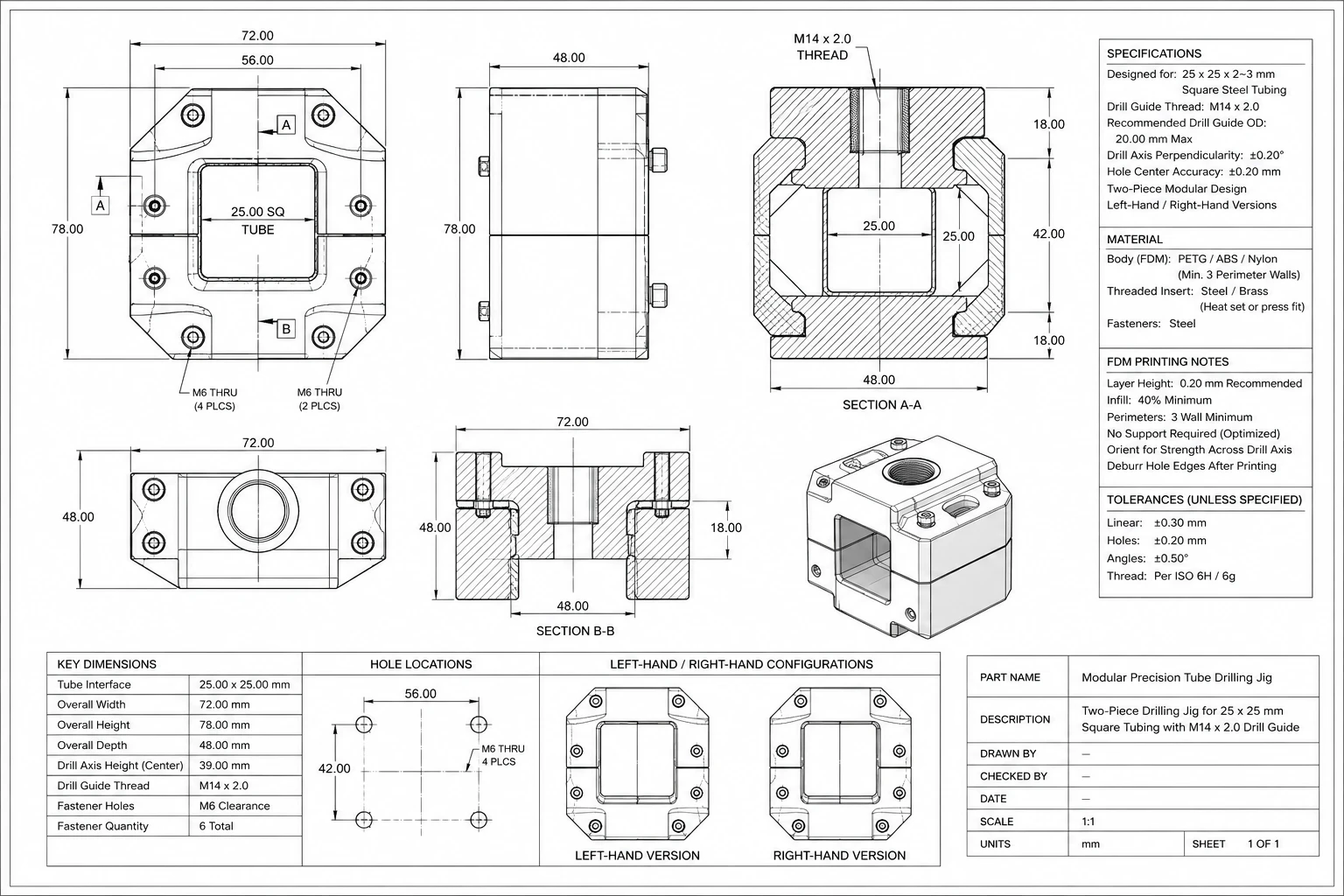

Dimensioned Technical Drawing: Fully dimensioned 2D engineering drawings detailing critical tolerance envelopes, chamfers, and thread specs.

The project concluded with real-world prototyping and empirical fabrication trials:

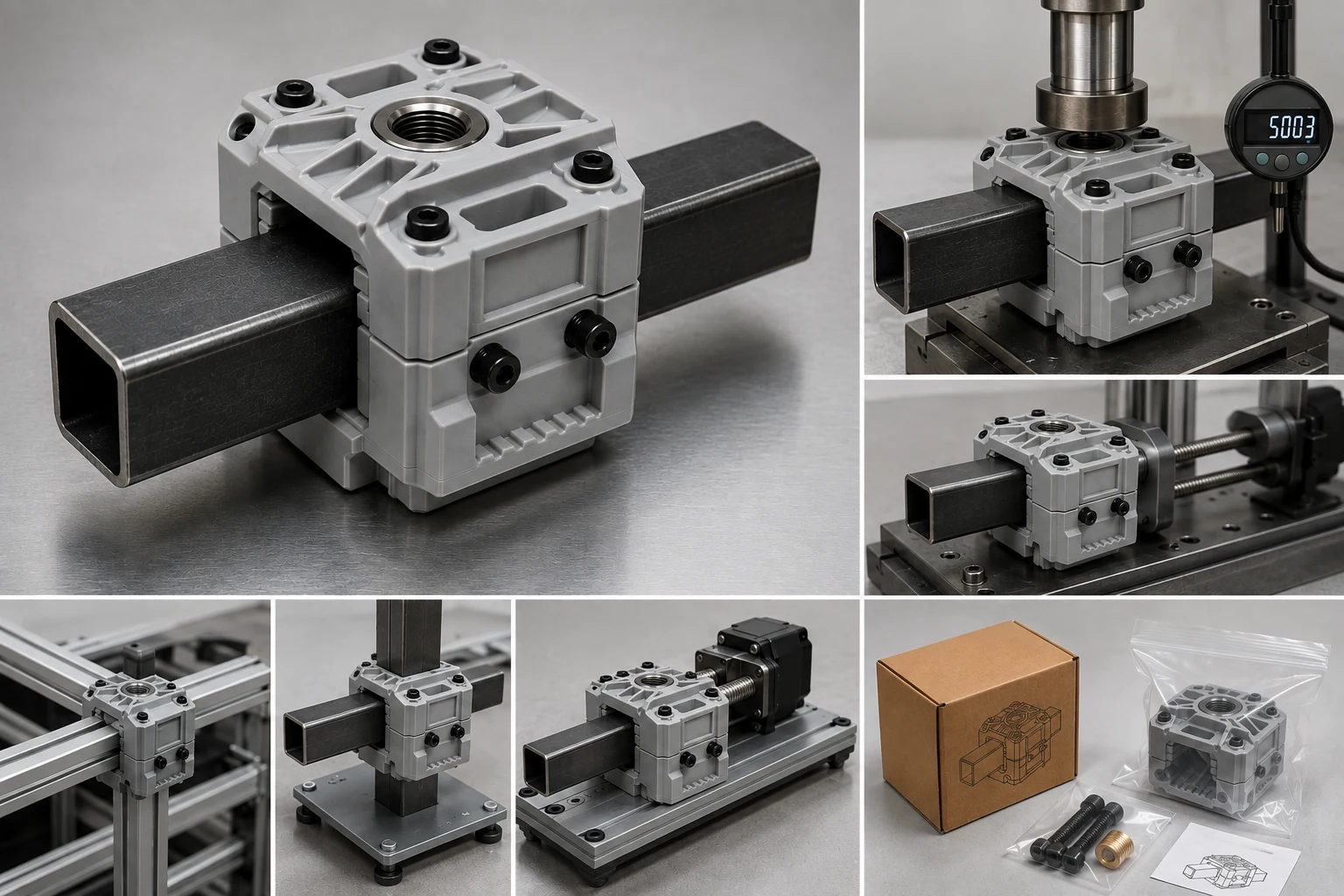

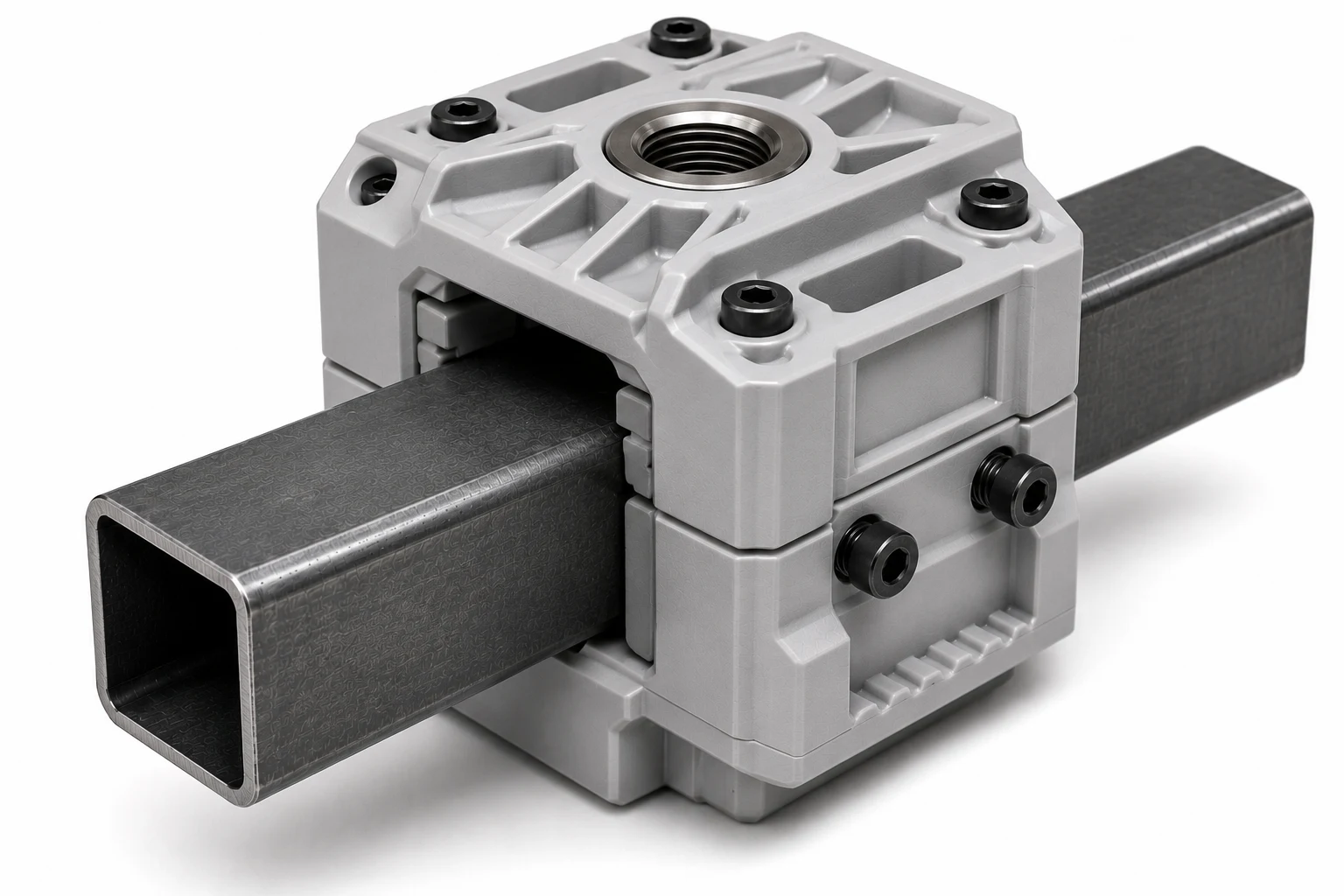

Functional Prototype: Printed the final production model using high-impact polymer material to withstand oil, heat, and physical shop floor use.

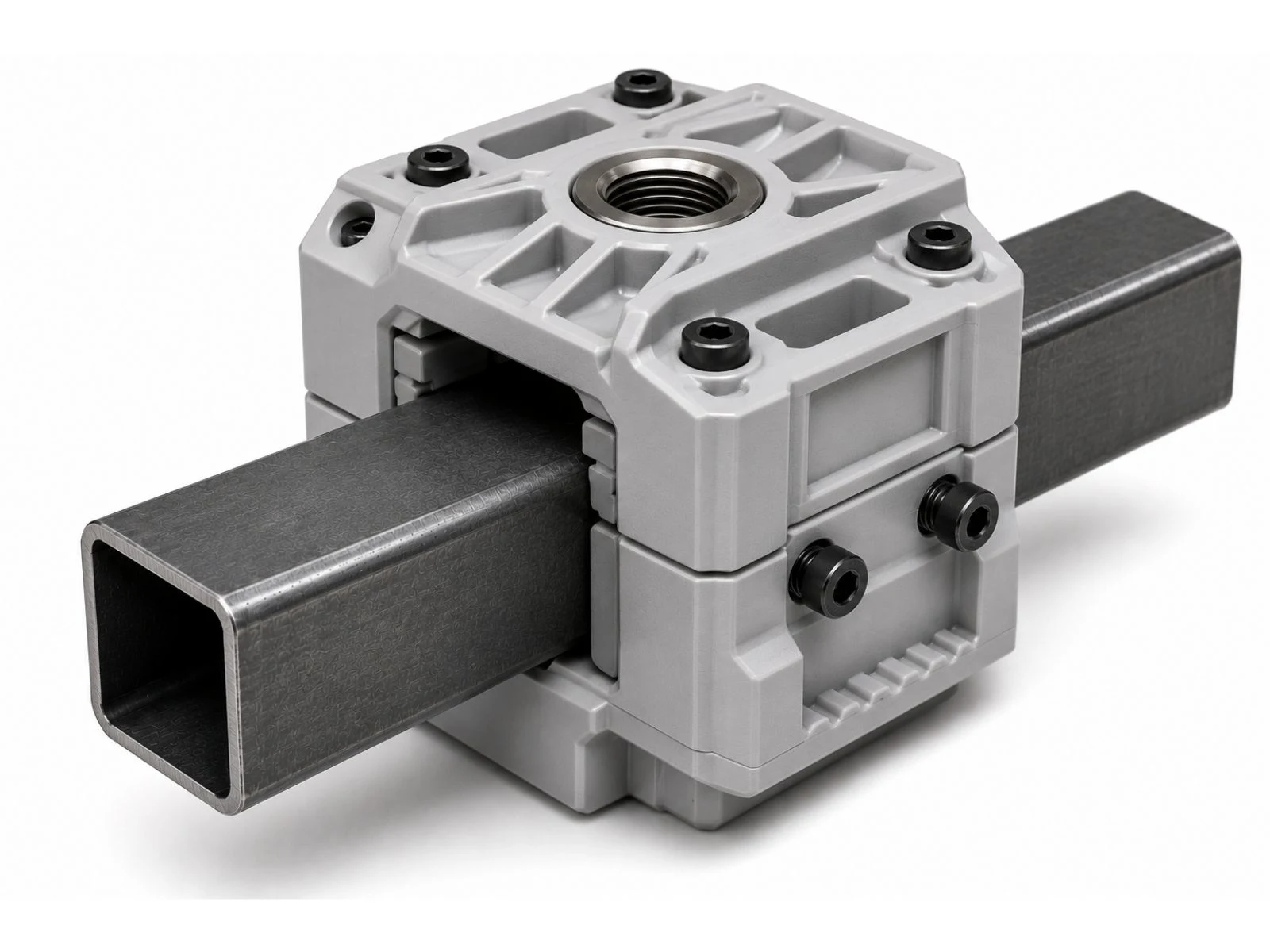

Drilling Test: Clamped the jig onto a raw $25\text{ mm}$ steel tube and performed series drilling tests. The fixture maintained drill-axis positioning with zero slop, proving the $M14$ insert effectively prevented drill-bit wandering.

Successfully produced a low-cost, high-precision shop fixture that turns standard drill presses or hand drills into accurate hole-punching setups.

Demonstrated an efficient FDM additive manufacturing pipeline, from initial CAD modeling and tolerance tuning to a fully functional physical tool.
