3D Modeling for Mechanical Component Production
0
Industrial Designer
3D Modeler
AutoCAD
Autodesk 3ds Max
This grill was designed hand in hand with the customer's requests for all the features to be included in the final product. Accuracy was key to designing this grill, as it needed to be collapsible for transportation purposes.

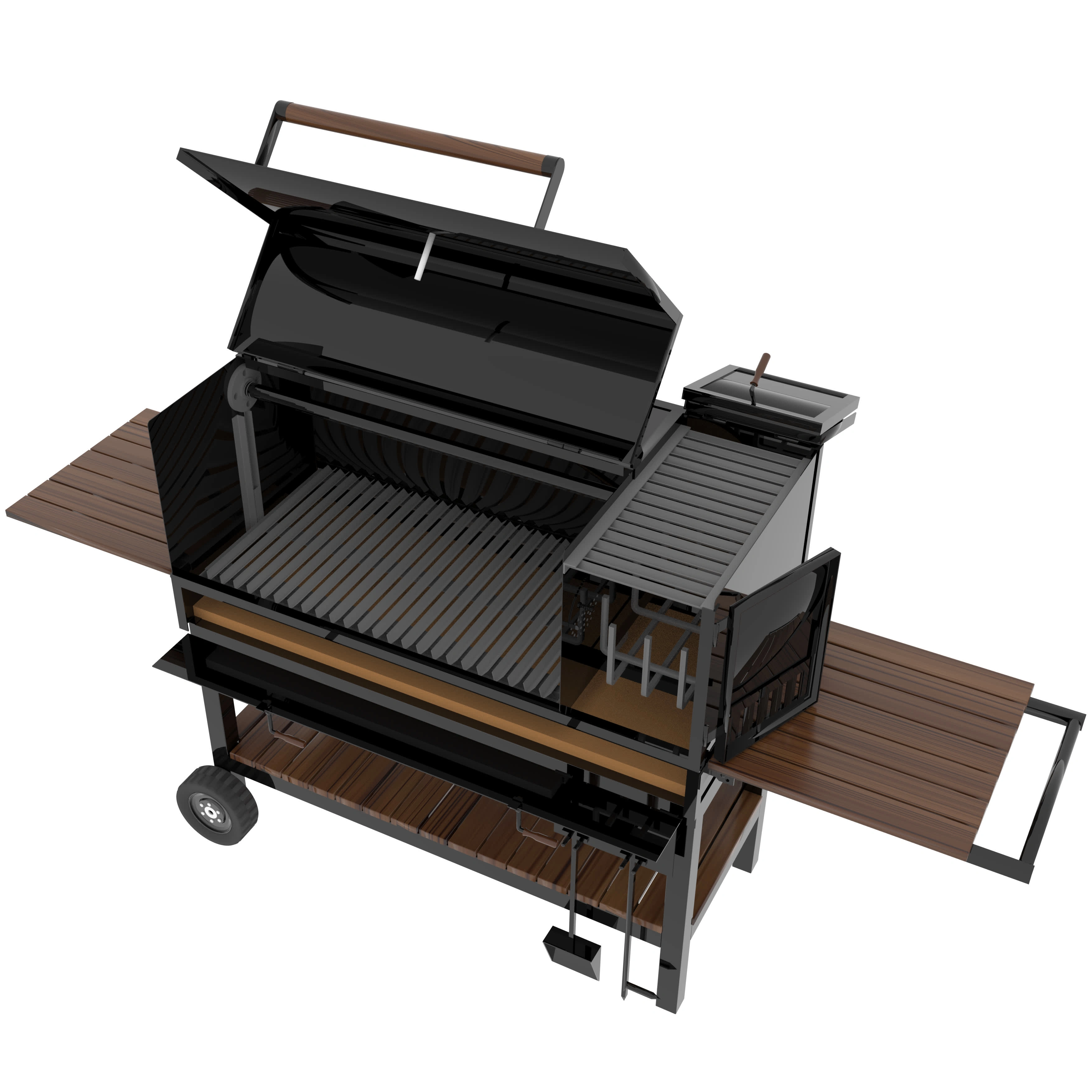

Final render - Processed in 3DS Max

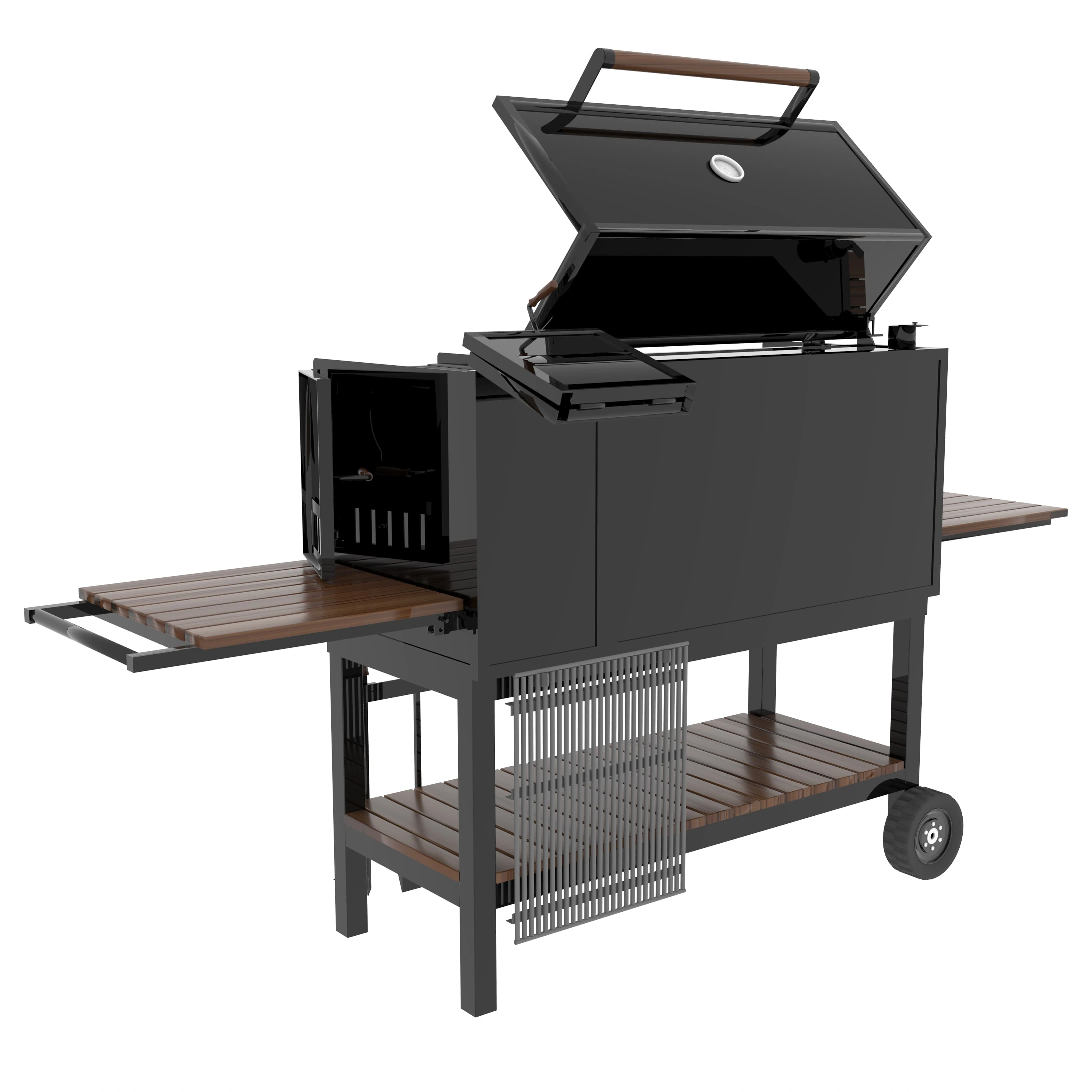

Final render - Processed in 3DS Max
Test render to show the client proof of concept
Test render to show the client proof of concept
Production Drawings of closed product- (All dimensions and annotations have been removed to protect the product's design)
Production Drawings of opened product- (All dimensions and annotations have been removed to protect the product's design)
Isometric Production Drawings of product- (All dimensions and annotations have been removed to protect the product's design)
Final product fabricated in-house based off the production drawings
Final product fabricated in-house based off the production drawings
Like this project
0
Posted Dec 18, 2024
I designed this grill hand in hand with the customer include all the features required in the final product. Accuracy was key, as it needed to be collapsible.
