Commercial Building Renovation Management by Rick Menjivar

Commercial Building Renovation Management

Rick Menjivar

Industrial Designer

3D Modeler

AutoCAD

This Irish Themed Pub was designed based on hand sketches and inspiration pictures the client had. I visited the jobsite and took measurements of the allotted space and once we had a floor plan ready, the client and I worked hand in hand to deliver custom furniture to be fabricated based on the shop drawings produced.

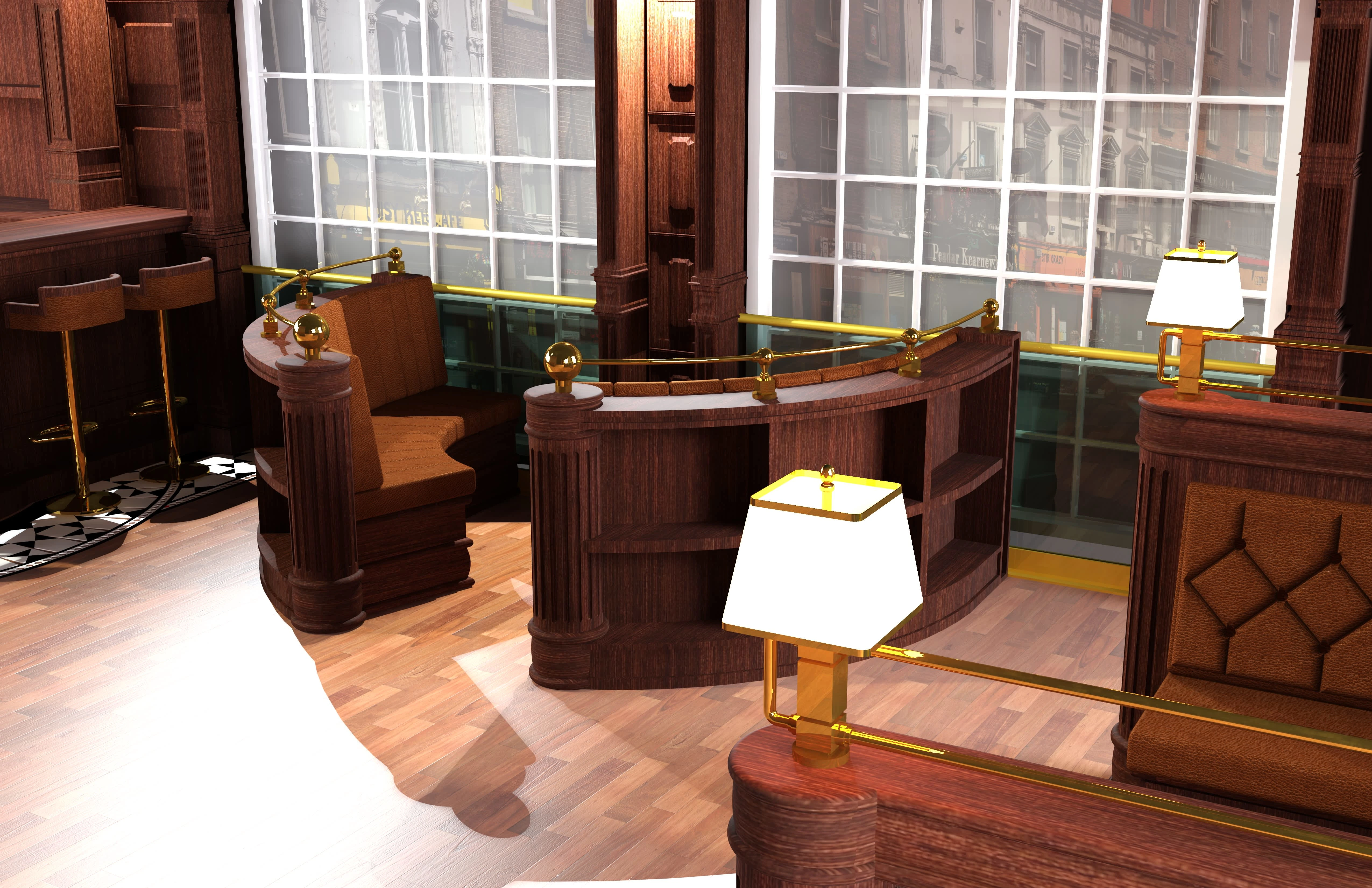

High Resolution Render using accurate illumination of the light fixtures to be used in the project.

Leather bench showcasing textures and material combinations that show grain direction for construction purposes.

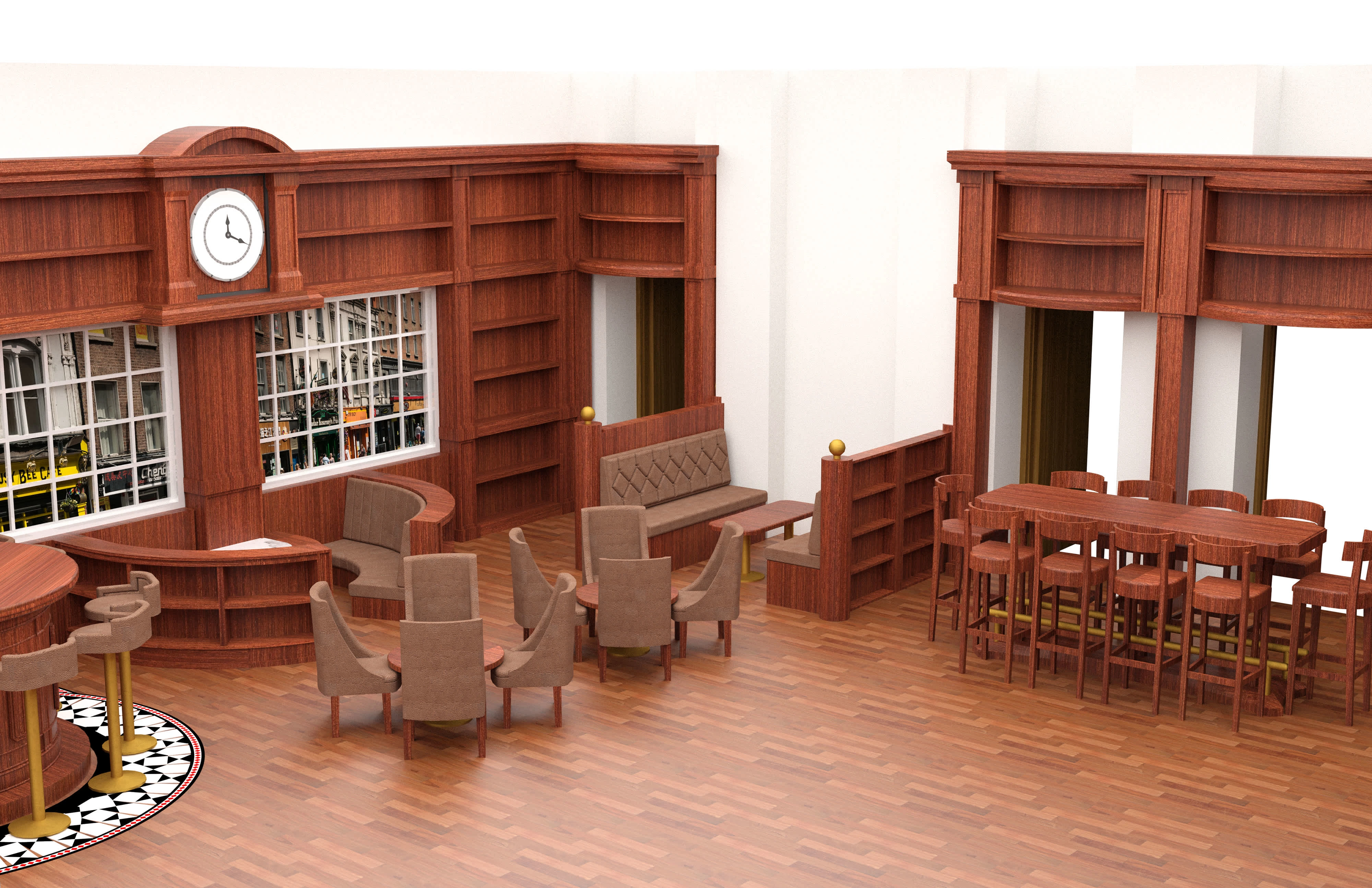

Quick render produced after initial revision of scope of work

Colorized Plan view showcasing the furniture distribution

This is a sample screen recording of the Autodesk environment that was uploaded to the web for the client to navigate and explore the progress. The items marked in red were existing elements that had been restored and were going to be possibly included in the design.

This is a sample screen recording of the Autodesk environment that was uploaded to the web for the client to navigate and explore the progress. This is the second iteration of the space, where the original elements have been deleted in favor of more modern applications.

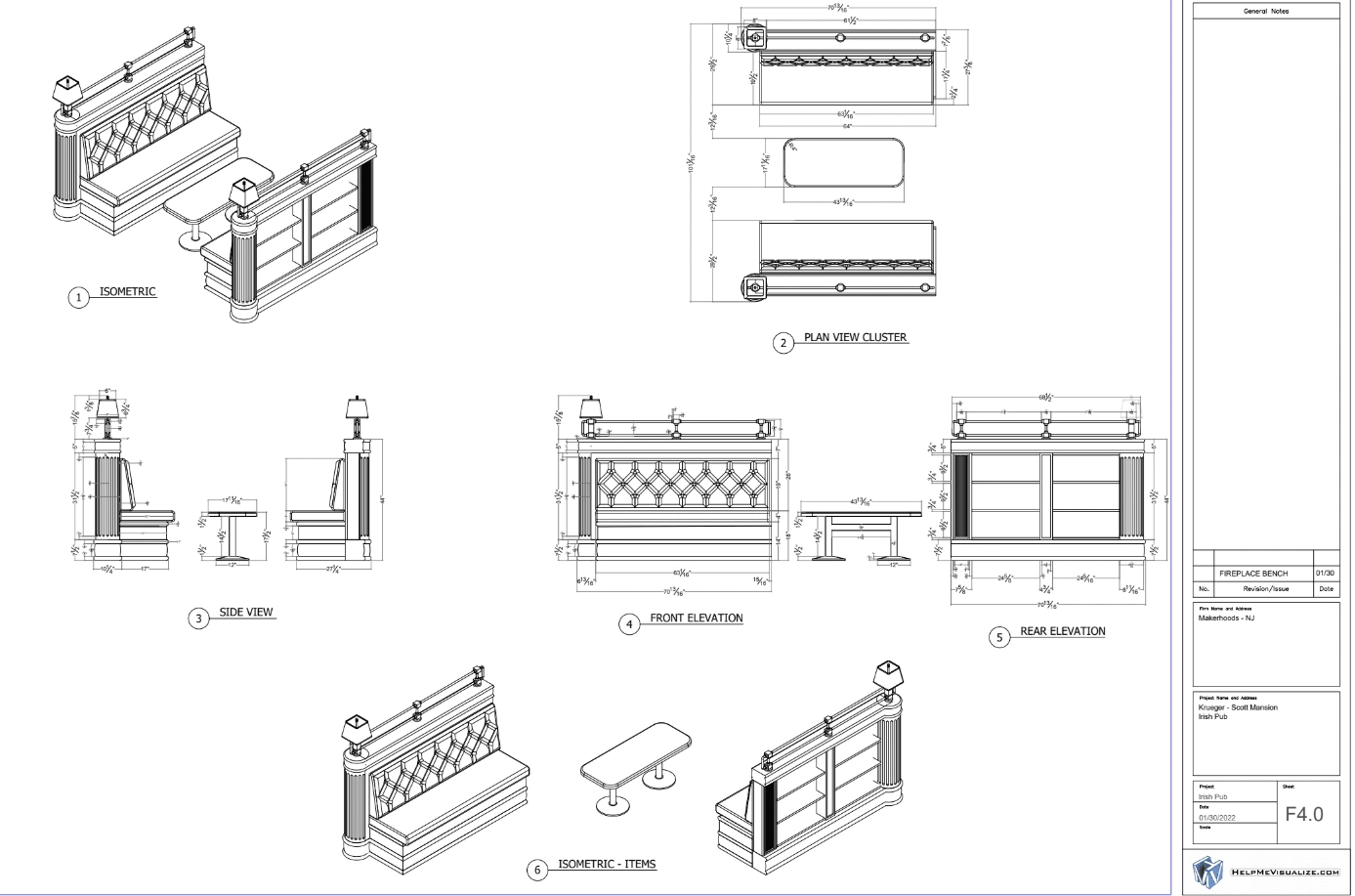

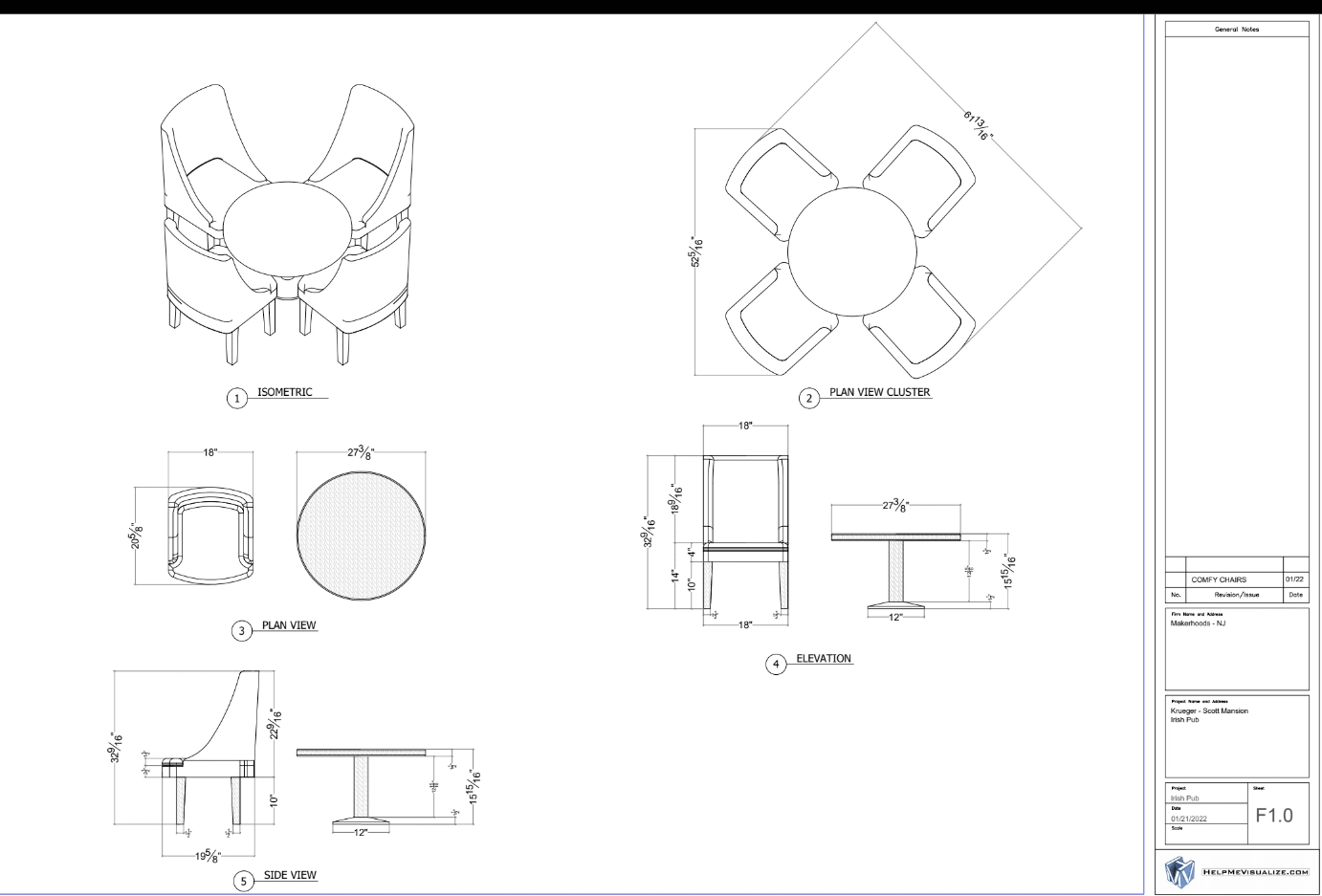

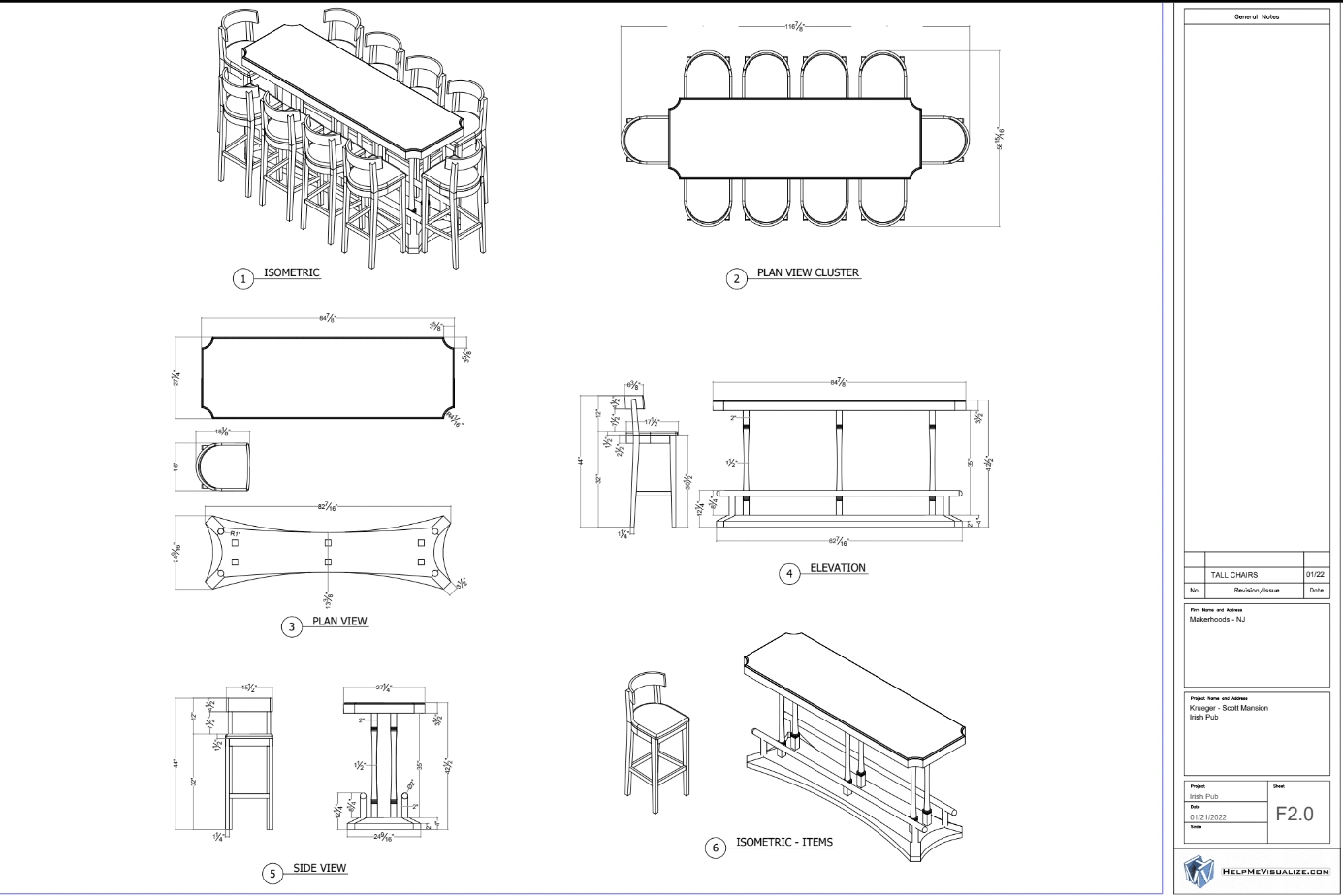

This is a sample of the custom furniture drafting

Like this project

Posted Dec 18, 2024

I based this design on a set of hand sketches the client had. All custom furniture was designed and put into technical drawings to be fabricated and installed.
