3D Modeling
Rick Menjivar

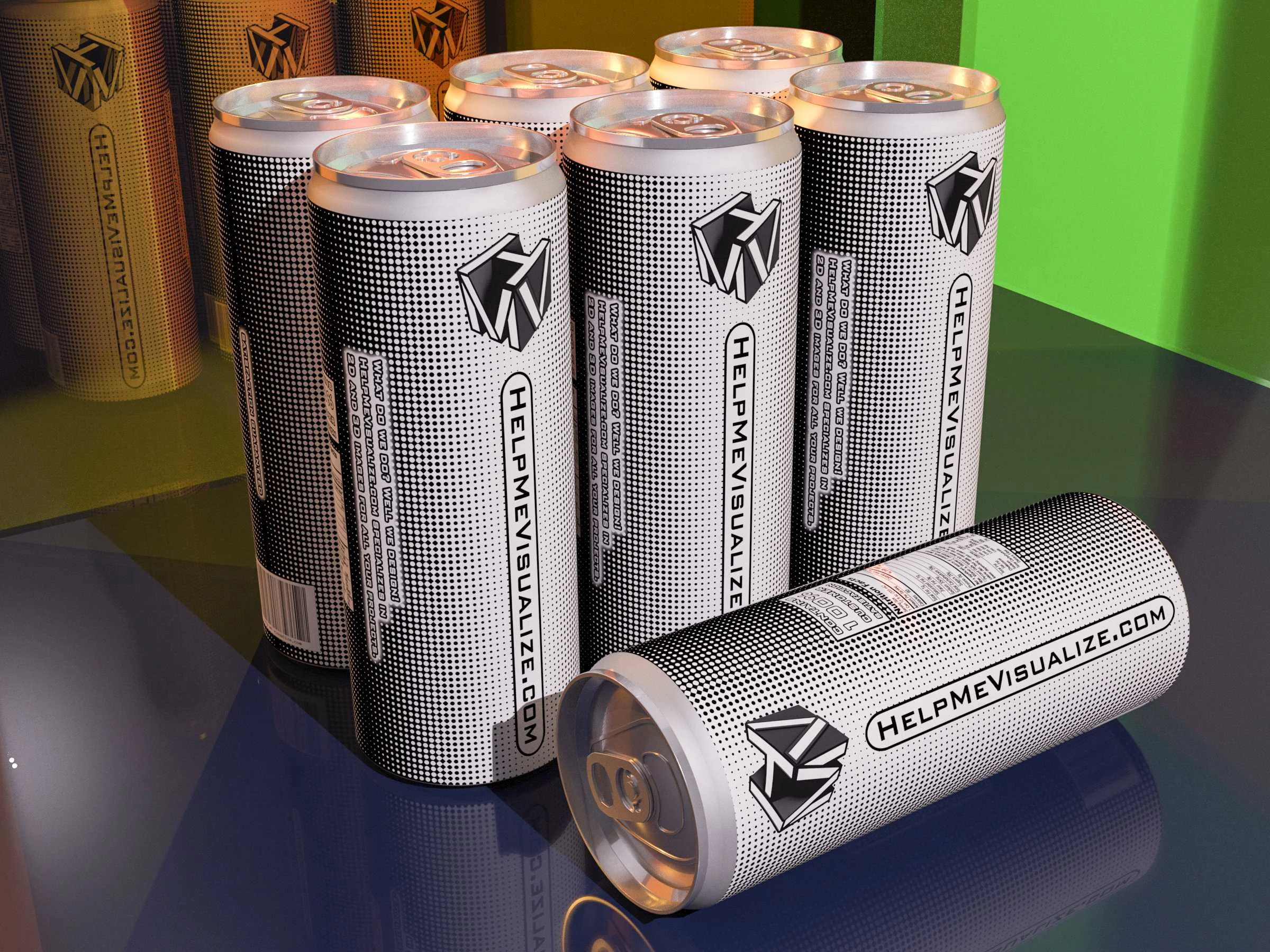

These cans were modeled based off of measurements of a real life can. The label and print was designed in photoshop all from scratch and then wrapped in Autocad to give it the proper lighting when combined with the display environment.
Ear Buds Prototype constructed and colorized for marketing purposes

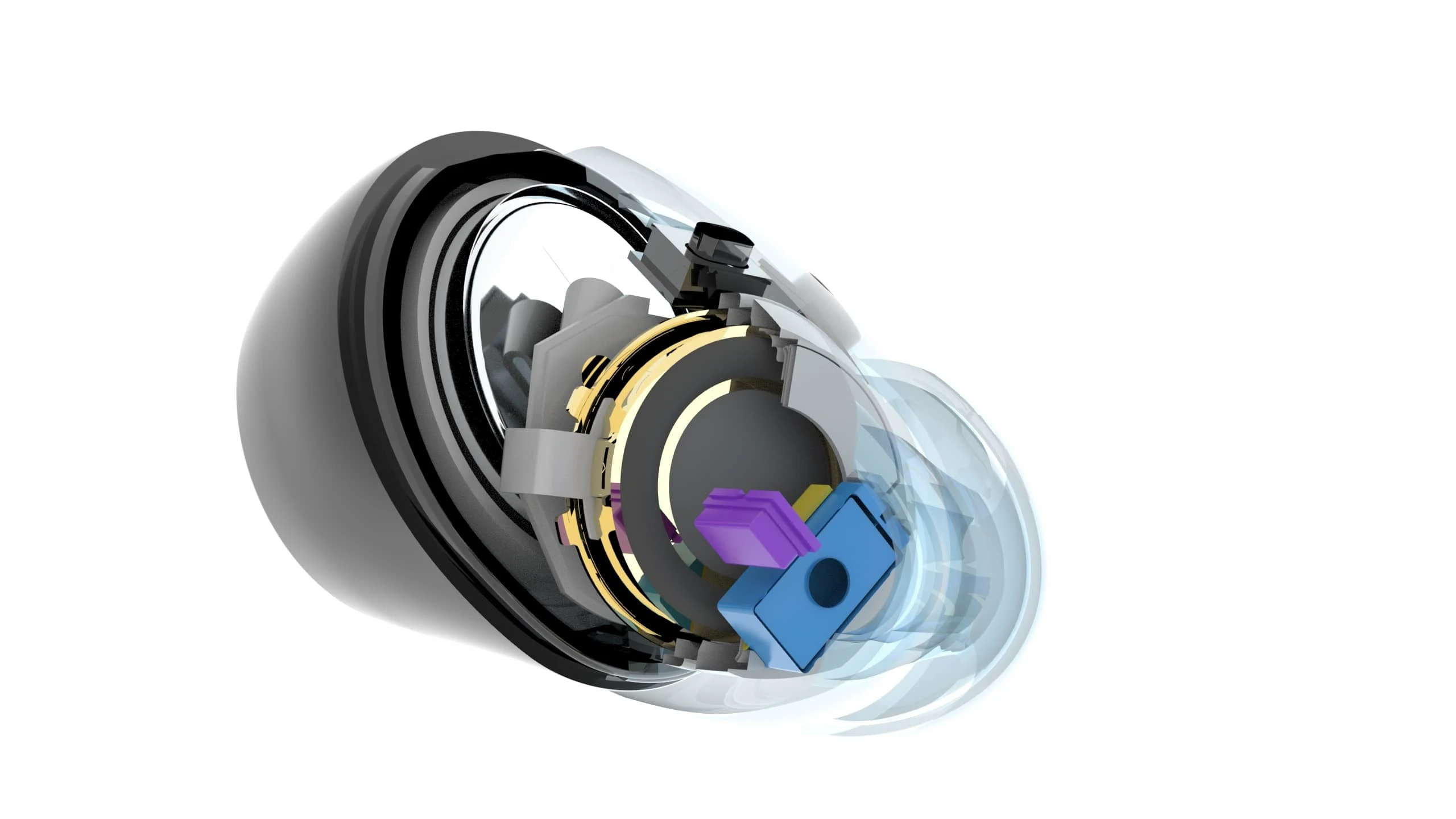

Sectioned View of Ear Buds
Exploded view of all components in the Ear Buds
Mechanical Frame For All Wheel Drive vehicle prototype
Rear view of For All Wheel Drive vehicle prototype showcasing a boomerang suspension system
Detail close up of shackle anchor points for leaf suspension on chassis and braking system
Beer Mug concept for boutique bar
3D Printed sample of Beer Mug design
This Fantasy Axe was designed for a character using only some inspiration photos. The 3D model was originally generated in Autocad and rendered in 3DS Max to achieve a higher level of detail in the textures and colors.
This Fantasy Axe was designed for a character using only some inspiration photos. The 3D model was originally generated in Autocad and rendered in 3DS Max to achieve a higher level of detail in the textures and colors.
This Fantasy Axe was designed for a character using only some inspiration photos. The 3D model was originally generated in Autocad and rendered in 3DS Max to achieve a higher level of detail in the textures and colors.
After an initial review, the tonality was changed to better suit the character's persona and this is the final result.
Like this project
Posted Jan 21, 2025
These models were all created using Autocad to guarantee production accuracy. Once the model is complete it can be rendered in Autocad or 3DS Max.
