Building service system illustration

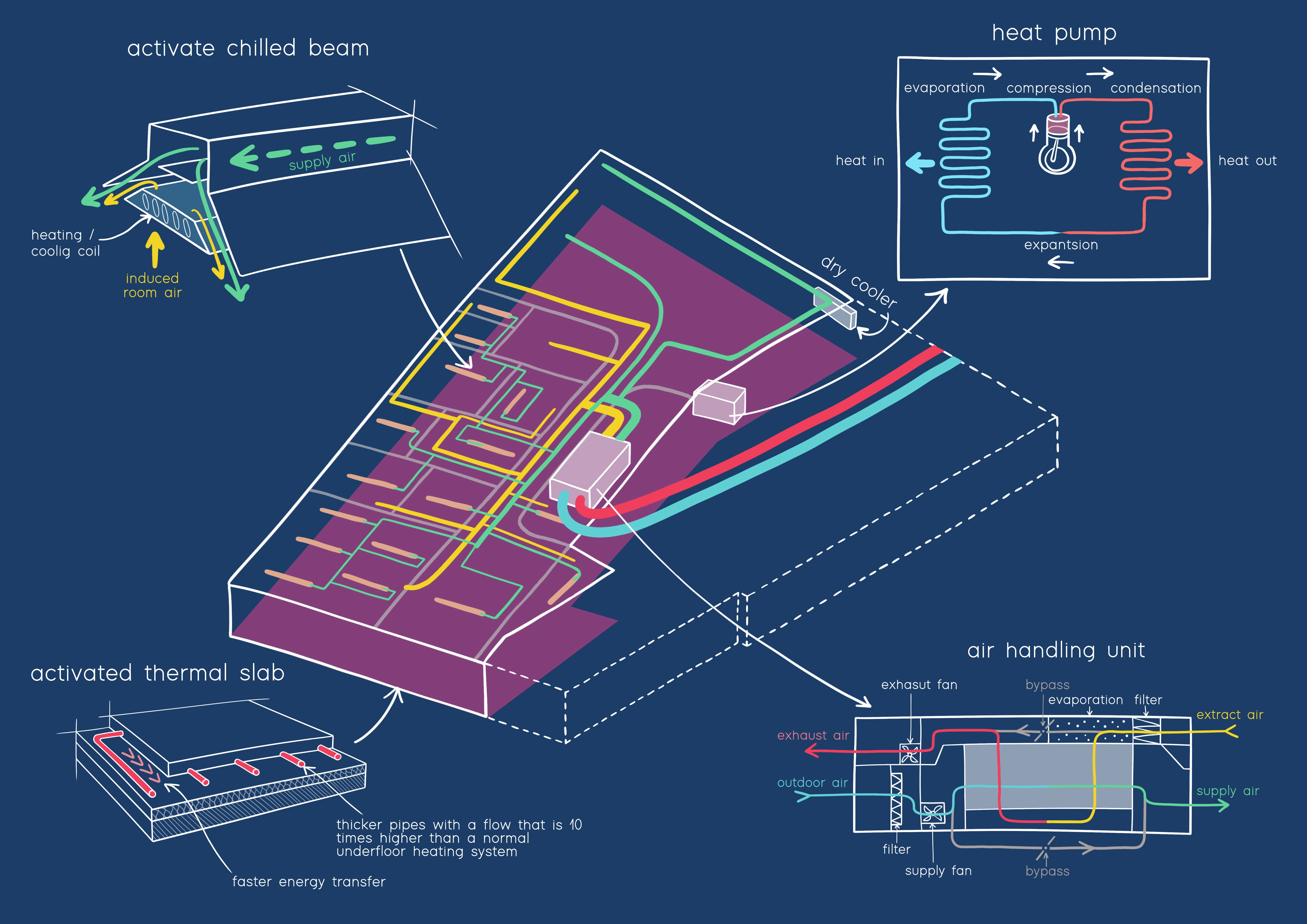

Context A complex building-services system needed to be communicated clearly through a set of technical illustrations.

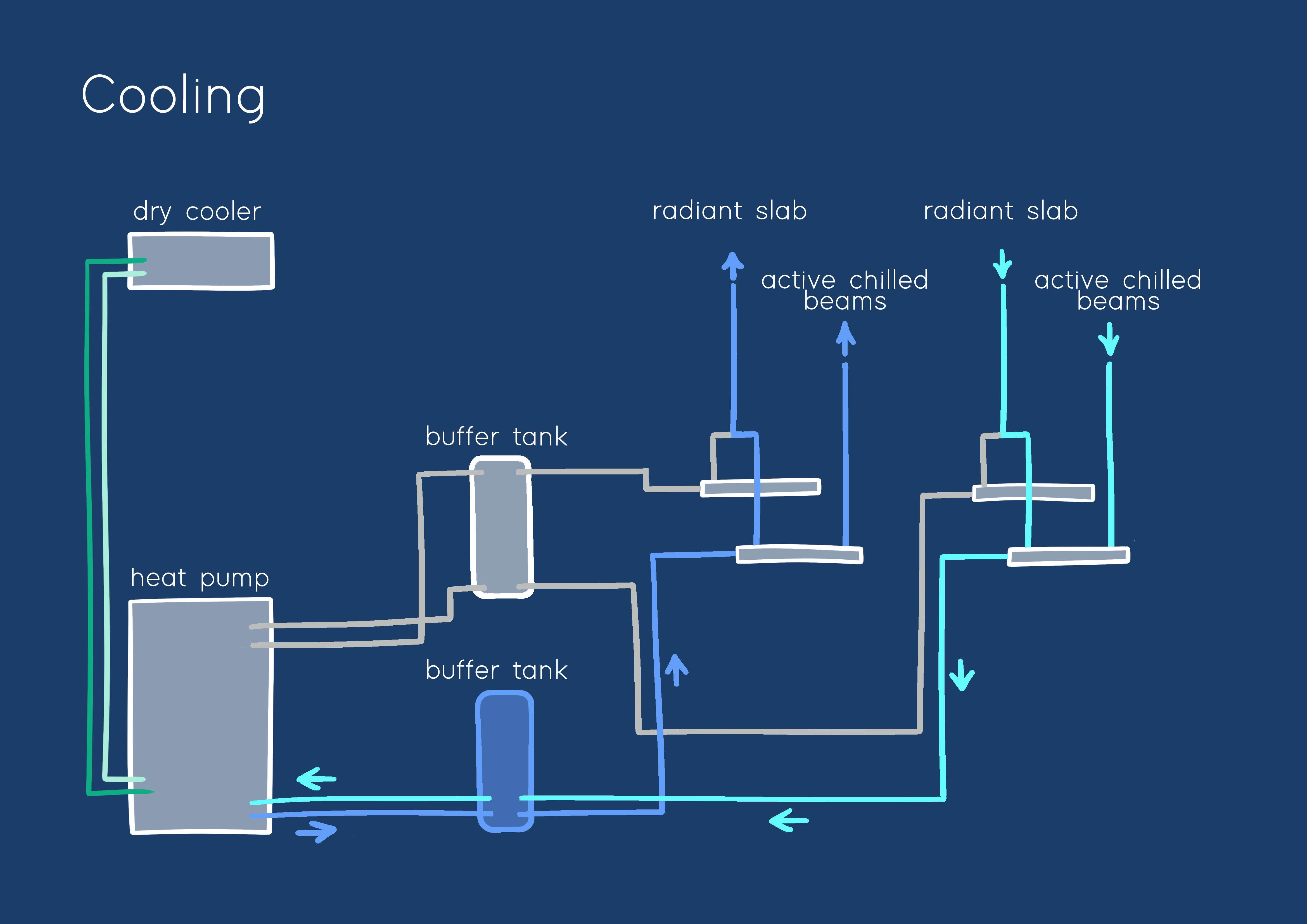

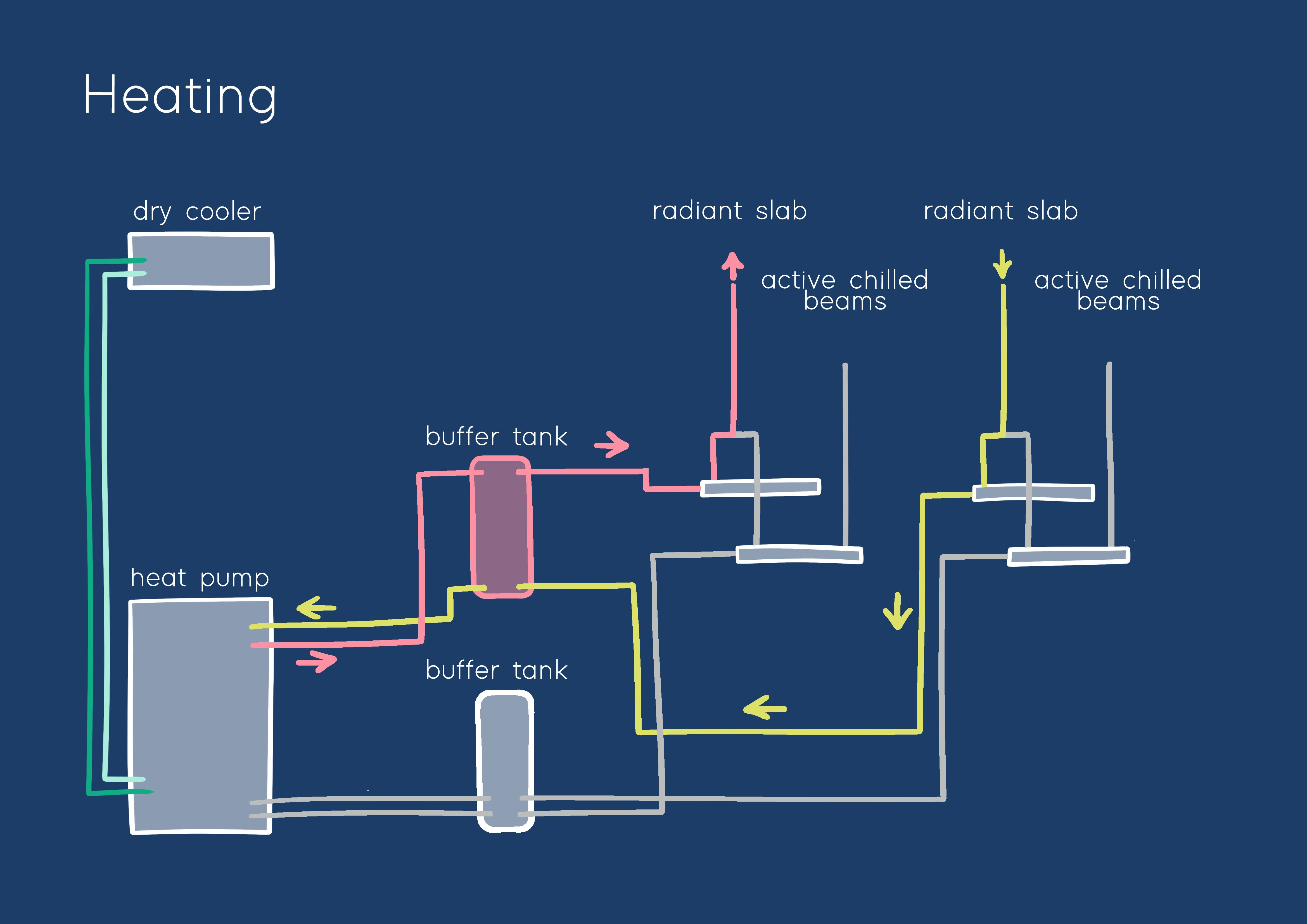

My role I developed the system overview and operating-mode diagrams, simplifying the relationships between the heat pump, storage, radiant slabs and active chilled beams.

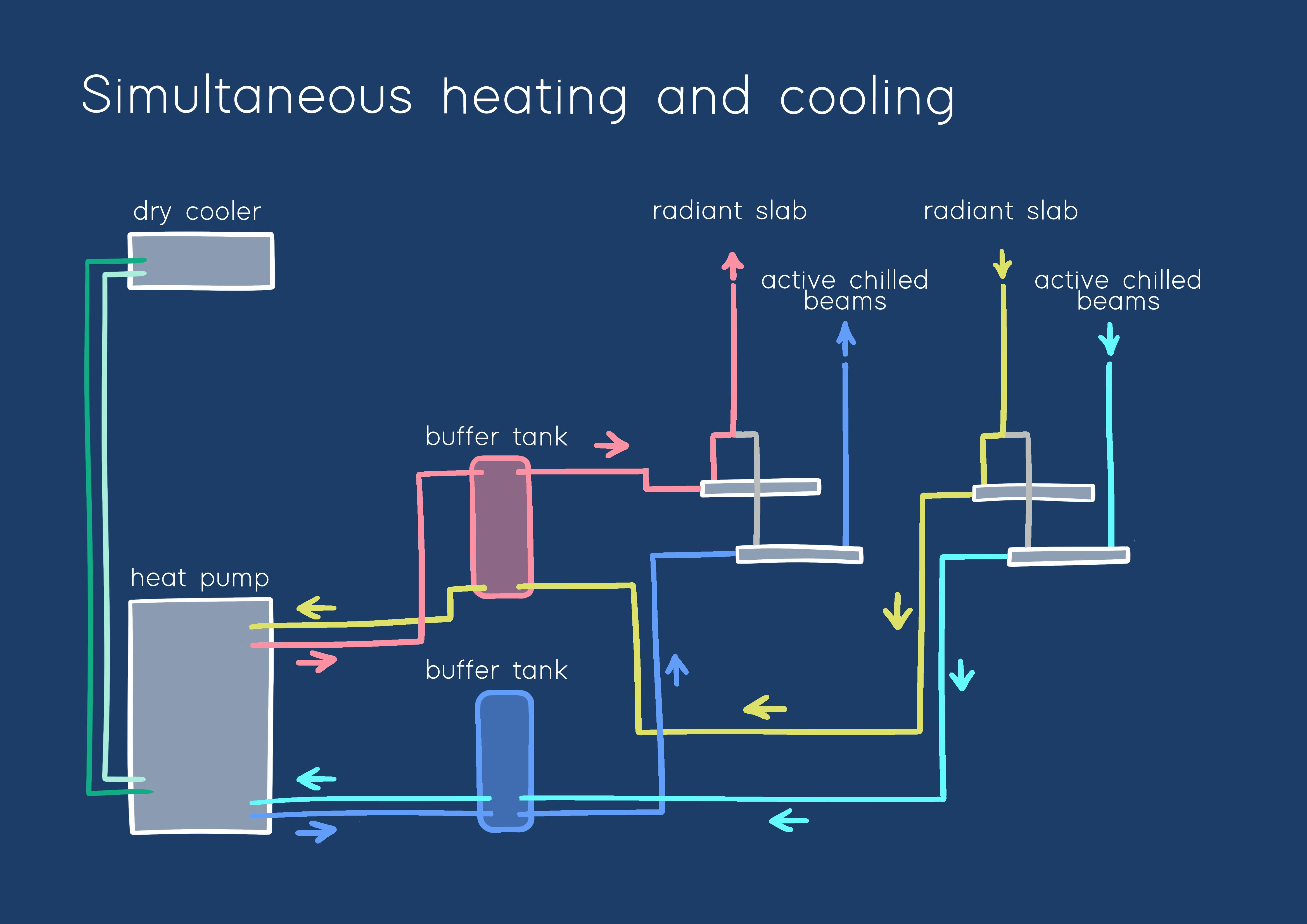

Outcome The final visuals created a consistent visual language for explaining heating, cooling and simultaneous operation.
