API Integration & Workflow Automation

Many small teams copy new orders from their shop into the CRM by hand, then tell sales in chat. It is slow, error-prone, and breaks whenever an API rate-limits or goes down. This demo automates that hand-off end to end.

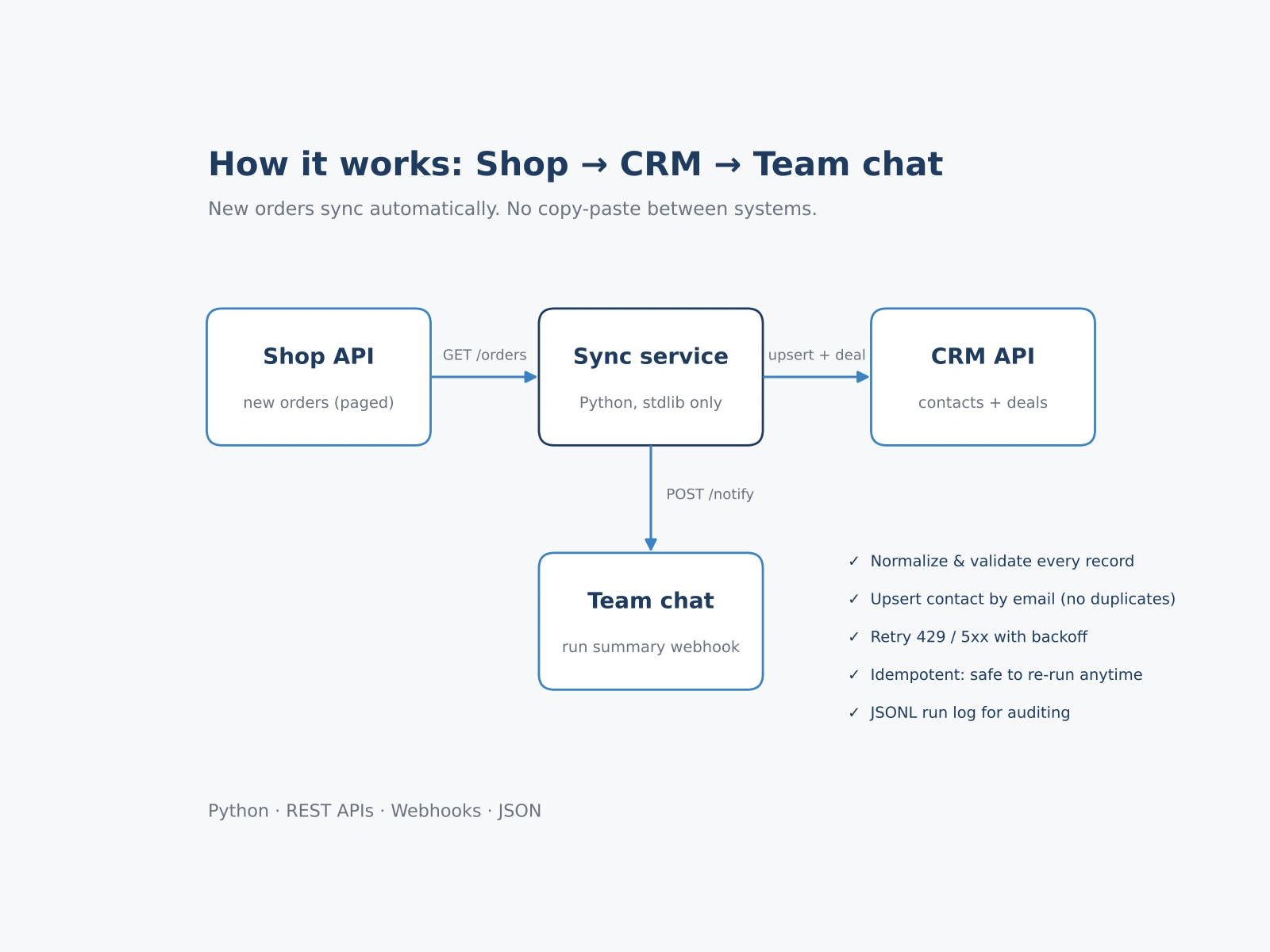

Pull: reads new orders from a paged Shop API

Normalize & validate: trims and lower-cases emails, rejects records with missing totals

Upsert: finds or creates the CRM contact by email, then creates a deal per order

Retry: honours Retry-After on 429, exponential backoff on 5xx, fails fast on other 4xx

Idempotent: processed order IDs are stored, so re-running never duplicates data

Notify: posts a run summary to a Slack-style webhook and writes a JSONL audit log

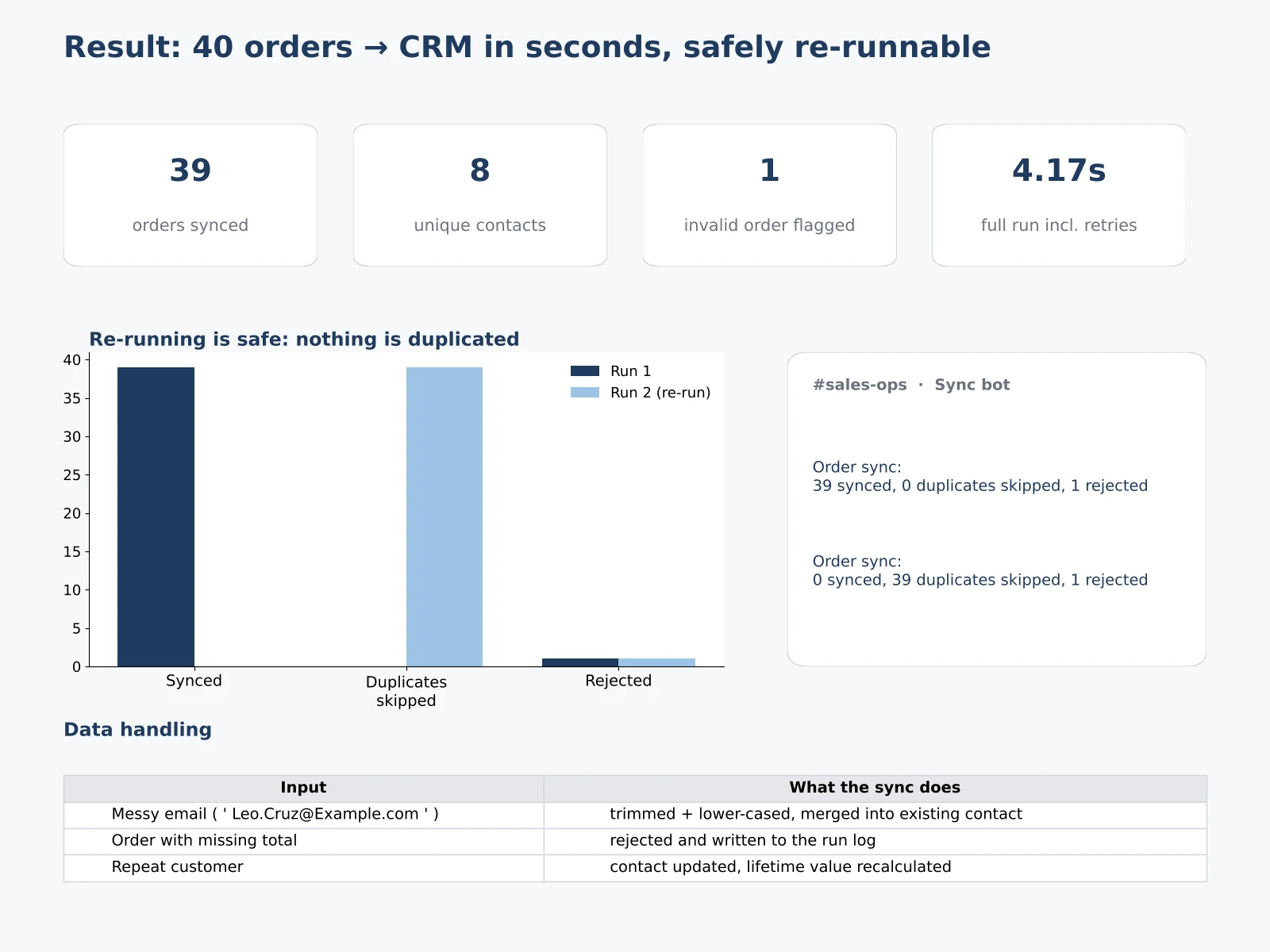

40 orders fetched → 39 synced, 1 invalid order flagged

8 unique CRM contacts (a messy duplicate email was merged)

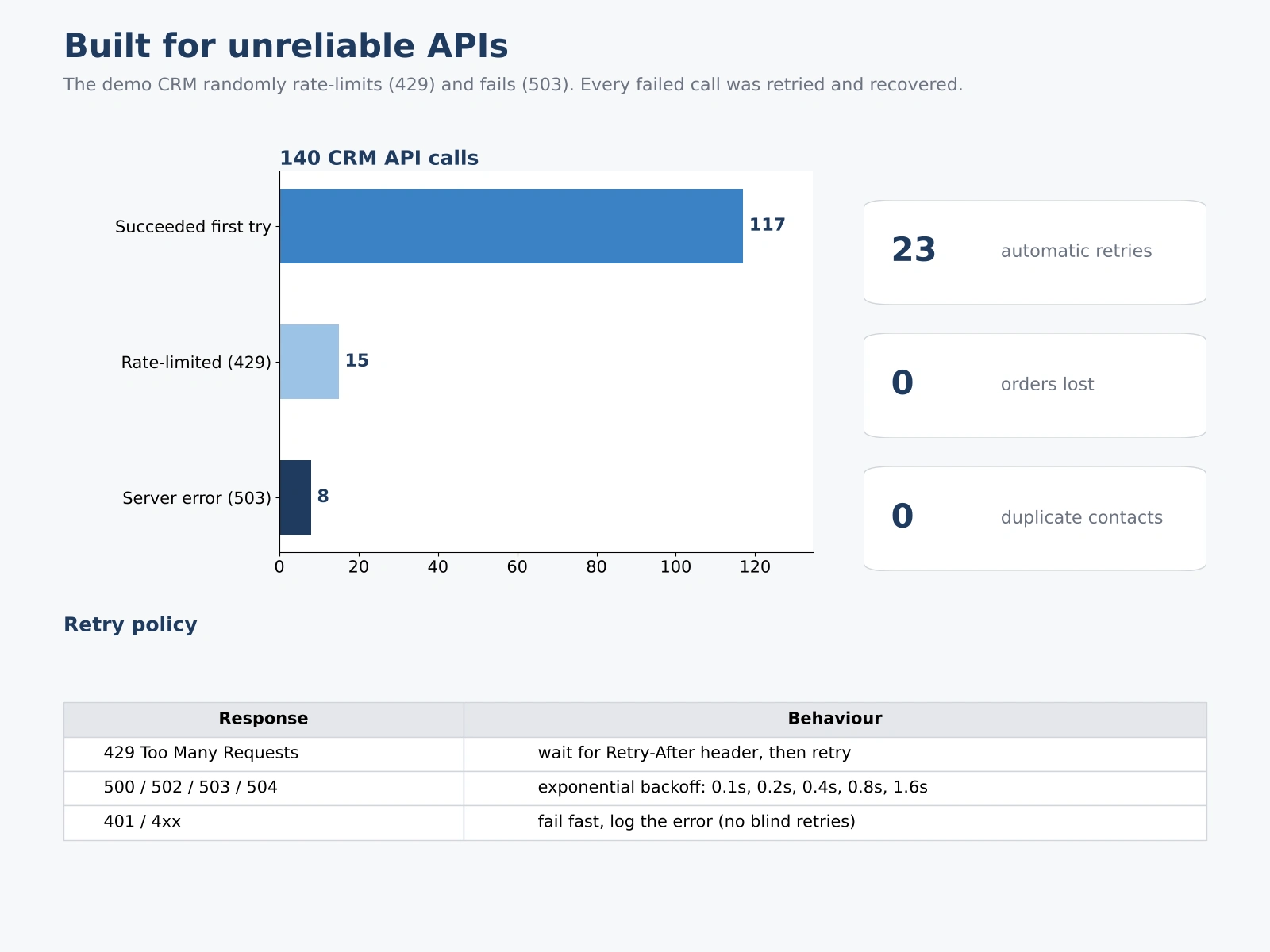

23 rate-limit / server errors retried automatically → 0 orders lost

Second run: 0 synced, 39 duplicates skipped

Self-directed demo: the shop, CRM and chat APIs are local mock services, so it runs anywhere with no keys. The same pattern maps to Shopify / WooCommerce → HubSpot / Pipedrive → Slack. Source code: https://github.com/cricket20052022/api-workflow-automation
