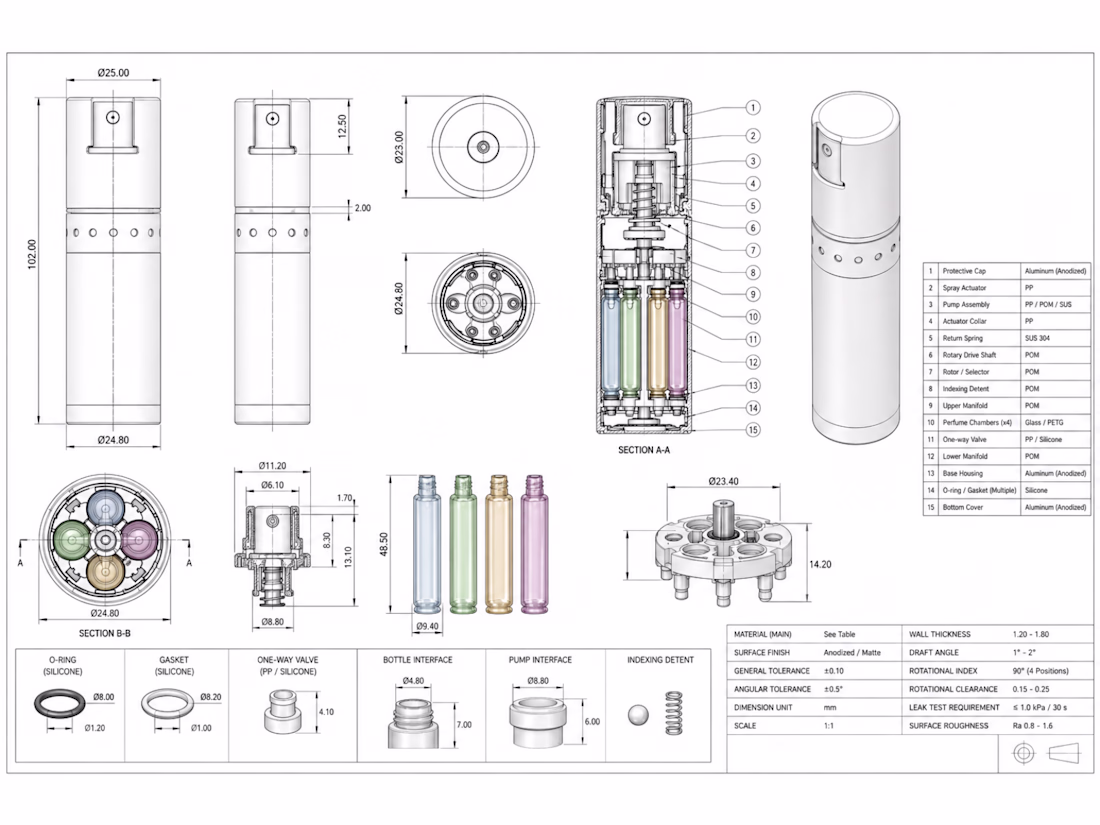

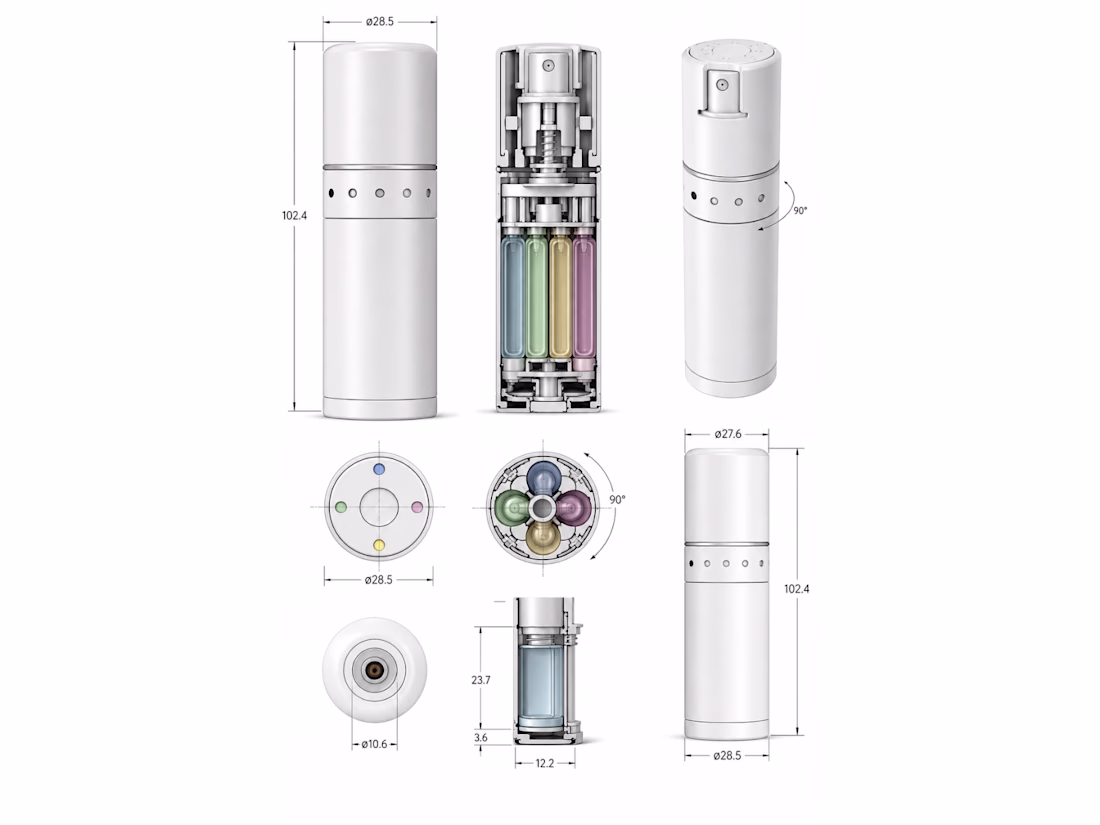

ROTARY 4-CHAMBER TRAVEL PERFUME ATOMIZER DFM TECHNICAL DRAWING CAD 3D PRODUCT RENDERING

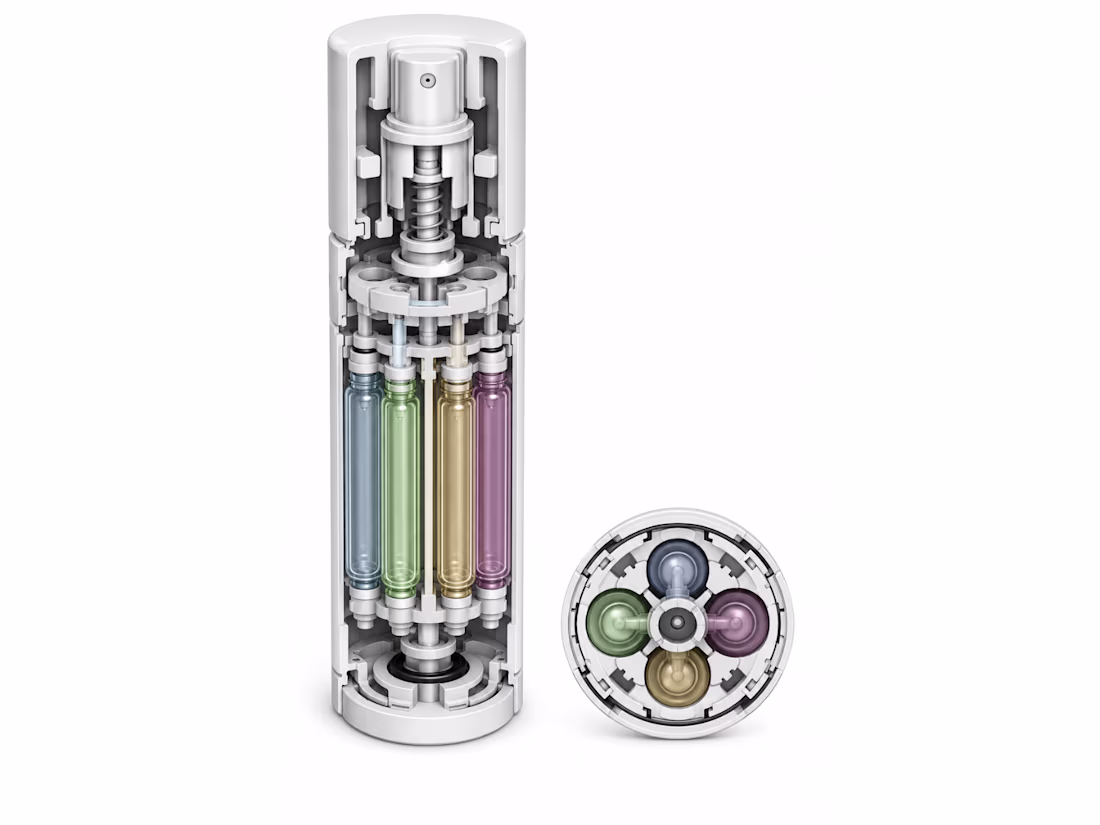

I engineered a compact rotary 4-chamber travel perfume atomizer that allows seamless switching between four distinct fragrance vials. Modeled in CAD, the internal mechanism incorporates a precision detent indexing system and a single central pump actuator. I applied strict DFM principles for multi-part plastic injection molding and aluminum sleeve extrusion, optimizing wall uniformity and internal seal fits. The project concluded with complete 2D technical drawings with GD&T limits, finishing specs, and photorealistic renders detailing anodized metallic textures

#productdesign #industrialdesign #productdevelopment #CADdesign #CADdrafting #solidWorks #fusion360 #3Dmodeling #mechanicaldesign #productengineering #prototypedesign #rapidprototyping #Designformanufacturing #Technicaldrawings #Productrendering #Consumerproductdesign #Productinnovation #Engineeringdesign #Manufacturingdesign #Conceptdevelopment #Productvisualization #Injectionmolddesign #Productdesignconsultant #Mechanicalengineering #Hardwareproductdevelopment #Patentdrawings #Industrialproductdesign #Productdesignengineer #3DCADmodeling #Productdevelopmentconsultant, #techpack #softgoodsdesigner

Industrial Design Product Design Fusion 360 3D Rendering Blender SolidWorks
