MOS Monitoring & Editor Tools Frontend

1. Overview

This project (mos-job-monitoring / mos-editor-tools) is the internal web application for the Blonde Waterfall operations and editorial team. It serves as a single pane of glass over the MOS (Media/Marketing Output System) rendering pipeline — the backend system that ingests templates and listings and produces rendered video output.

The app fulfils two tightly-related missions:

Job monitoring & failure triage — observe every job moving through the pipeline, watch live progress as a DAG (directed acyclic graph) of tasks, inspect intermediate outputs, diagnose typed errors, and retry/cancel work with an audit trail.

Template & content authoring — manage the templates that drive the pipeline: browse and edit template metadata, inspect the preprocessing pipeline, manage versions, optimize prompt markdown with an LLM, re-ingest packaged ZIPs, and run scoped test renders before promoting a template.

Access is role-gated to editor and admin users, mirroring the backend's /api/editor/* API surface.

2. Problem It Solves

Before this tool, operators diagnosing a customer-reported render failure had to spelunk through CloudWatch Logs, correlate IDs by hand, and read backend source to understand a template's preprocessing steps. Editors had no safe way to iterate on a template without a full re-ingest and production deploy.

This app solves those pain points directly:

Problem Solution this app provides Slow failure diagnosis (log spelunking) DAG visualization + typed per-task errors + correlation IDs. Target: time-to-diagnosis under 60s for a known jobId. No live visibility into in-flight jobs Per-job DAG polled every ~30s with status per node; 30-second freshness on any open job. Can't see intermediate task output Click any task node to view/download its S3 output via presigned URL. Risky template edits Firestore-only field edits (no re-ingest) that dual-write to the active version snapshot. Hard to iterate on prompt markdown In-app Markdown Optimizer powered by the Anthropic Claude API (client-side key). No safe pre-flight check Test renders — bind placeholder assets, submit a scoped editor_test job, and watch it run before promoting. Notification overload Acknowledge/triage notifications so the team isn't drowning. Stuck free trials & local-tour jobs Dedicated tracking surfaces for these job classes.

Who uses it

Backend engineers debugging a customer-reported failure

Ops team triaging the daily failure queue

Editors authoring and iterating on templates

PMs / leadership glancing at pipeline health

3. Core Features & Workflows

Dashboard — at-a-glance pipeline health and stats overview.

Templates — browse all templates (any status), inspect each template's preprocessing pipeline (shot chains, alias preprocessing, asset aliases, text variables, post-render steps), quick-edit fields Firestore-only via PATCH /api/editor/templates/:id, and create new templates.

Versions — view version history, activate a prior version, delete versions.

Markdown editing & optimization — edit/optimize the template prompt markdown via the Anthropic Claude API, then re-ingest a packaged ZIP to create a new version.

Test renders — bind placeholder assets to required slots, fill a placeholder listing, submit a render, and watch its status + events (creates editor_test jobs).

Jobs list — paginated, filterable table with direct-ID search.

Job detail — tabbed view: Overview, DAG, Tasks, Timeline, Inputs, Errors, and Local-Tour stage inspection. Live polling, retry/cancel with reason.

Base clips — configure and submit base-clip generation (with photo upload).

Local tours — pipeline monitoring, stage inspection, voice-id control, active-template management, and test submission.

Calendar lead templates — UI to pin/configure calendar lead templates.

Notifications — list, view stats, and acknowledge notifications.

CloudWatch deep-links — jump straight to the relevant logs when needed.

4. Technologies Used

Language & Framework

React 19 — UI library

TypeScript 5.7 (strict mode) — type safety across the app

Vite 6 — build tool and dev server (ES modules, fast HMR)

Styling & UI Components

Tailwind CSS v4 (via @tailwindcss/vite) — utility-first styling

shadcn/ui built on Radix UI primitives — accessible component library (Dialog, Dropdown, Select, Tabs, Toast, Tooltip, Scroll Area, Label, Separator, Slot)

class-variance-authority, clsx, tailwind-merge — variant & className composition

tw-animate-css — animation utilities

lucide-react — icon set

sonner — toast notifications

Data Fetching & State

TanStack Query v5 (@tanstack/react-query) — server-state cache, polling, and live updates (with React Query Devtools)

Zustand v5 — lightweight client-side state

React Router v7 (react-router-dom) — routing/navigation

Forms & Validation

React Hook Form — form state management

Zod — schema validation

@hookform/resolvers — wires Zod into React Hook Form

Visualization

@xyflow/react v12 (React Flow) — interactive DAG / node-graph rendering

dagre — automatic graph layout

Backend, Auth & Integrations

Firebase Web SDK v11 — authentication (role-gated editor/admin)

MOS backend /api/editor/* REST API — jobs, templates, renders, etc.

Anthropic Claude API — in-app Markdown Optimizer (client-side key)

AWS S3 — intermediate task outputs (presigned URLs)

AWS CloudWatch — log deep-linking

Utilities

marked — Markdown → HTML rendering

dompurify — HTML sanitization (XSS safety)

@uiw/react-json-view — JSON output inspection

jszip — packaging/handling template ZIPs

date-fns — date/time formatting

uuid — id generation

Tooling, Testing & Quality

ESLint 9 + typescript-eslint + eslint-plugin-react-hooks + eslint-plugin-react-refresh + eslint-plugin-unused-imports — linting

Prettier — code formatting

Vitest 3 + jsdom — unit/component test runner

@testing-library/react + user-event + jest-dom — component testing

MSW (Mock Service Worker) — API mocking in tests

Playwright — end-to-end testing

5. Architecture at a Glance

┌──────────────────────────────────────────────────────────┐
│  React 19 + Vite SPA (this repo)                          │
│                                                            │
│  Pages ──► Tabs/Components ──► TanStack Query hooks        │
│     │              │                   │                   │
│  React Router   Zustand            api/ fetch layer        │
│                                         │                  │
└─────────────────────────────────────────┼─────────────────┘
                 │                         │            │
        Firebase Auth          MOS backend /api/editor/*   Anthropic
        (editor/admin)         (jobs, templates, renders)  Claude API
                                         │
                              AWS S3 (outputs) · CloudWatch (logs)

src/pages/ — top-level routed views (Dashboard, Templates, Jobs, Base Clips, Local Tours, Calendar, Notifications, Login).

src/pages/tabs/ — job-detail tabs (Overview, DAG, Tasks, Timeline, Inputs, Errors, Local Tour).

src/api/ — typed fetch layer, query keys, and one hook per query/mutation.

src/components/ — feature components (templates, jobs, baseclips, localtour, calendar) plus a shared common/ and layout/ library.

src/auth/ — Firebase init, AuthProvider, and RequireEditor gate.

src/lib/ — DAG layout, CloudWatch links, formatting, severity helpers.

7. Success Criteria

Time-to-diagnosis under 60 seconds for a known jobId.

30-second freshness on any open job-detail page.

No CloudWatch spelunking needed for ~80% of failures — typed-error data and correlation IDs cover them.

Editors can safely iterate on a template (edit → optimize → test render) without a production deploy.

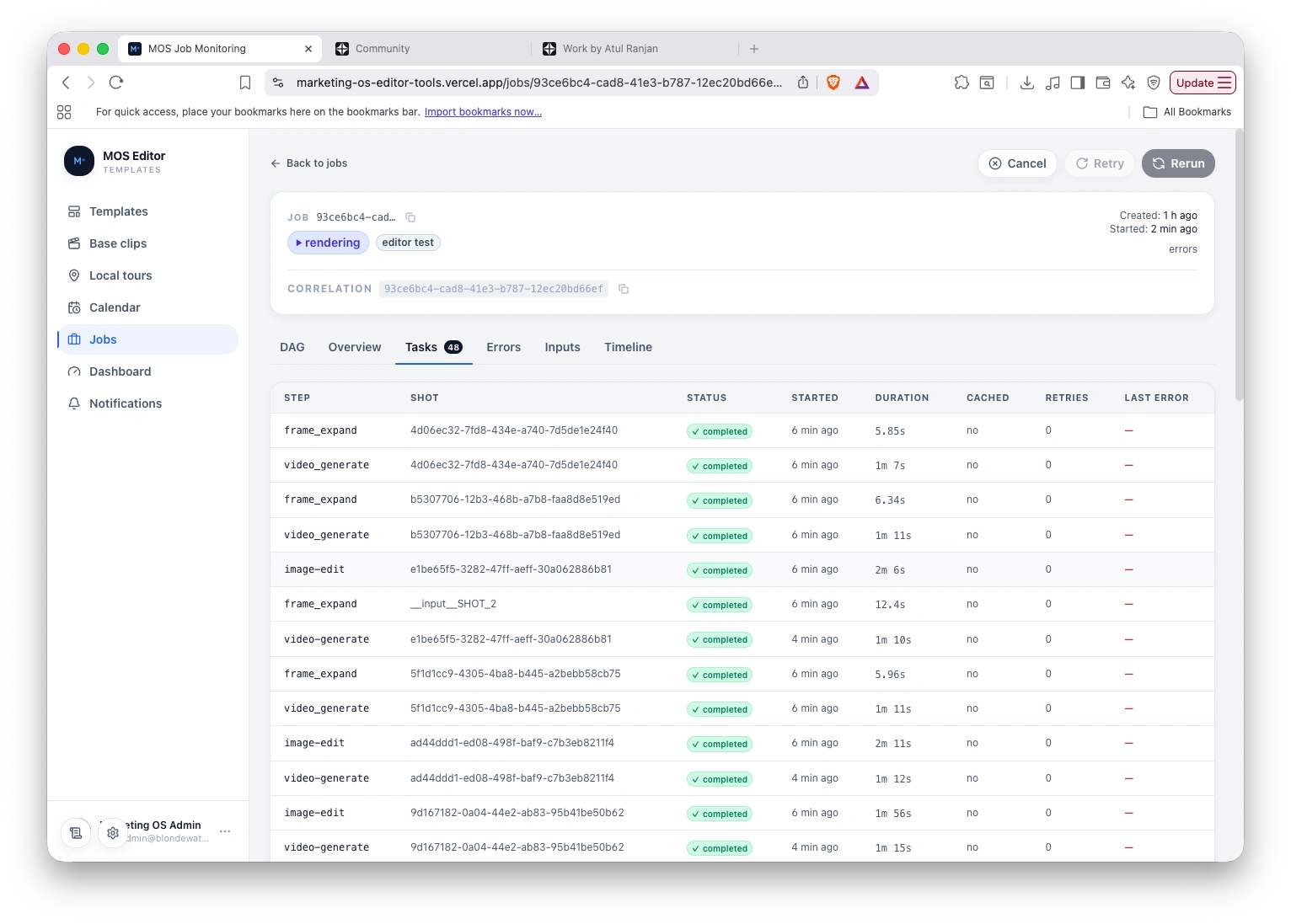

Job Tracking

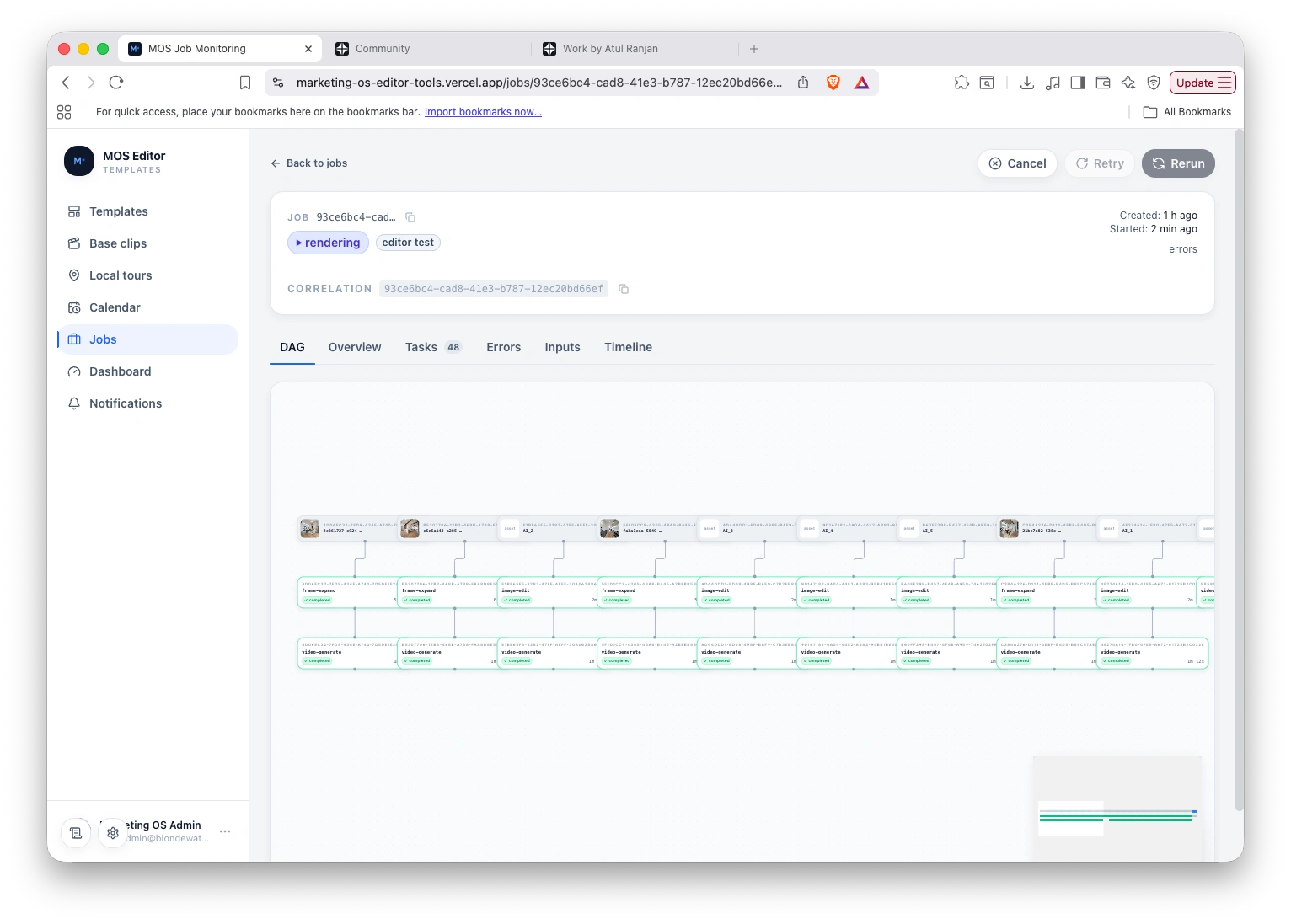

Job graph

Like this project

Posted Jun 22, 2026

Internal app for Blonde Waterfall's MOS render pipeline. Watch each job as a live DAG, inspect task outputs, and triage typed failures in under 60 seconds.
