LED Lighting Packaging: Factory-Ready Box Dielines
Diego A. Quinde
LED lighting brands need packaging that sells on the shelf and also survives the factory. I design box artwork on the dieline itself, with the information a printer needs to produce it correctly the first time.
What I did
Designed full dielines for street lights, high-bay (UFO) luminaires, LED strip and ornamental fixtures
Organized technical content on the box: spec tables, certification icons, dimensional drawings and barcodes
Set up brand color guides with CMYK values for consistent printing
Adapted the same visual system across different box formats, from retail color boxes to kraft shipping cartons
Labeled box dimensions and model codes on the artwork for factory use
What's shown
Street light retail box, full dieline
UFO high-bay luminaire box with CMYK color guide
LED strip box with color guide and barcodes per color temperature
Kraft shipping carton for an ornamental luminaire

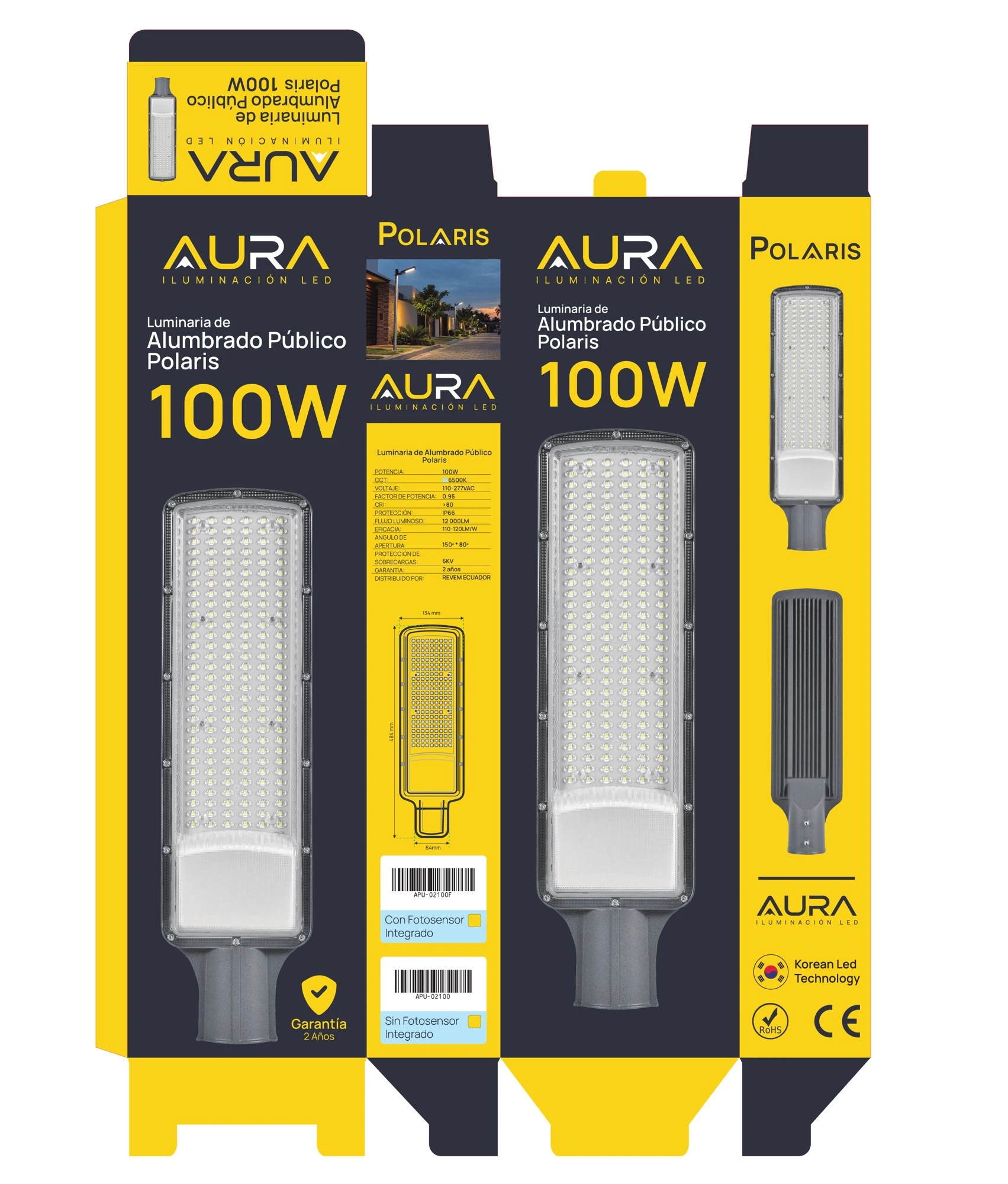

Street light dieline

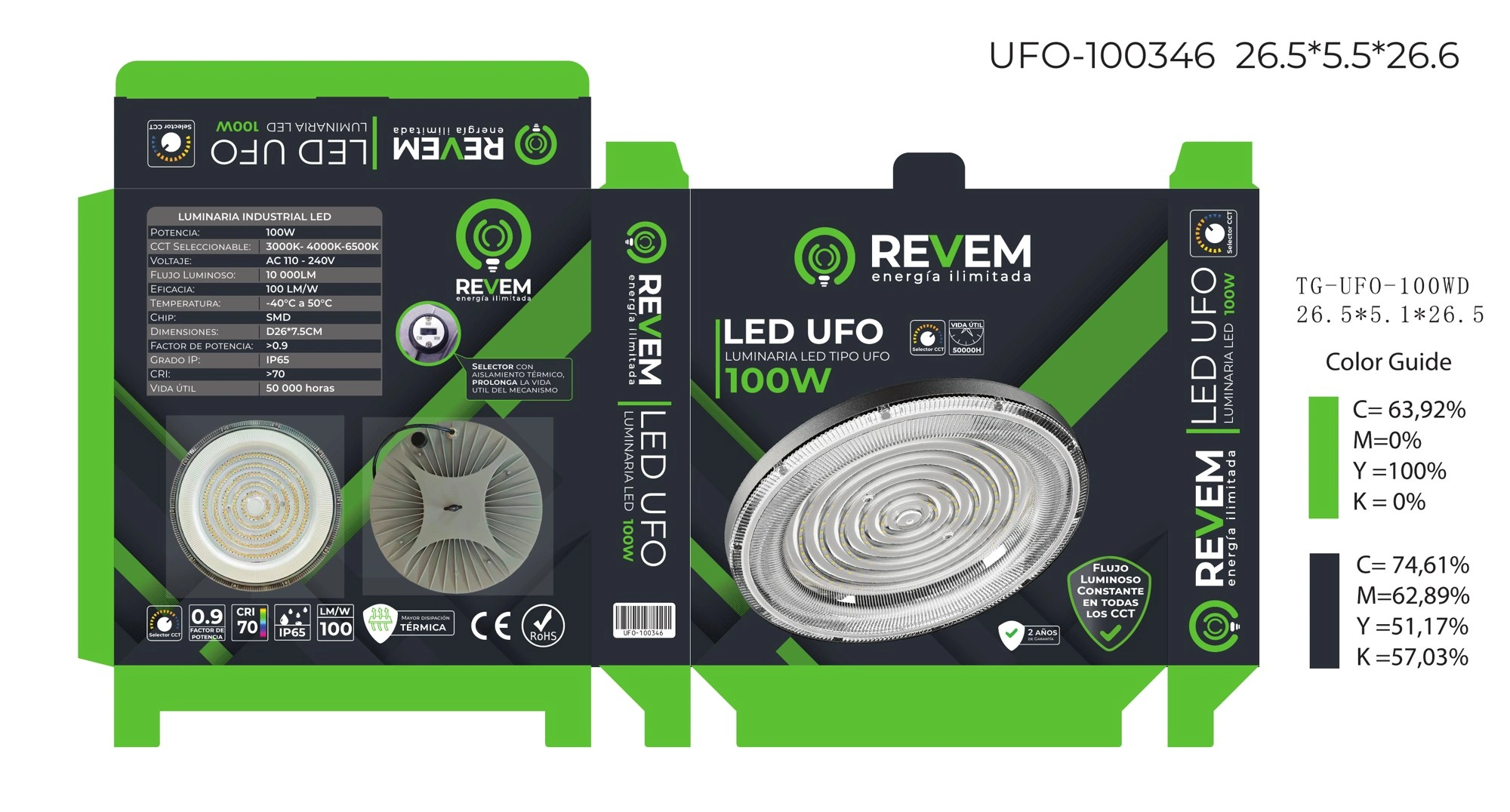

UFO luminaire dieline

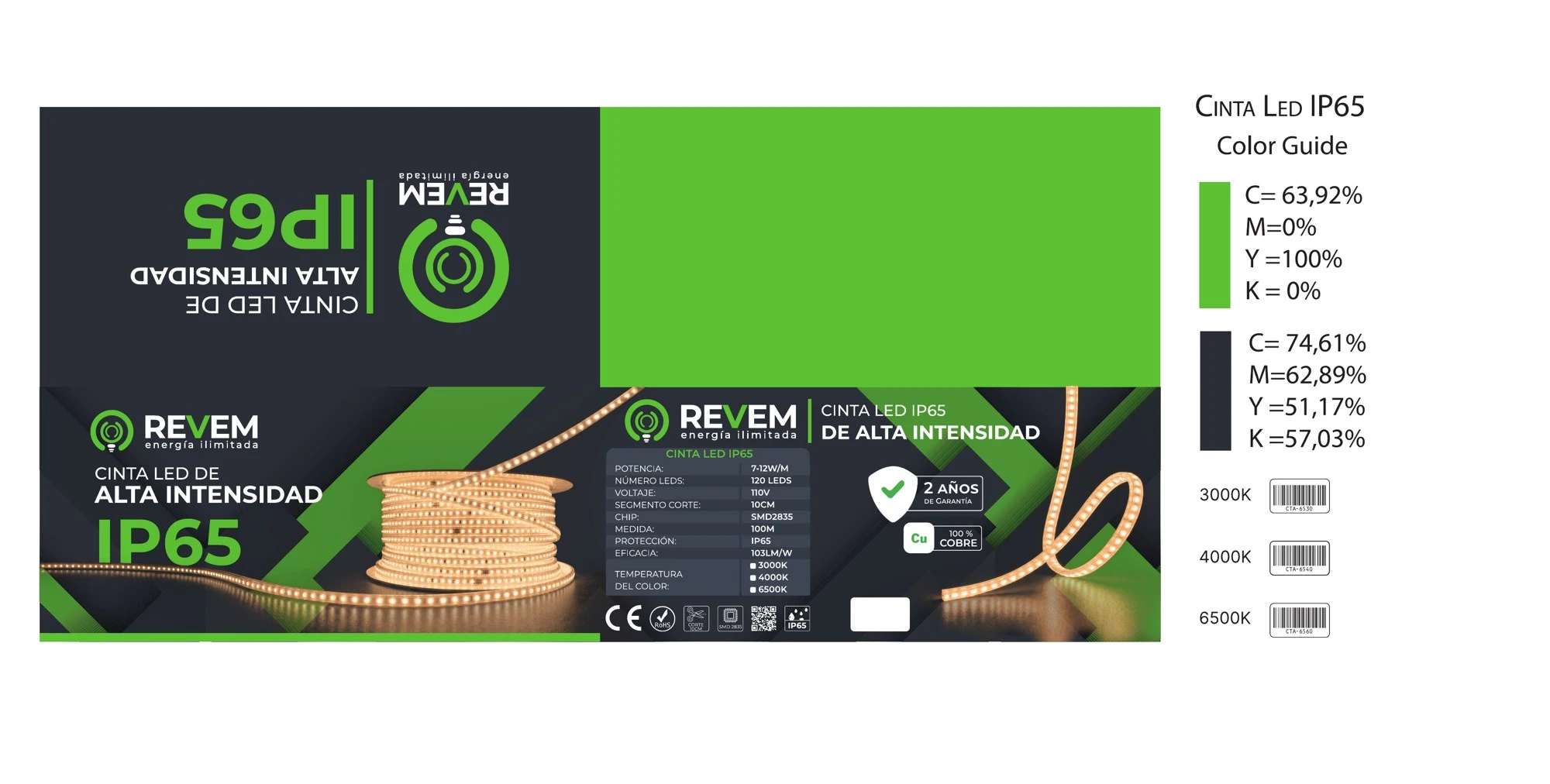

LED strip box

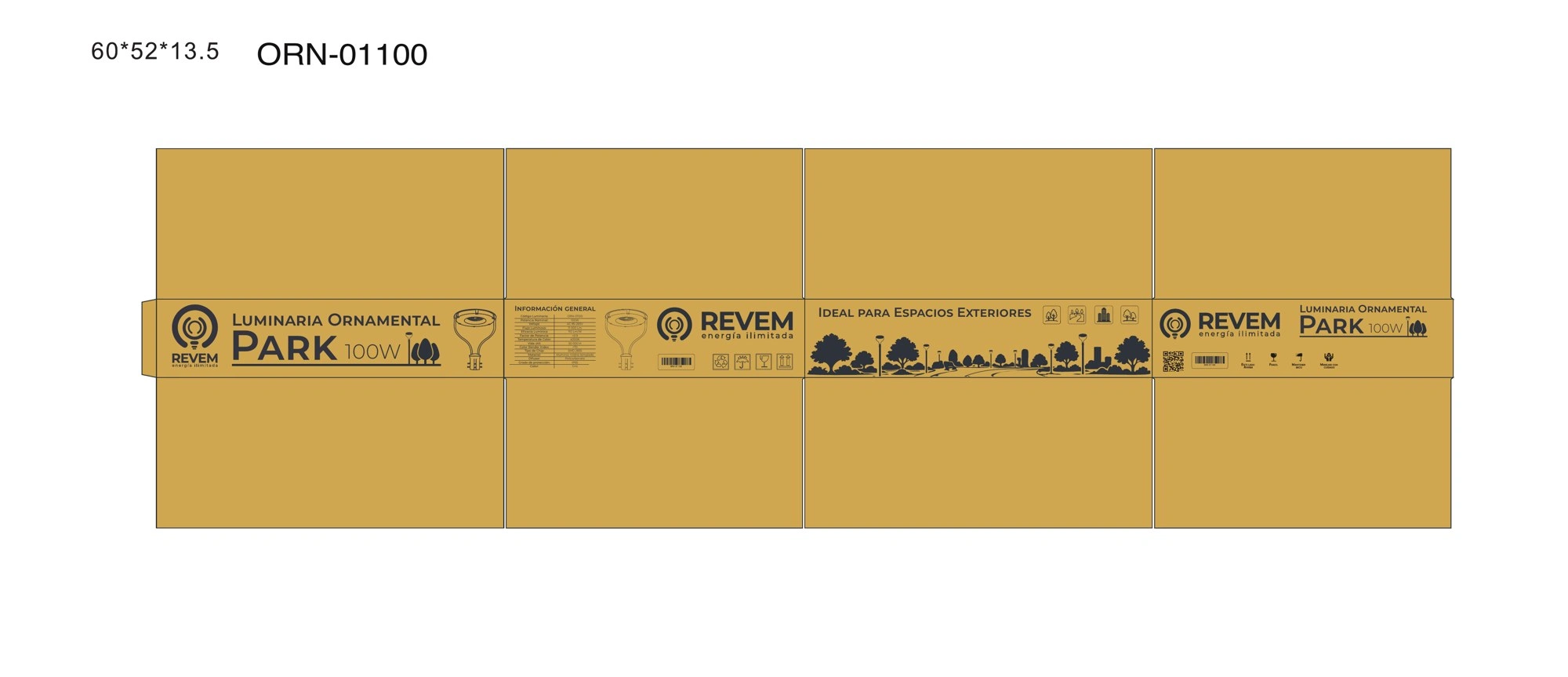

Kraft shipping carton
Like this project
Posted Oct 16, 2026
Packaging dielines and box artwork for LED lighting products, prepared with color specs and dimensions so factories can print without questions.
