Technical Datasheet Design: LED Street Light
Diego A. Quinde
One page of a lighting submittal: the product datasheet for a decorative LED street luminaire. The goal was a page a specifier can scan quickly and trust.
What I did
Organized features, specifications and certifications into a clear hierarchy
Built the specification table so every value is easy to find and compare
Placed the dimensional drawing and product description for quick reading
Kept the layout consistent with the rest of the package so it can be reused across a range
Result
A clean datasheet page built in InDesign with master pages and styles, ready to be reused for other products.

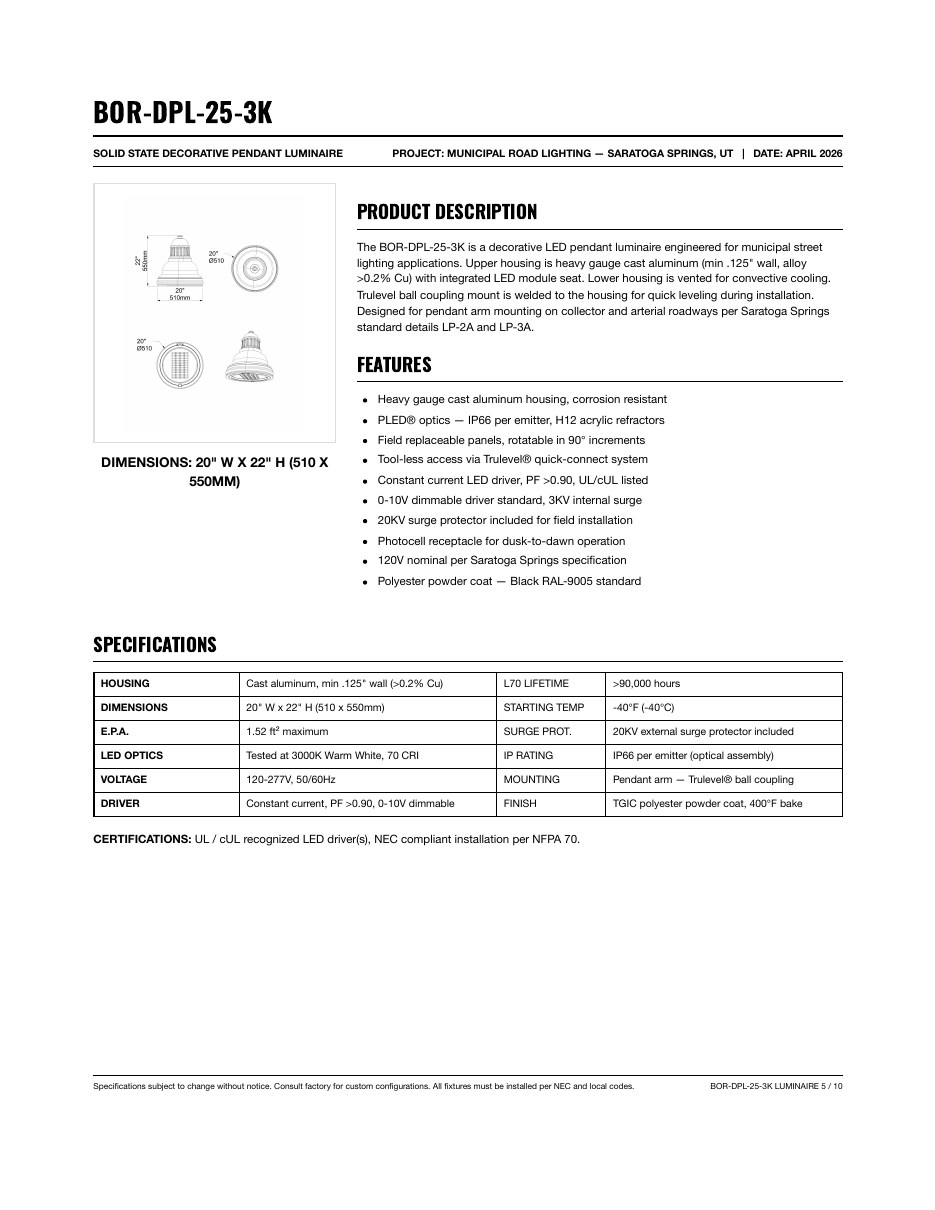

Datasheet page
Like this project
Posted Oct 16, 2026
A clear, print-ready datasheet for a decorative LED street luminaire: features, specifications, dimensions and certifications on one page.
