Core XY 3D Printer - Costum made
Santiago Gajof
The project consisted on creating a fully functional 3D printer.
The printer was created later with little to no modifications on each designed component.

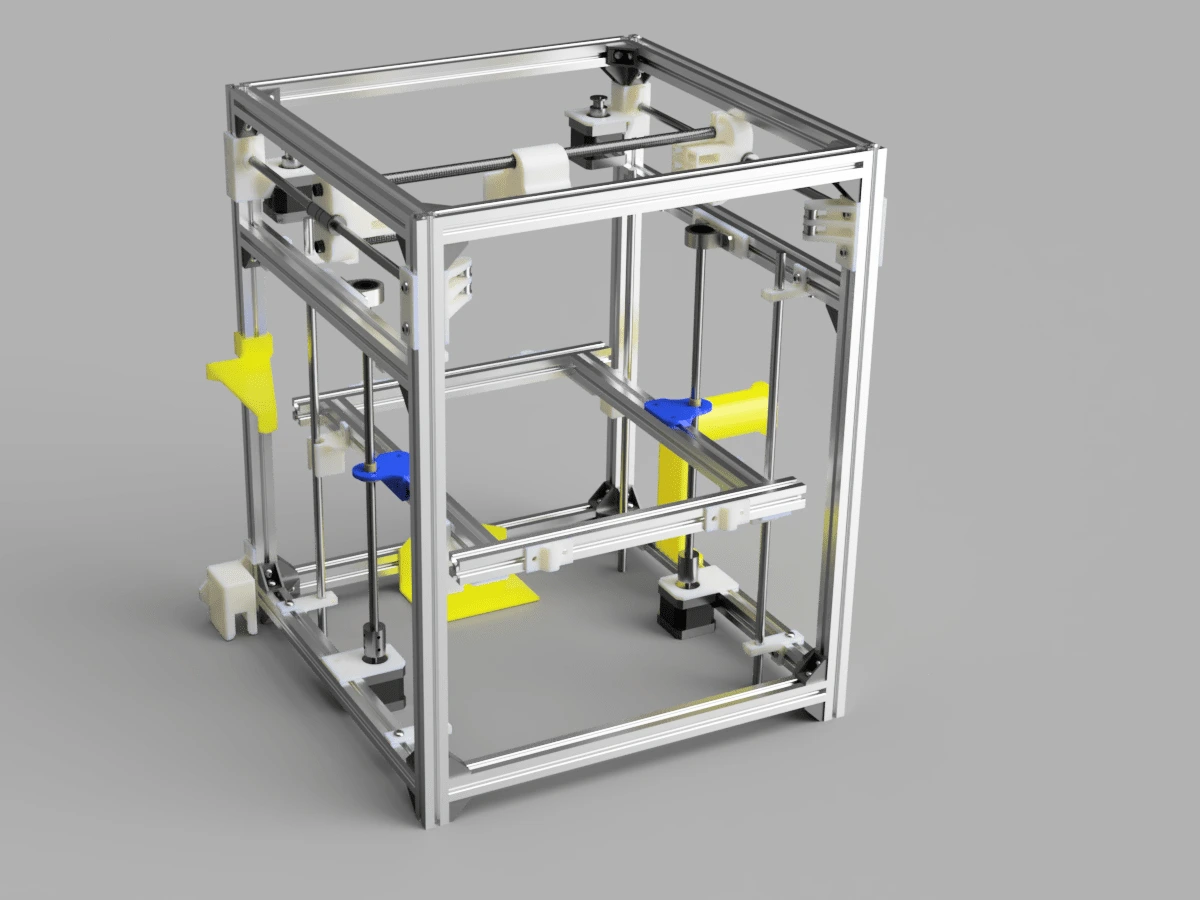

Final render of core XY 3D printer.
Frame
The frame consisted on 2020 aluminium extrusions conected by zinc 90° angle connectors and M5 screws with "T" nuts.
If the printer were to be 100mm larger, 2040 or 3030 profiles would have needed to be used to prevent swagging and vibrations.
XY Axis
The XY axis was made from lm8uu ball bearing and 8mm steel-chromed rods.
Carriages were designed on Fusion 360 as well as well as the other components.
Z axis
The printer uses 2 metal steel-chromed rods on each side with 1 lead screw on each side.
Lm8uu ball bearings were also used to guide the print bed correctly through the axis.
Electronics
Motherboard: SKR mini 1.3
Motors: NEMA 17 2.2A
Hotend: e3D hotend
Autolevel: Yes with induction senor
Manual Leveling: Yes with springs.
Drivers: TMC
Power Supply: 360W 24V 15A
Final build with no cable management.
