Strength Training Equipment

The objective was to transform an early prototype made from wood and steel into a fully updated design constructed entirely from HSS and steel plate brackets.

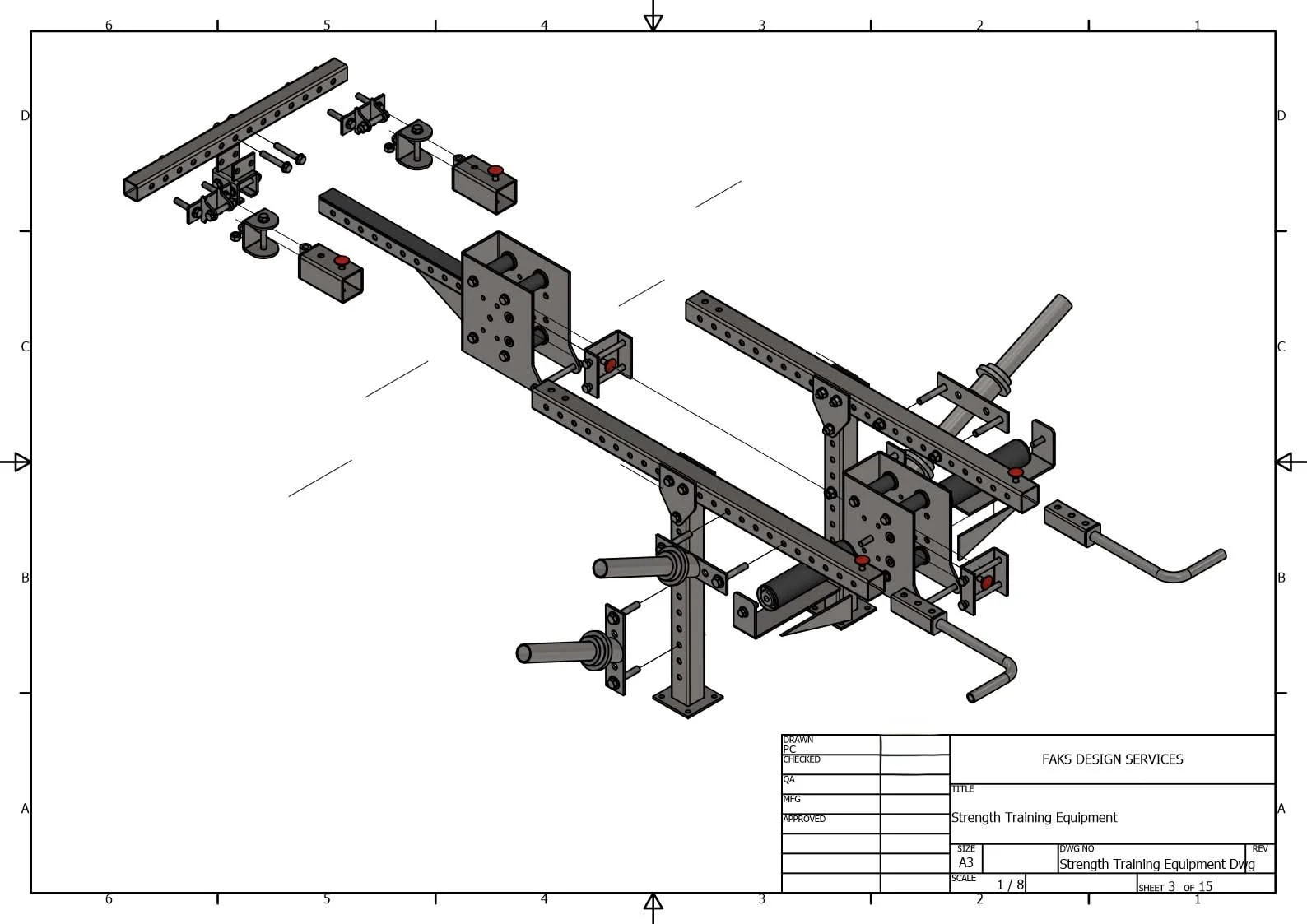

By referencing the original prototype and hand sketches provided, I created a 3D model and detailed manufacturing drawings. This project was a great opportunity to apply my skills in frame assembly and design, bringing the concept to life with precision and accuracy.
