Drone ESC
Mickael Urbino

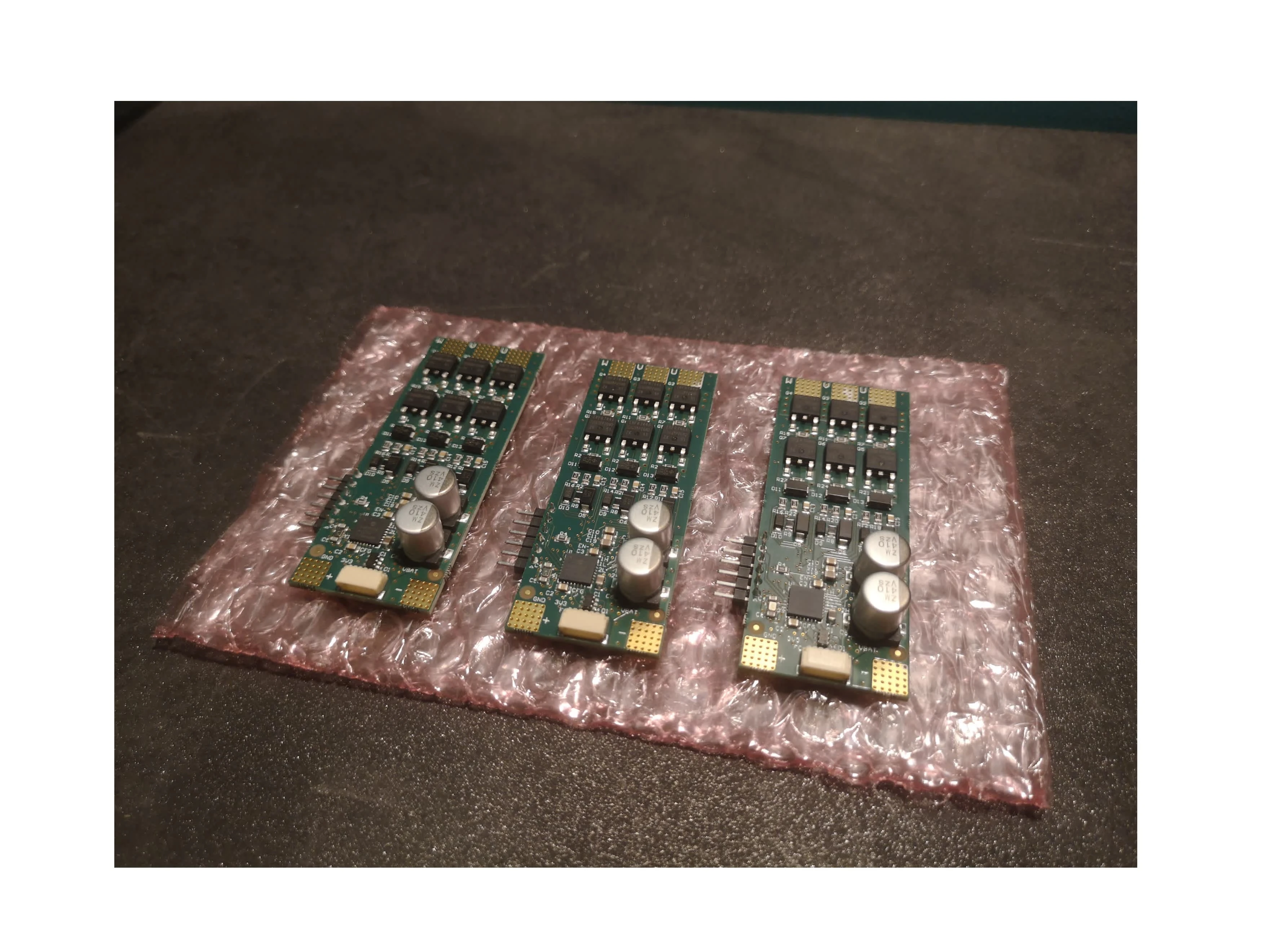

This Electronic Speed Controller is meant to drive 9-12V Brushless DC Motors, from a 3-4s Li-Po Battery Input. It provides current sensing and current limitation up to 15A. (4 Layers - 74.5mm*20mm)
The PCB is made of wide power traces and thick copper to minimize temperature rise during operation.
Motor starting current spikes are limited thanks to a PWM control.
The ESC has a DSHOT Interface which makes it usable with a large quantity of drone flight controllers.
Features:
- Use with 3-4s Li-Po Batteries
- Up to 15A rated BLDC motors
- DSHOT Interface
