Highly Available Hub-and-Spoke Architecture for Multi-Environment AWS Deployments
Multi-Environment Isolation using separate VPCs for Development, Production, and Administration.
High Availability with all resources deployed across two Availability Zones.
A Hub-and-Spoke Network connected via AWS Transit Gateway for scalable routing.
Centralized, Secure Management through a dedicated Jump Server.
A Multi-Tier Subnet Design to protect application servers and databases in private subnets.

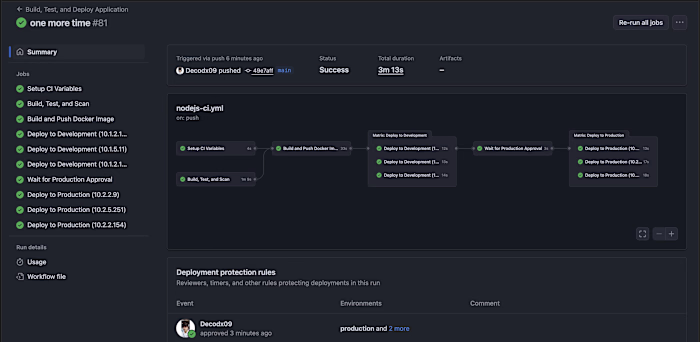

Using Github Actions CI/CD pipeline for deployments within the environments.
Granular Firewall Control with Security Groups configured to allow only necessary traffic between components.
