Reverse Engineered Product
0
Graphic Designer
Product Designer
3D Animator
Blender
This product was sent to me. I took it apart, and each piece was measured using calipers. The dimensions were modeled up in Solidworks, and all the parts were assembled as they were. It was further modified to include the client's specifications, and the client was variedly satisfied with the results.
Parts laid out

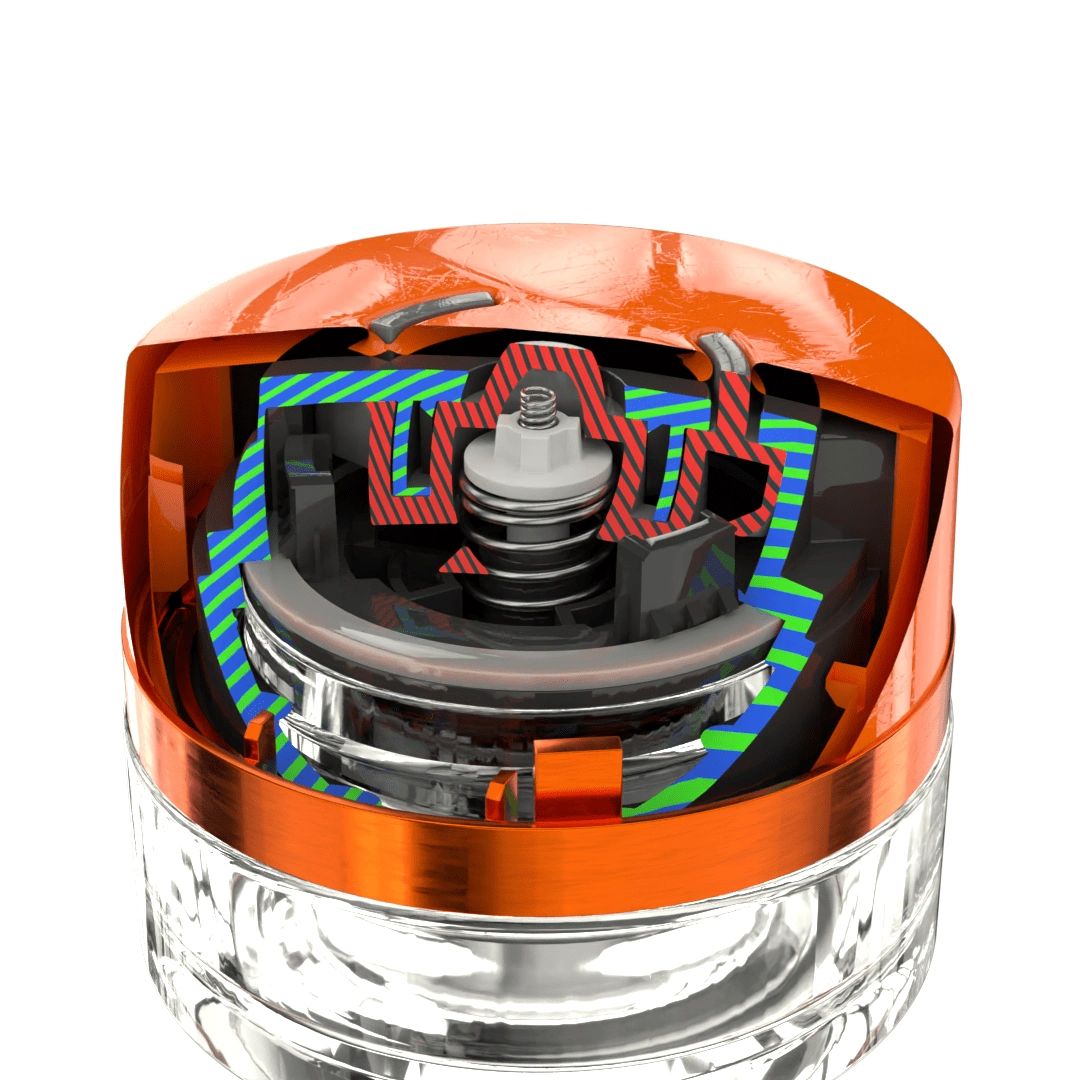

Cut away inside the device.
Taking it apart
Like this project
0
Posted Apr 30, 2024
This product was sent to me. I took it apart, and each piece was measured using calipers. The dimensions were modeled up in Solidworks.
