Miles & More | AI-Powered Travel Planning App Development
Ali Shan
End-to-End Process – AI-Powered Travel Planning Web App | Miles & More
1. User Interaction (Frontend Layer)
Technology: React.js + TailwindCSS + Chart.js (or D3.js) Process:
User logs in or signs up via the authentication page.
Enters travel details — destination, dates, number of travelers.
Inputs budget in cash, airline miles, and hotel points.
Selects preferences — hotel rating, preferred airlines, activities, stopovers, etc.
The UI:
Validates inputs.
Stores them temporarily in local state.
Sends data to the backend via a secure HTTPS request.
Mock data is used for testing until live API integrations are active.
Frontend Deliverables:
Responsive dashboard with stats cards.
Charts for trip breakdown (cash vs points).
Interactive tables for trip results.
Dark/light mode toggle.
2. API Gateway & Request Handling (Backend Layer)
Technology: FastAPI + Python + PostgreSQL + Redis (for caching)
Process:
All frontend requests hit the API Gateway.
The gateway handles:
Authentication: Validates JWT.
Rate Limiting: Prevents abuse.
Routing: Sends requests to the appropriate service module.
Requests are logged for analytics and debugging.
Backend Modules:
Auth Service: Login, signup, password reset.

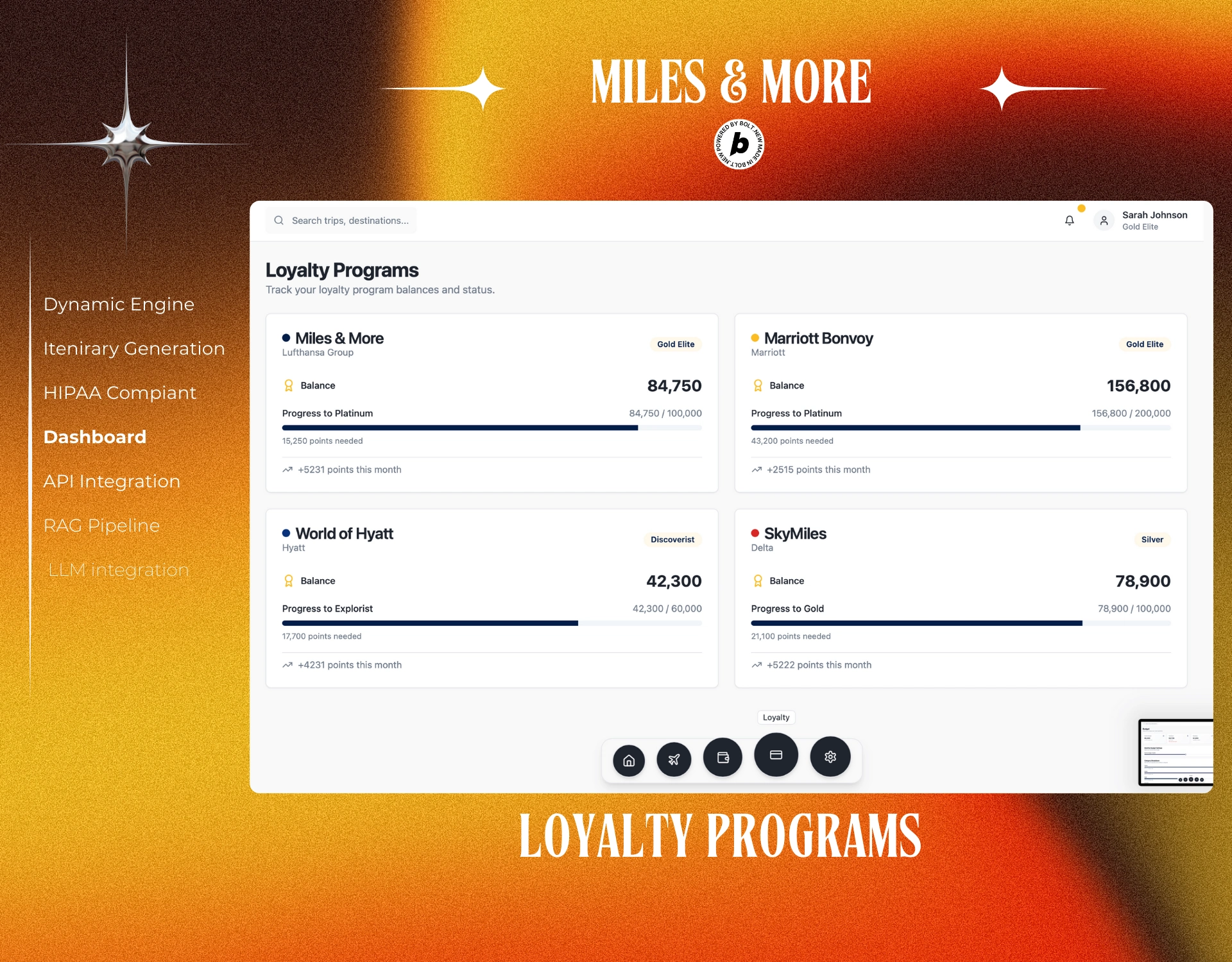

User Profile Service: Manages stored preferences and loyalty balances.
Trip Planning Service: Core AI itinerary generation.

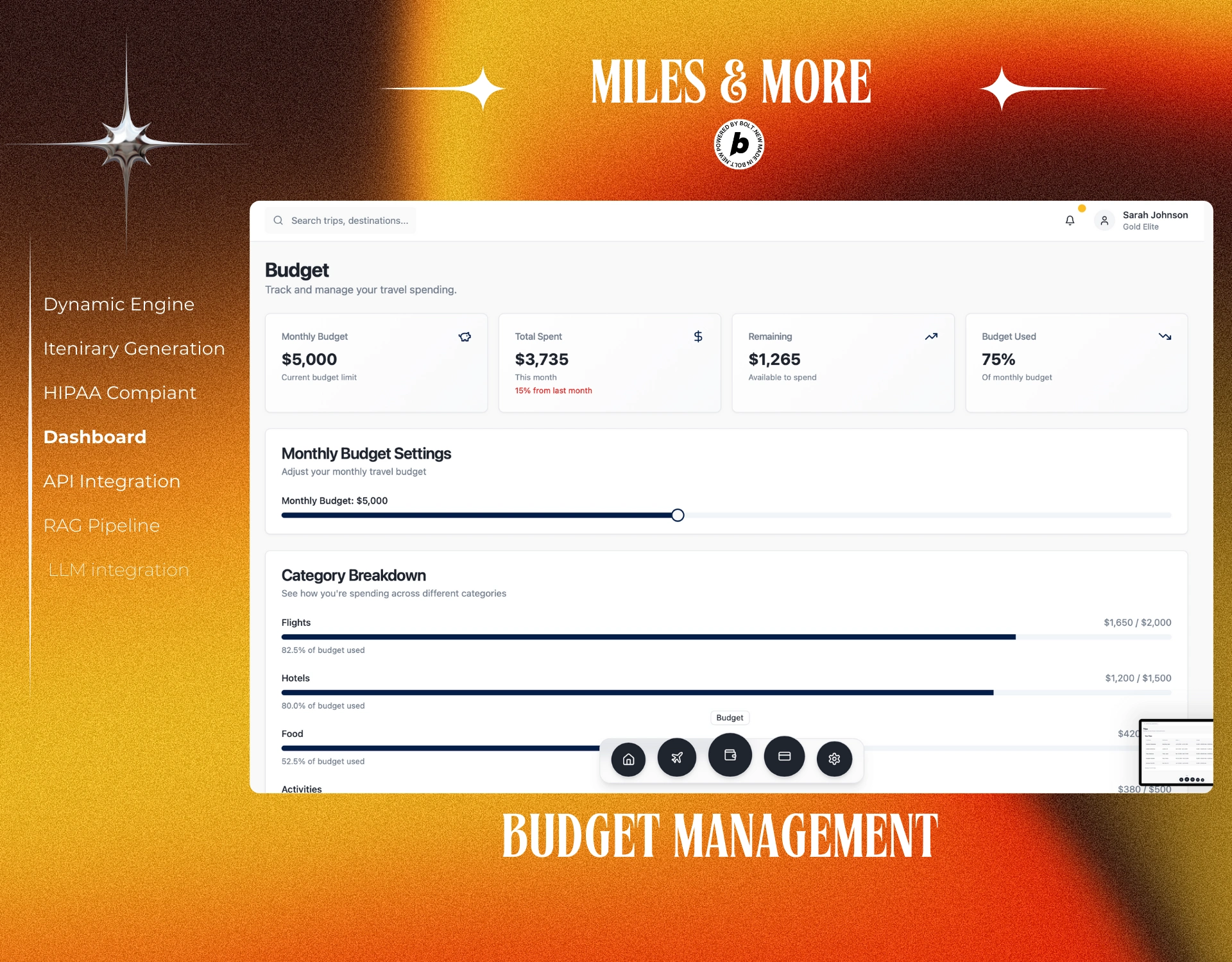

Budget Optimization Service: Allocates budget across cash, miles, and points.
External API Service: Fetches real-time travel data.
3. Data Processing & AI Reasoning
Technology: LangChain + OpenAI/GPT + RAG Pipeline + Vector DB (Pinecone or PostgreSQL pgvector) Process:
Data Aggregation: Backend queries:
User profile from DB.
Loyalty points balance from stored or API-connected sources.
RAG Pipeline:
Retrieves relevant travel rules, loyalty program constraints, and destination insights.
Passes retrieved context into the LLM.
LLM Reasoning:
Generates an optimized itinerary considering:
Budget constraints (cash, miles, points).
Loyalty program rules (minimum redemption amounts, blackout dates).
User preferences (direct flights, luxury hotels, etc.).
Optimization Algorithm:
Applies cost-benefit analysis between cash and points redemption.
Maximizes savings without compromising preferences.
4. External Data Fetching
Technology: Amadeus API, Skyscanner API, Booking.com API Process:
Backend requests real-time:
Flight prices.
Hotel rates.
Activity options.
APIs return multiple results.
Results are filtered based on AI recommendations.
Data is cached in Redis for faster repeated searches.
5. Response Assembly & Delivery
Process:
Backend combines:
AI-generated itinerary.
Real-time travel options.
Budget allocation breakdown.
Formats into a JSON response for the frontend.
Sends via secure HTTPS.
6. Frontend Rendering of Results
Process:
React UI receives JSON response.
Updates:

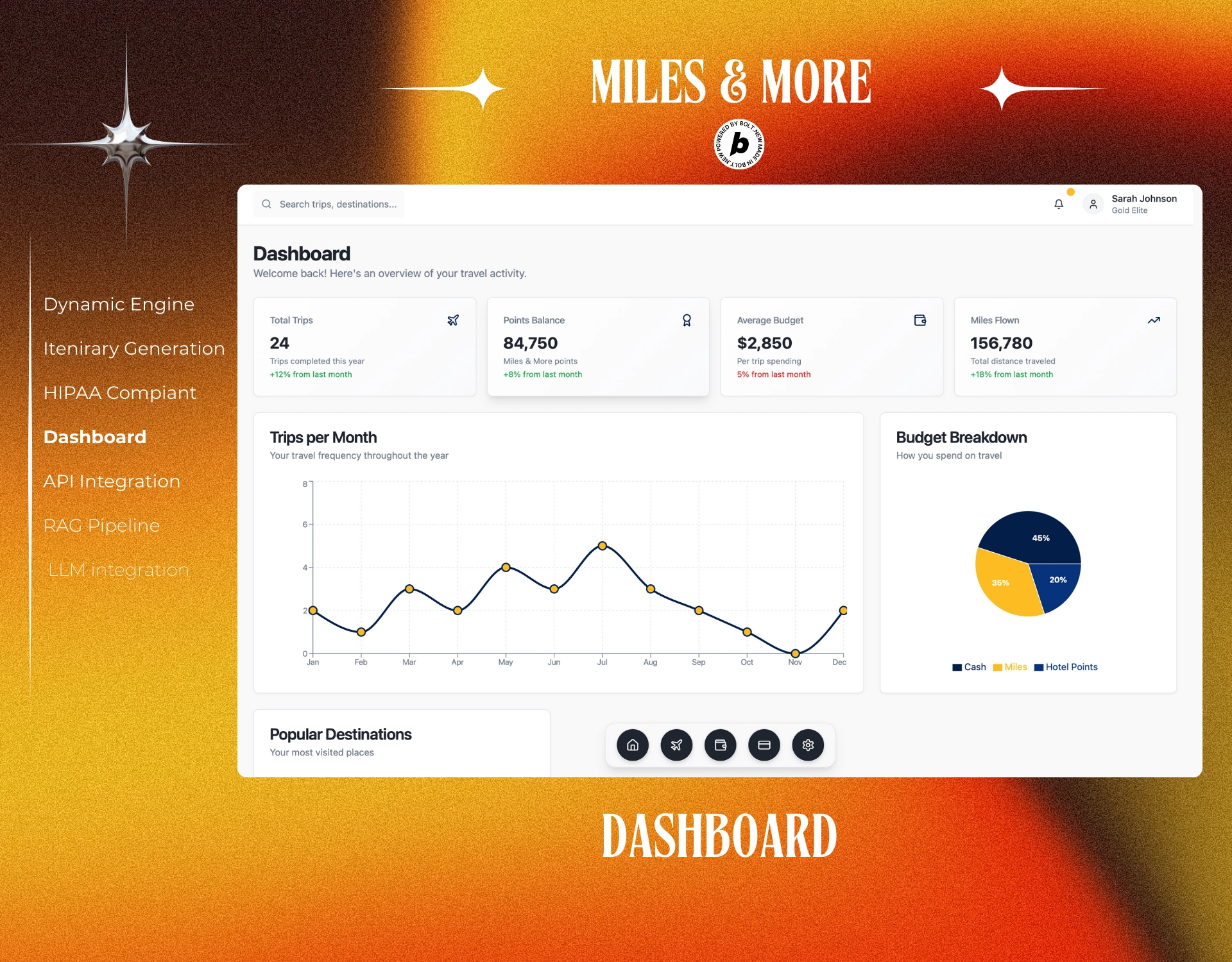

Summary Cards (Total Cost, Points Used, Savings).
Charts (Budget Allocation Pie Chart, Destination Popularity Bar Chart).

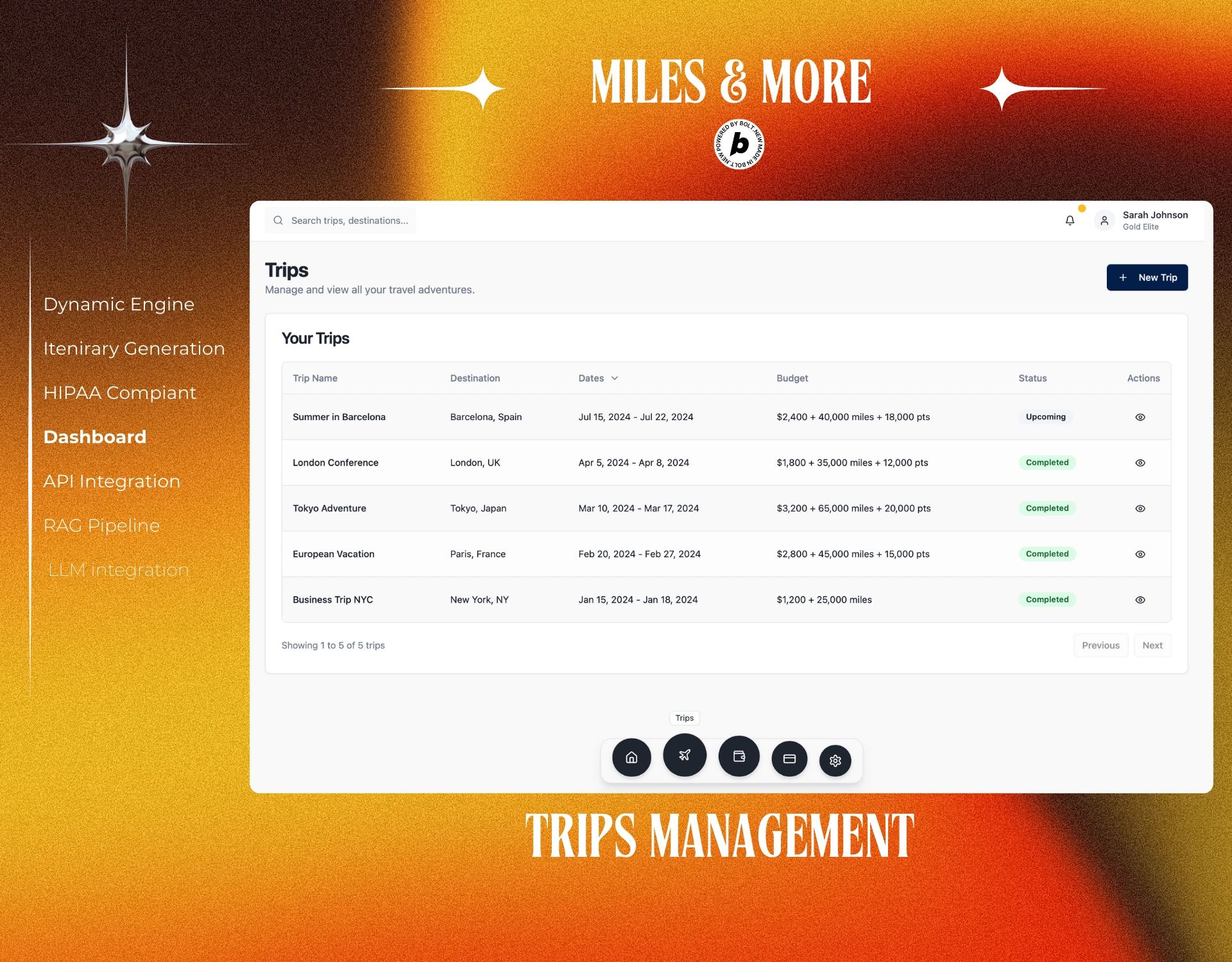

Trip List Table (Sortable with filters).
Allows user to:
Save itinerary.
Edit preferences and re-run search.
Export itinerary as PDF.
7. Admin Dashboard
Technology: React Admin or custom React components Features:
View all users and trips.
Analytics on most popular destinations and budget types.
Loyalty points usage trends.
Error logs & API usage stats.
8. Deployment & Scalability
Technology: Docker + Kubernetes + CI/CD (GitHub Actions) Process:
Frontend deployed to Vercel/Netlify.
Backend deployed to AWS/GCP/Azure.
PostgreSQL hosted on managed service (RDS/Cloud SQL).
APIs secured with keys and rate limits.
Continuous integration ensures automated testing before deployment.
Like this project
Posted Aug 13, 2025
AI-powered travel planning web app with budget and loyalty points optimization, real-time flight/hotel data, RAG-based itinerary generation & fully responsive.
