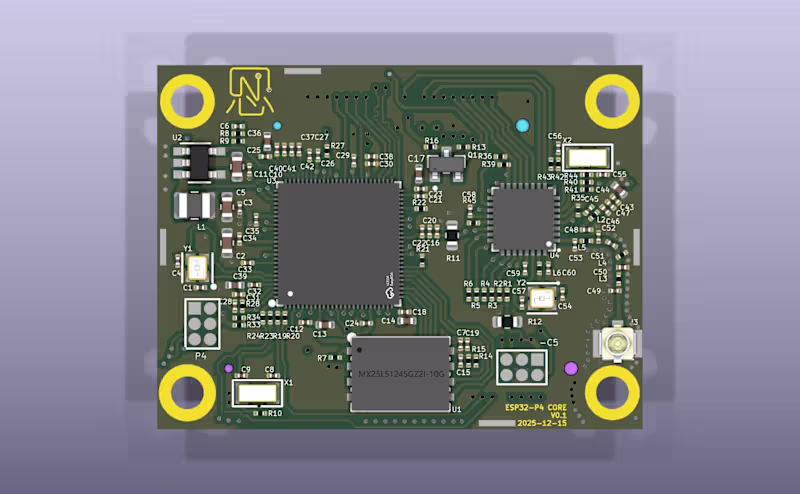

Embedded Systems ProjectsEmbedded Systems ProjectsESP32-P4 SOM: Dual-Core AIoT Hub with Advanced Multimedia
Overview:
The ESP32-P4 SOM is a flagship, low-power, cost-effective computing core launched in 2026. Featuring a unique ESP32-P4 + ESP32-C6 dual-chip architecture, it bridges high-performance application processing with advanced WiFi 6 and Bluetooth 5 (LE) connectivity. This "Minimum System" is engineered into a compact 40x30mm footprint, providing a ready-to-use engine for the next generation of smart multimedia devices.
► Skills Used:
● Dual-SoC System Architecture (P4 + C6)
● DFM & Yield Optimization
● EMI/EMC Engineering
● BOM Optimization
● Firmware Development(C/C++).
► "One Board, Triple Mounting Options":
Designed for maximum versatility across different development phases and deployment environments:
● Flexible Integration: A single PCBA design supports three mounting configurations: Dual BTB connectors, Single BTB, or LGA (Land Grid Array). This allows developers to switch between easy-to-swap modules for prototyping and low-profile, vibration-resistant mounting for mass production.
● Rapid Development Ecosystem: By routing up to 80 GPIOs to the module interface, clients only need to design a simple 1-4 layer carrier board. This drastically shortens the R&D cycle and reduces hardware validation costs.
● Highly Integrated Design: Despite its small size, the module houses the SoC, PSRAM, Flash, PMIC, and the ESP32-C6 communication co-processor, complete with reserved shielding for superior EMI performance.
► Key Engineering & Product Features:
● Network Versatility: In addition to WiFi 6, the module provides a dedicated Ethernet extension interface, ensuring high-speed and ultra-stable wired connectivity for industrial environments.
● High-Speed Multimedia: Native support for MIPI DSI (Display) and MIPI CSI (Camera), enabling high-definition visual interfaces and real-time image processing.
● Advanced Audio & Storage: Integrated voice input and audio output interfaces for interactive systems, plus high-speed TF card support for localized data storage.
● Connectivity-Rich: Powered by the ESP32-C6 co-processor to provide stable WiFi 6 and BLE connectivity, ensuring the P4 main processor remains dedicated to heavy computational tasks.
● Massive I/O Capability: With 80 GPIOs available, the module can control complex arrays of sensors, actuators, and peripheral devices simultaneously.
► Target Applications & Solutions:
● Smart Security: Advanced Access Control Systems utilizing MIPI camera input and local processing.
● Voice AI: Smart AI Speakers with high-fidelity audio I/O and localized voice recognition capabilities.
● Industrial HMI: Low-cost Human-Machine Interfaces that require fluid graphical displays and low power consumption.
This ESP32-P4 SOM represents the pinnacle of "Efficiency Meets Performance." By decoupling the high-speed processing core from the carrier board, I provide a pre-verified, mass-production-ready platform that allows you to deploy complex, multimedia-rich AIoT solutions with unmatched speed and technical confidence.
