Bench Grinder Mechanical Assembly | SolidWorks CAD & Engineering Documentation
This project showcases my end-to-end workflow for creating a manufacturing-ready mechanical assembly in SolidWorks. The goal was to accurately model a bench grinder while demonstrating the level of detail I bring to industrial equipment and mechanical product development.

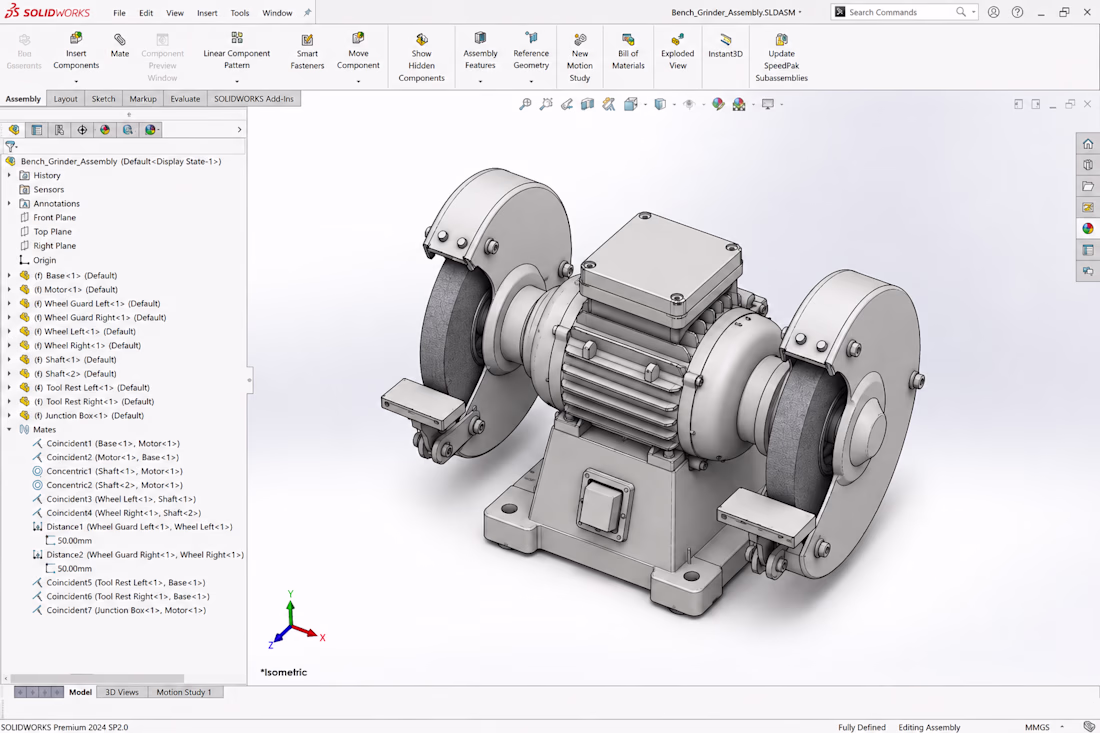

Starting from the overall product architecture, I created a fully parametric 3D assembly with individually modeled components, realistic part relationships, and assembly constraints. Every major component, including the base, motor housing, grinding wheels, wheel guards, tool rests, shafts, and junction box, was designed to reflect practical engineering and manufacturability.

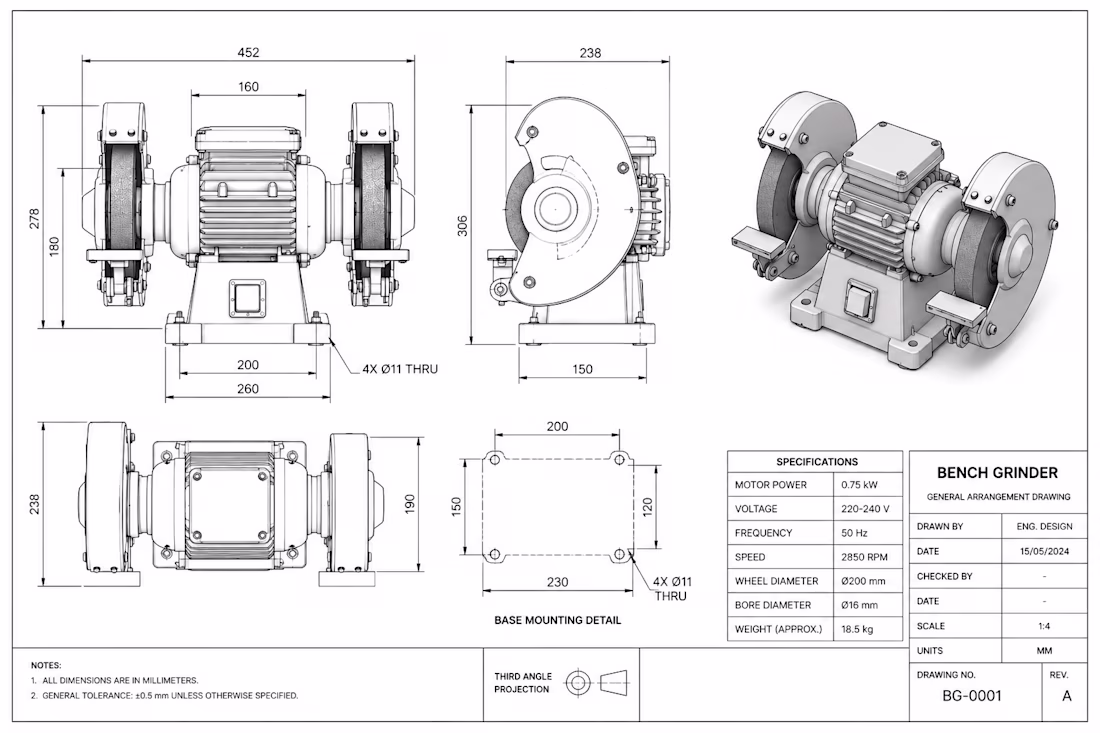

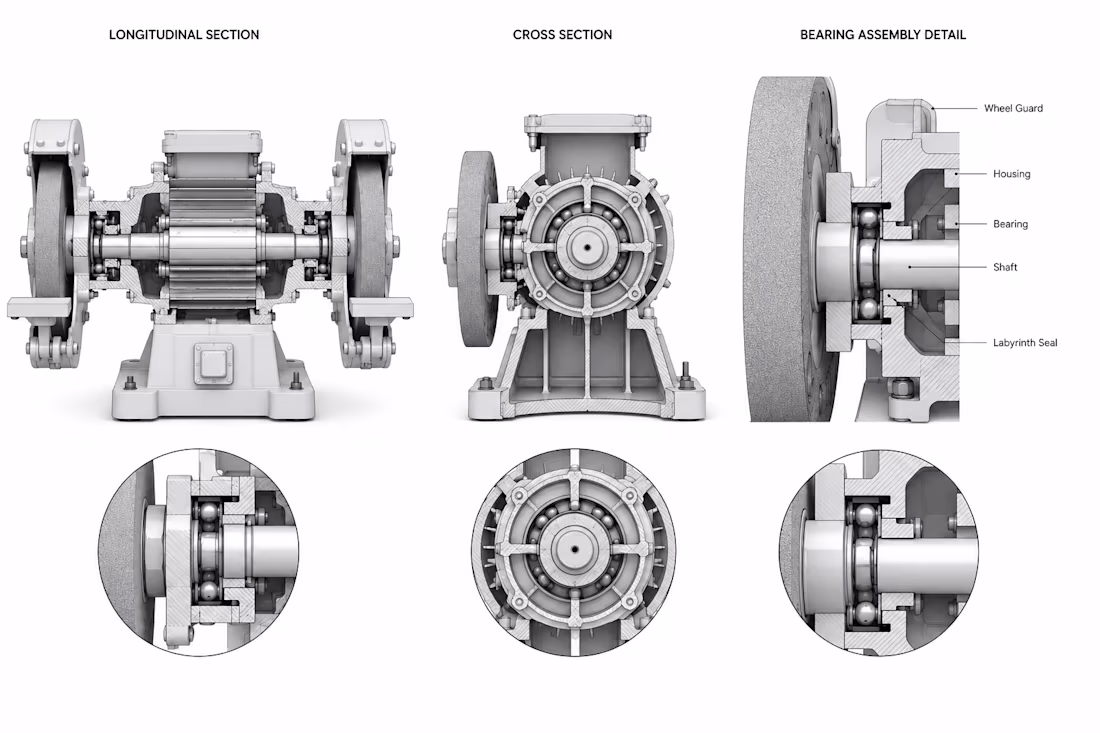

Beyond the CAD model, I produced detailed engineering documentation, including orthographic drawings, dimensional layouts, mounting details, and section views that reveal the internal shaft and bearing assemblies. These drawings communicate how the product is built, assembled, and manufactured while maintaining clear technical standards.
This project highlights my ability to transform a product concept into a clean, organized, and production-ready CAD package suitable for prototyping, engineering review, and manufacturing documentation.
Deliverables
Fully parametric SolidWorks 3D assembly
Individual mechanical part modeling
Assembly mates and constraints
Technical drawings with dimensions
Orthographic and isometric views
Section and detail views
Manufacturing-ready documentation

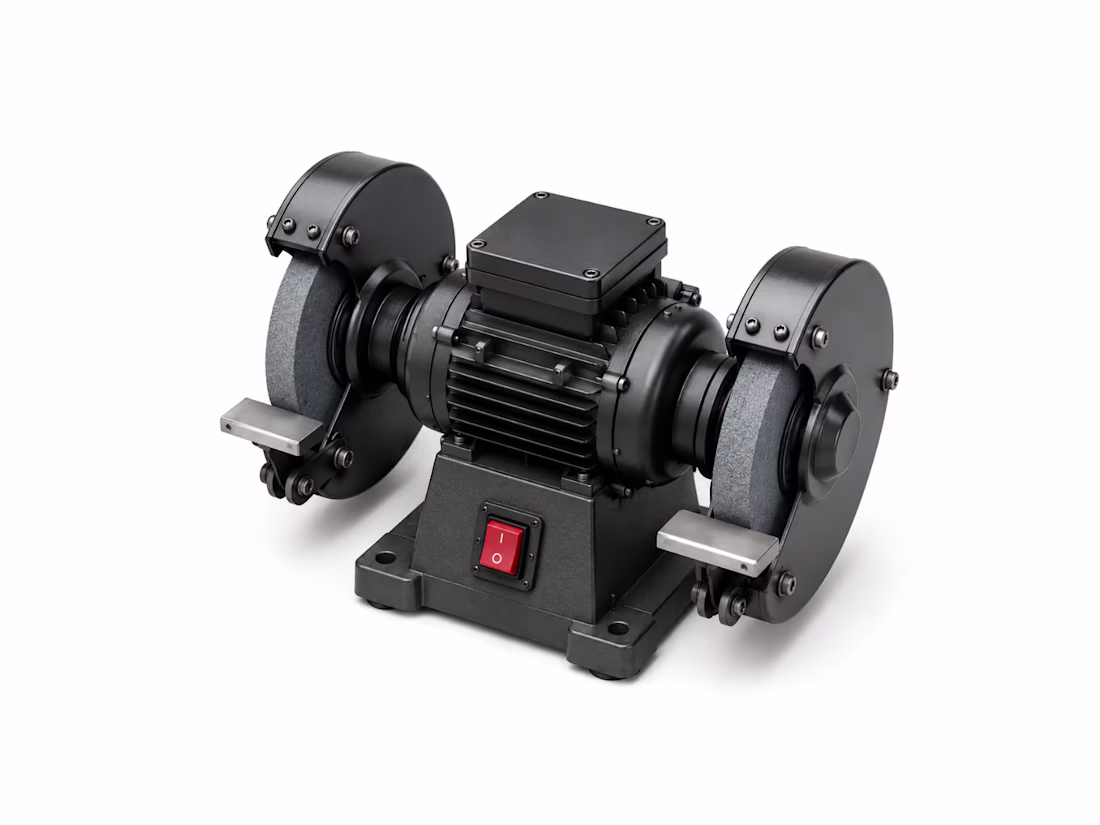

High-quality product rendering
Tools Used: SolidWorks • Mechanical Design • CAD Modeling • Engineering Drawings • Product Visualization.
