PREMIUM COFFEE TAMPER CAD ERGONOMICS CMF TECHNICAL DRAWING DMF 3D PRODUCT RENDERING

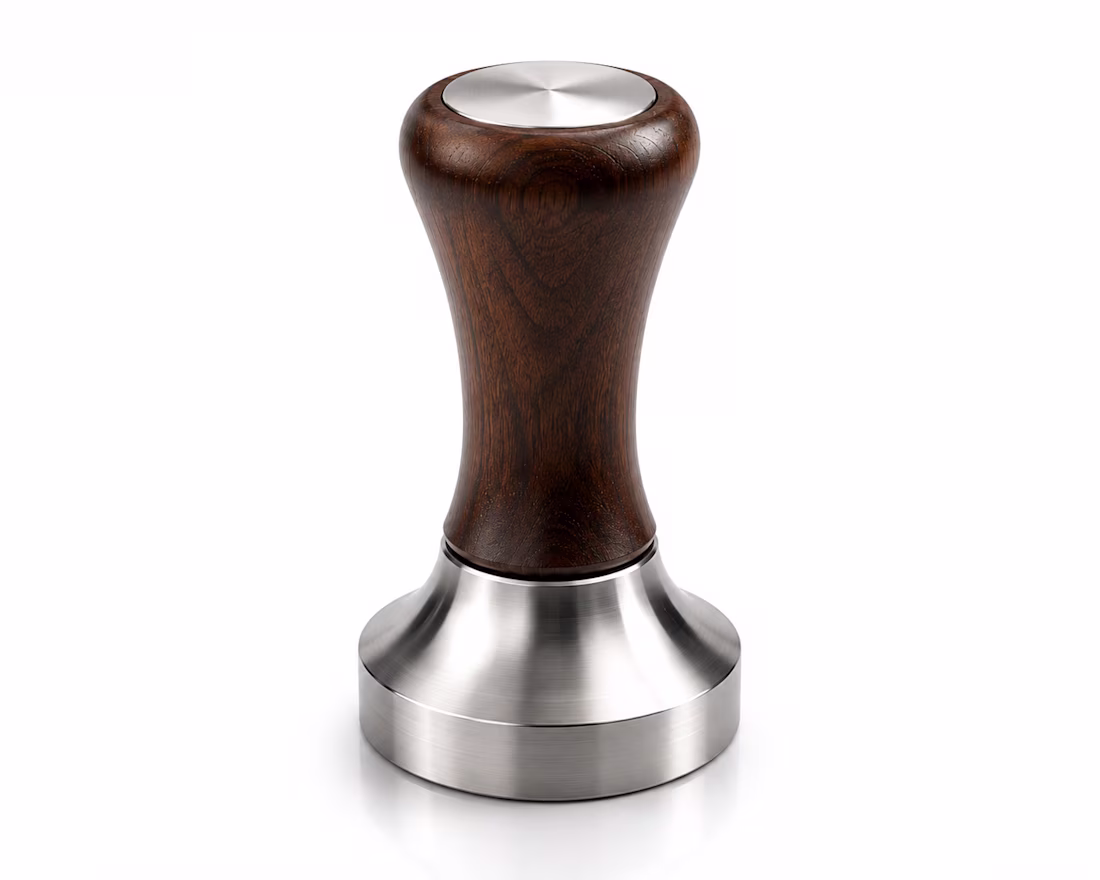

I engineered an ergonomic premium coffee tamper built to ensure perfectly level tamping and consistent extraction pressure. Modeled in CAD, the design features a weighted stainless steel base and an interchangeable handle structured for reduced wrist fatigue. I applied strict DFM principles for precision CNC turning and knurling, ensuring minimal material waste and tight concentric tolerances. I delivered complete 2D technical drawings, a CMF spec sheet, and photorealistic renders highlighting the brushed metal and turned hardwood finishes.
#productdesign #industrialdesign #productdevelopment #CADdesign #CADdrafting #solidWorks #fusion360 #3Dmodeling #mechanicaldesign #productengineering #prototypedesign #rapidprototyping #Designformanufacturing #Technicaldrawings #Productrendering #Consumerproductdesign #Productinnovation #Engineeringdesign #Manufacturingdesign #Conceptdevelopment #Productvisualization #Injectionmolddesign #Productdesignconsultant #Mechanicalengineering #Hardwareproductdevelopment #Patentdrawings #Industrialproductdesign #Productdesignengineer #3DCADmodeling #Productdevelopmentconsultant
