Stripe Lead Billing & Payment Automation
Securely vault cards and charge clients per delivered lead
Built a secure Stripe payment workflow that allows lead-generation clients to save payment methods without an immediate charge, then automatically charge those methods when qualified leads are delivered. Integrated the payment lifecycle with GoHighLevel and designed webhook-driven status synchronization for successful and failed payments.
Client
Che Gibson
Founder, Hospital Hill
Role
Full-Stack / Backend Engineer
Year
2026
Category
Fintech · Payment Automation · CRM Integration
Confidential Enterprise Project (Protected Under NDA)
Proprietary source code, database architectures, and internal endpoint credentials are confidential. This case study highlights non-proprietary architectural patterns, technical solutions, and verified outcomes.
Executive Overview & The Problem#
The client operates a lead-generation business where customers receive leads generated through advertising campaigns such as Google Ads and Meta.
The billing model is simple:
A client receives a lead → the lead is delivered → the client is charged for that lead.
The technical challenge was making this workflow secure, automated, and flexible enough to support repeated charges throughout the day.
The client needed a way to collect a customer's card details upfront without charging them immediately, then use the saved payment method later whenever a lead was delivered.
The initial pricing model included:
Google Calls + Lead Form: $105 per lead
Meta Lead Form: $69 per lead
Future support for client-specific pricing and different lead types
The main requirements were:
Securely collect and save client payment methods
Never store raw card information in the application
Charge clients later when leads are delivered
Support multiple charges throughout the day
Connect billing activity with GoHighLevel
Handle successful and failed payments
Keep the architecture flexible enough to introduce Zapier automation where required
I designed the payment workflow around Stripe SetupIntents for securely saving payment methods and PaymentIntents for processing future charges.
Architectural Approach & System Design#
The architecture separated payment-method collection from payment execution.
This was important because the initial customer interaction should only save the payment method and should not result in an immediate charge.
Payment Method Collection#

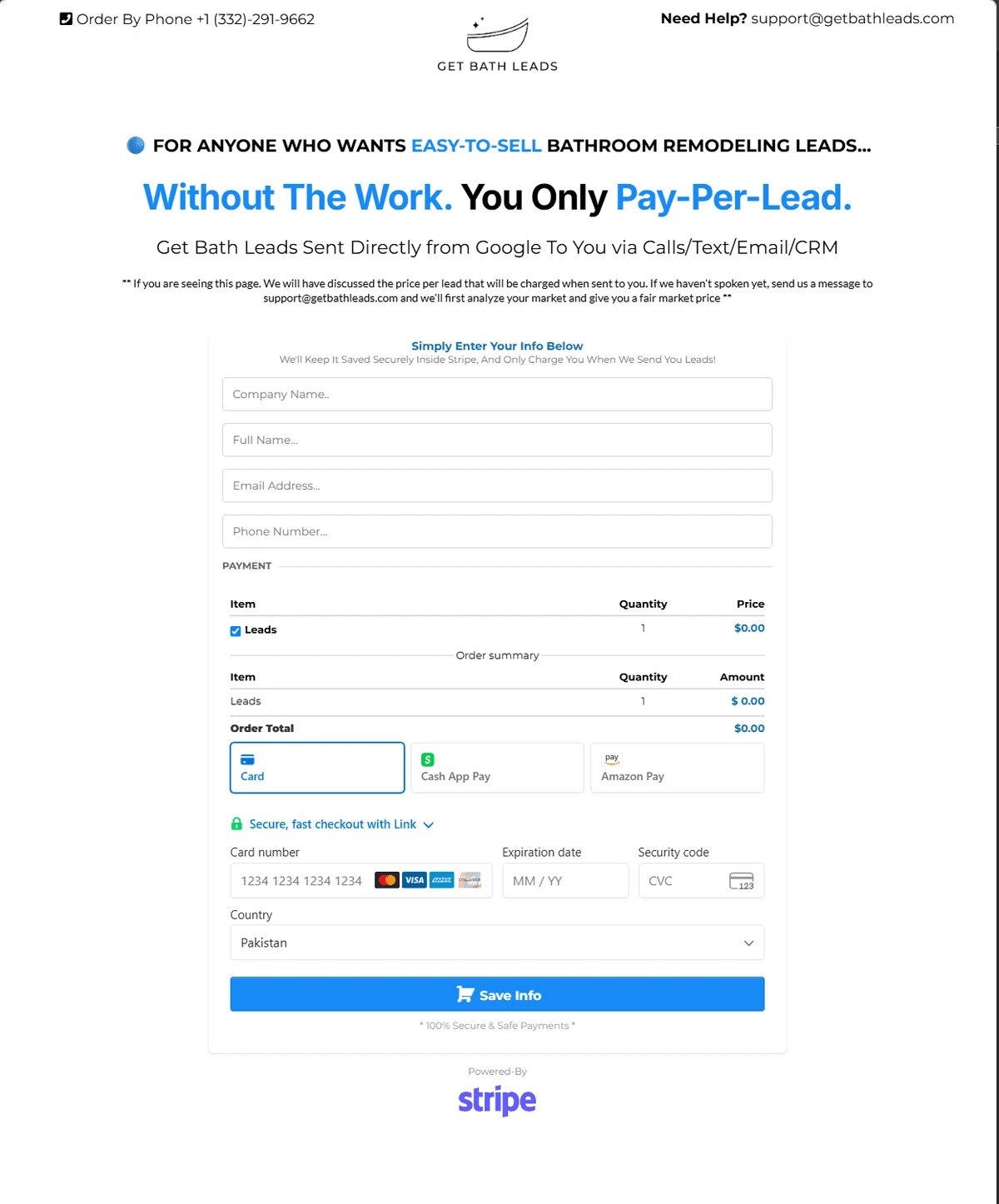

The customer starts from a GoHighLevel landing page where payment information is collected.
The payment flow uses Stripe's SetupIntent architecture:
textCopy
GoHighLevel Landing Page │ ▼ Stripe.js / Secure Card Collection │ ▼ Stripe SetupIntent │ ▼ Payment Method Saved │ ▼ Stripe Customer + Payment Method IDs
The application does not need to store raw card information.
Instead, it works with Stripe references such as:
Stripe Customer ID
Stripe Payment Method ID
This keeps sensitive payment information within Stripe's payment infrastructure.
Lead Delivery & Charging Flow#
The second part of the architecture handles the actual billing event.
When a lead is delivered to a client, the system can use that event to initiate a Stripe PaymentIntent.
textCopy
Google / Meta Lead │ ▼ GoHighLevel │ ▼ Lead Delivered to Client │ ▼ Webhook / Automation Trigger │ ▼ Identify Client │ ▼ Determine Lead Price │ ▼ Stripe PaymentIntent │ ▼ Charge Saved Payment Method
The architecture was designed around a direct webhook-first approach, rather than making Zapier a mandatory dependency for the core payment process.
Zapier could still be used where it makes sense for additional workflow automation.
Flexible Lead Pricing#
The billing logic was designed to keep pricing separate from payment execution.
The initial pricing rules were:
textCopy
Google Lead → $105 Meta Lead → $69
This approach also leaves room for future client-specific pricing.
For example, different customers could eventually have different prices for the same lead source or lead type without requiring major changes to the payment infrastructure.
Payment Lifecycle#
Each lead can represent an independent billing event.
textCopy
Lead Delivered │ ▼ Identify Client │ ▼ Retrieve Stripe Payment Method │ ▼ Calculate Lead Price │ ▼ Create PaymentIntent │ ▼ Confirm Payment │ ├───────────────┐ ▼ ▼ Succeeded Failed │ │ └───────┬───────┘ ▼ Update CRM
Using individual PaymentIntents keeps each lead charge independently identifiable and easier to reconcile.
Key Technical Challenges & Solutions#
1. Saving Cards Without Charging Customers#
The biggest requirement was collecting payment information without taking an initial payment.
A traditional payment flow was therefore not suitable for this use case.
I used Stripe's SetupIntent architecture to separate payment-method collection from payment execution.
The customer can provide their card details, Stripe securely handles the payment method setup, and the system retains the necessary Stripe identifiers for future billing.
This means the application does not need to store sensitive card details.
The resulting flow is:
textCopy
Customer Card │ ▼ Stripe.js │ ▼ SetupIntent │ ▼ Payment Method │ ▼ Stripe Payment Method ID
2. Charging the Same Client Multiple Times#
Clients can receive several leads throughout a single day.
The billing system therefore cannot be designed around a single payment.
Instead, the saved Stripe Payment Method can be associated with multiple future PaymentIntents.
For example:
textCopy
Client │ ├── Lead #1 → PaymentIntent → $105 │ ├── Lead #2 → PaymentIntent → $105 │ ├── Lead #3 → PaymentIntent → $69 │ └── Lead #4 → PaymentIntent → $105
Each lead becomes its own billing event, giving the business a clear relationship between the delivered lead and its corresponding payment.
3. Connecting Stripe With GoHighLevel#
GoHighLevel manages the lead-generation and client workflow, while Stripe handles payment processing.
Rather than tightly coupling the two systems, I designed the integration around events.
textCopy
GoHighLevel │ │ Lead Delivered ▼ Webhook │ ▼ Payment Processing │ ▼ Stripe │ ├── Payment Succeeded │ └── Payment Failed │ ▼ CRM Status / Automation
This approach keeps Stripe responsible for payment processing while GoHighLevel remains responsible for CRM and lead operations.
It also provides flexibility to introduce Zapier for additional automation without making it responsible for the core payment logic.
Results & Business Impact#
The implementation established the foundation for an automated lead-based billing system.
The completed workflow enabled the business to:
Collect client payment information without an immediate charge.
Securely store payment methods through Stripe.
Work with Stripe Customer and Payment Method IDs instead of raw card information.
Trigger individual charges when leads are delivered.
Support different pricing for Google and Meta leads.
Support repeated charges for the same client throughout the day.
Connect payment events with the client's GoHighLevel workflow.
Handle payment success and failure through webhook-based events.
Keep the architecture flexible for future pricing and automation requirements.
The most important architectural decision was keeping payment processing independent from CRM automation.
Stripe remains responsible for payment security and transaction processing, while GoHighLevel manages leads and customer workflows. Webhooks provide the bridge between the two systems, creating a cleaner and more maintainable integration.
Gallery

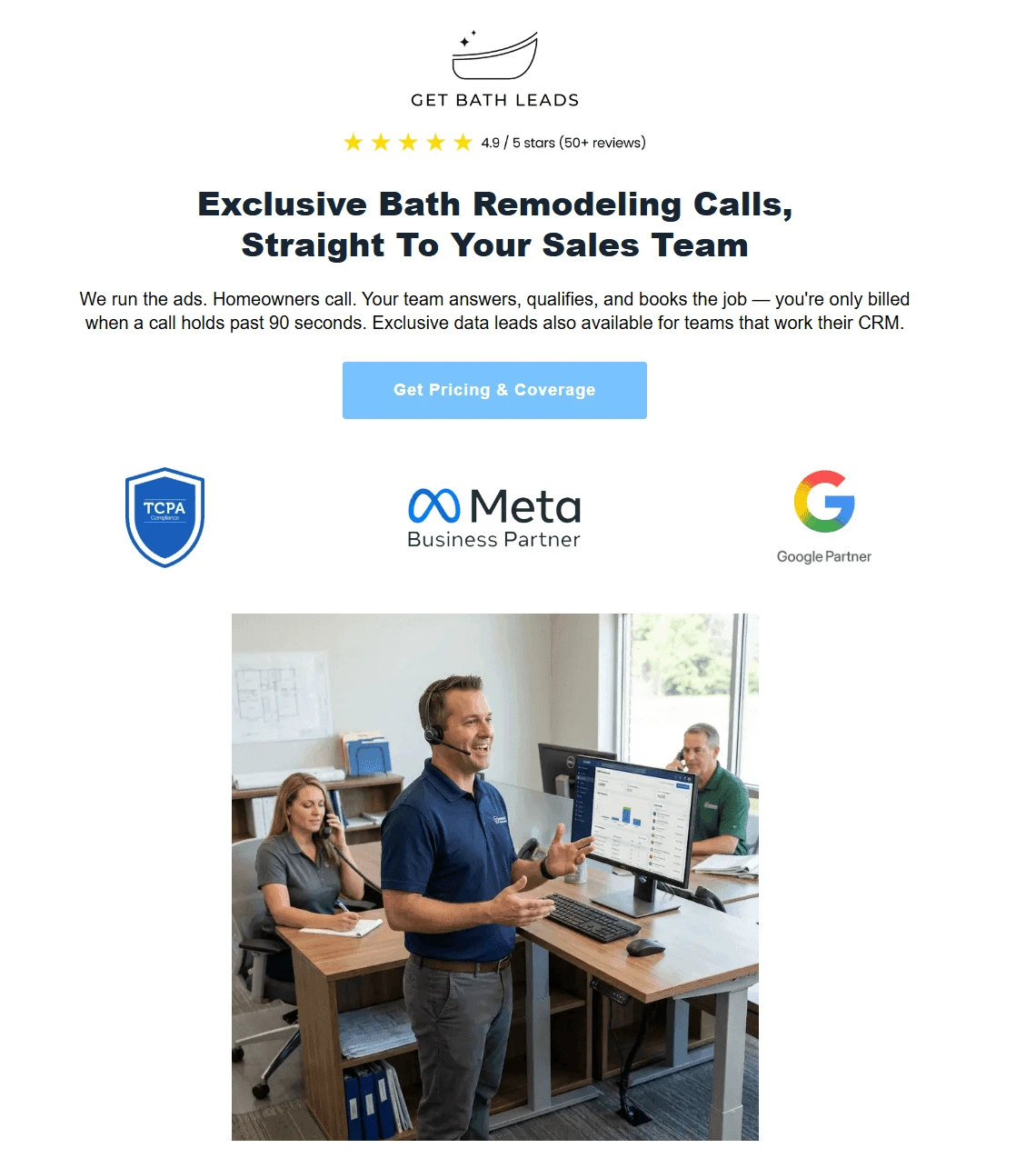

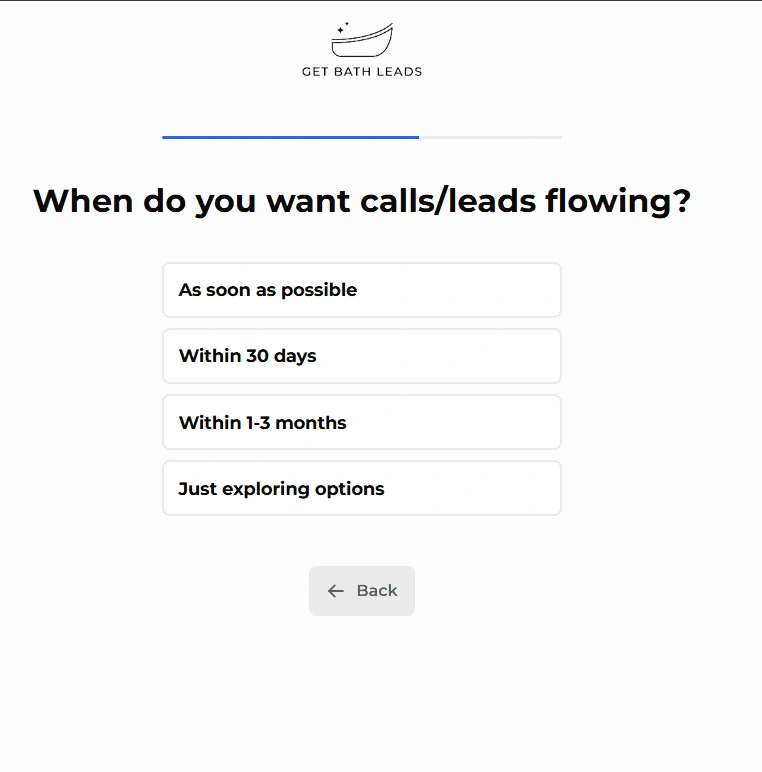

1 / 6screenshot 2026 09 05 210427

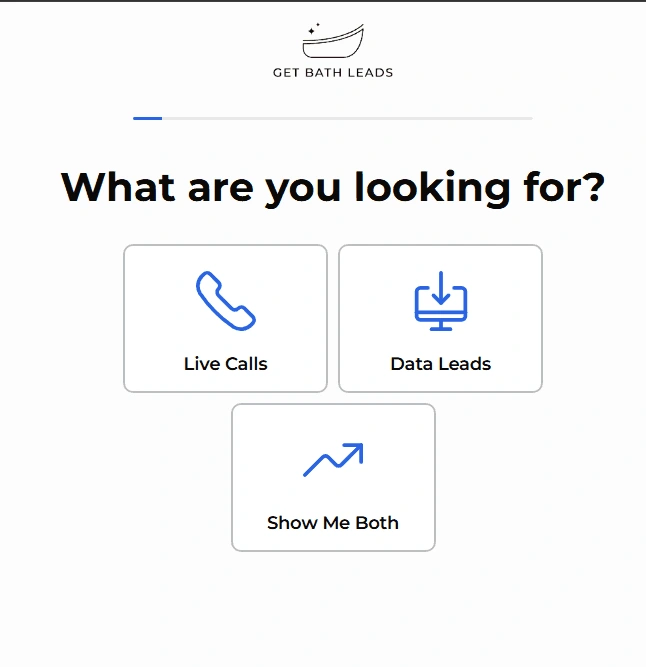

2 / 6screenshot 2026 09 05 210333

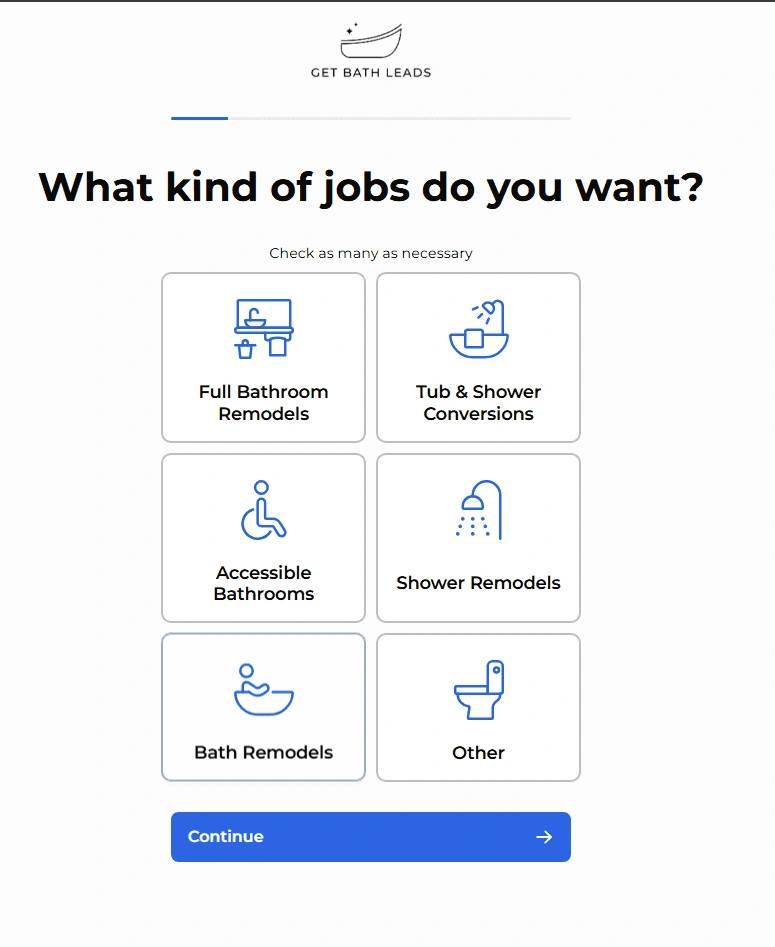

3 / 6screenshot 2026 09 05 210309

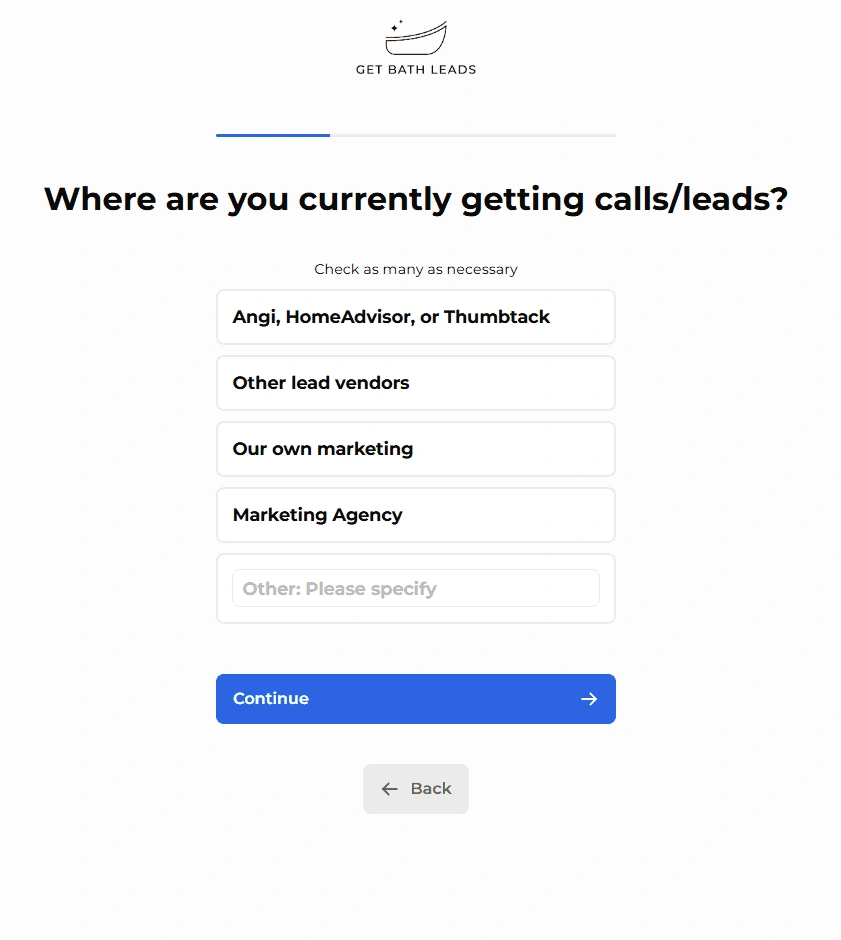

4 / 6screenshot 2026 09 05 210241
5 / 6screenshot 2026 09 05 210228
6 / 6screenshot 2026 09 05 210159
Tech stack
Stripe API
Stripe SetupIntents
Stripe PaymentIntents
Stripe.js
GoHighLevel
Webhooks
REST APIs
Zapier
Timeline & Milestones
(Sep 2025)
Discovery & Payment Architecture
Defined the card-vaulting, lead delivery, charging, and CRM synchronization workflow
(Sep–Oct 2025)
Stripe Integration
Implemented SetupIntent-based payment-method collection and Stripe customer/payment-method handling
(Oct 2025)
Lead Billing Flow
Built the PaymentIntent flow for charging stored payment methods based on lead source and configured pricing
(Oct 2025)
Integration & Testing
Connected the workflow with GoHighLevel/Zapier and prepared Google/Meta campaign flows for end-to-end testing
Outcomes & Impact
SetupIntent-based
Card Vaulting
Enabled secure payment-method collection without an immediate customer charge
Per-lead PaymentIntents
Lead Billing
Designed the billing flow to charge stored payment methods whenever leads are delivered
$105 / $69
Initial Pricing
Implemented the initial pricing model for Google and Meta lead sources
Webhooks + Zapier fallback
Automation Architecture
Prioritized direct webhook integration while keeping Zapier available for workflow automation
