StockPredictor

Predict the stock price with AI models

Background

Everyone loves stock. Everyone hates stock.

It's so hard to figure out which direction the price will go in next few weeks. If you are a technical analyst, you may be interested in leveraging AI to dig the potential pattern of a given stock.

MSRA has open-sourced a powerful tool for quantitative investment, which is called Qlib. We could try to use this framework to construct a useful service for our daily trading.

A simple scenario may like,

Me: Please tell me how much the stock xxx will rise at the end of the next 2 weeks? Service: It will decrease 8% from now till that time. Me: Oh shit, I will sell them!

Quick Start

Installation & Deployment

It's highly encouraged to use a virtual environment with Anaconda. Please visit Anaconda website to download a suitable version for your system and install it. Then run following commands to create a clean Python 3.8 environment with name py38.

conda create -n py38 python=3.8
conda activate py38

Now, let's prepare the dependencies and data.

pip install numpy
pip install --upgrade cython
pip install yahooquery
pip install bs4

# <your_workspace_dir> is the folder where we put the Qlib and StockPredictor repositories.
cd <your_workspace_dir>
git clone https://github.com/microsoft/qlib.git && cd qlib
pip install .
python scripts/data_collector/yahoo/collector.py download_data --source_dir ~/.qlib/stock_data/source/cn_data --start 1999-01-01 --end 2022-12-31 --delay 1 --interval 1d --region CN
python scripts/data_collector/yahoo/collector.py normalize_data --source_dir ~/.qlib/stock_data/source/cn_data --normalize_dir ~/.qlib/stock_data/source/cn_1d_nor --region CN --interval 1d
python scripts/dump_bin.py dump_all --csv_path ~/.qlib/stock_data/source/cn_1d_nor --qlib_dir ~/.qlib/qlib_data/cn_data --freq day --exclude_fields date,symbol

After that, clone this repository and install the dependencies.

cd <your_workspace_dir>
git clone https://github.com/jingedawang/StockPredictor.git && cd StockPredictor
pip install -r stock_predictor/requirements.txt
playwright install
playwright install-deps

Since we use MongoDB to host our predictions, run following commands to install and start MongoDB service.

# Install MongoDB.
# Following commands are for Ubuntu 20.04, change "focal" to other name if you are using other Ubuntu versions.
wget -qO - https://www.mongodb.org/static/pgp/server-6.0.asc | sudo apt-key add -
echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu focal/mongodb-org/6.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-6.0.list
sudo apt-get update
sudo apt-get install -y mongodb-org
# Start MongoDB.
sudo systemctl start mongod

Train a prediction model.

python stock_predictor/train_two_week_predictor.py

Do some setup work for the prediction service. This includes loading the stock list into database and doing a complete prediction for all the stocks.

python stock_predictor/setup.py

Before starting the service, we need to setup a schedule to automatically update the data everyday after the market closing time. Please open the update_data.crontab file and change the path of the collector.py script according to your local directory. This manual operation should be eliminated later.

# Use tmux to monitor the execution of the script.
sudo apt install tmux
tmux new-session -d -s update-data
tmux send-keys -t update-data 'conda activate py38' Enter
crontab config/update_data.crontab

Finally we could start our prediction service.

python stock_predictor/app.py

Web API

Once the prediction service started, you could send requests to the following methods. Note that stockprediction.org is our public server address, we have deployed an app here already. You could test the web API on your own machine if you replaced the domain to your address.

API 1: Get stock list

Url: /stock/list
Description: Get the stock list in China market.
Parameter: None
Response: A JSON string.
Example for request http://stockprediction.org:5000/stock/list:
[
	{
		"id": "000001",
		"pinyin": "PAYH",
		"name": "平安银行",
		"enname": "Ping An Bank Co., Ltd."
	},
	{
		"id": "000002",
		"pinyin": "WKA",
		"name": "万科A",
		"enname": "China Vanke Co.,Ltd."
	},
	{
		"id": "000004",
		"pinyin": "GNKJ",
		"name": "国农科技",
		"enname": "Shenzhen Cau Technology Co.,Ltd."
	}
]

API 2: Predict

Url: /stock/<id>
Description: Predict the after-two-weeks price for the specified stock.
Parameter: <id>: The id of the stock.
Response: A JSON string containing both history prices and predicted price.
Example for request http://stockprediction.org:5000/stock/600000:
{
	"id": "600000",
	"pinyin": "PFYH",
	"name": "浦发银行",
	"qlib_id": "SH600000",
	"enname": "Shanghai Pudong Development Bank Co.,Ltd.",
	"history": [
		{
			"2022-09-06": 7.26
		},
		{
			"2022-09-07": 7.22
		},
		{
			"2022-09-08": 7.24
		},
		{
			"2022-09-09": 7.31
		}
	],
	"predict": {
		"2022-09-23": 7.36
	}
}

API 3: Predict in specific date

Url: /stock/<id>/<date>
Description: Predict the after-two-weeks price for the specified stock at the given date. Only support dates start from 2022-01-01.
Parameter:
    <id>: The id of the stock.
    <date>: The date when performs the prediction.
Response: A JSON string containing both history prices and predicted price for the prediction.
Example for request http://stockprediction.org:5000/stock/600000/2022-04-29:
{
	"id": "600000",
	"pinyin": "PFYH",
	"name": "浦发银行",
	"qlib_id": "SH600000",
	"enname": "Shanghai Pudong Development Bank Co.,Ltd.",
	"history": [
		{
			"2022-04-26": 7.87
		},
		{
			"2022-04-27": 7.83
		},
		{
			"2022-04-28": 7.99
		},
		{
			"2022-04-29": 8.03
		}
	],
	"predict": {
		"2022-05-13": 8.34
	}
}

API 4: Top 5 recommendation

Url: /stock/top5
Description: Recommend the best 5 stocks according to recent predictions.
Parameter: None
Response: A JSON string containing 5 stocks with its predicted increase ratio respectively.
Example for request http://stockprediction.org:5000/stock/top5:
[
	{"id": "600241", "name": "ST时万", "increase": 0.2346},
	{"id": "300003", "name": "乐普医疗", "increase": 0.2305},
	{"id": "300567", "name": "精测电子", "increase": 0.226},
	{"id": "000691", "name": "亚太实业", "increase": 0.2406},
	{"id": "603617", "name": "君禾股份", "increase": 0.1879}
]

Web App

We also provide a web app to make this service convenient for users.

Run following commands to start it.

curl -sL https://deb.nodesource.com/setup_14.x | sudo bash -
sudo apt-get install -y nodejs
cd frontend
npm install
sudo PORT=80 npm start

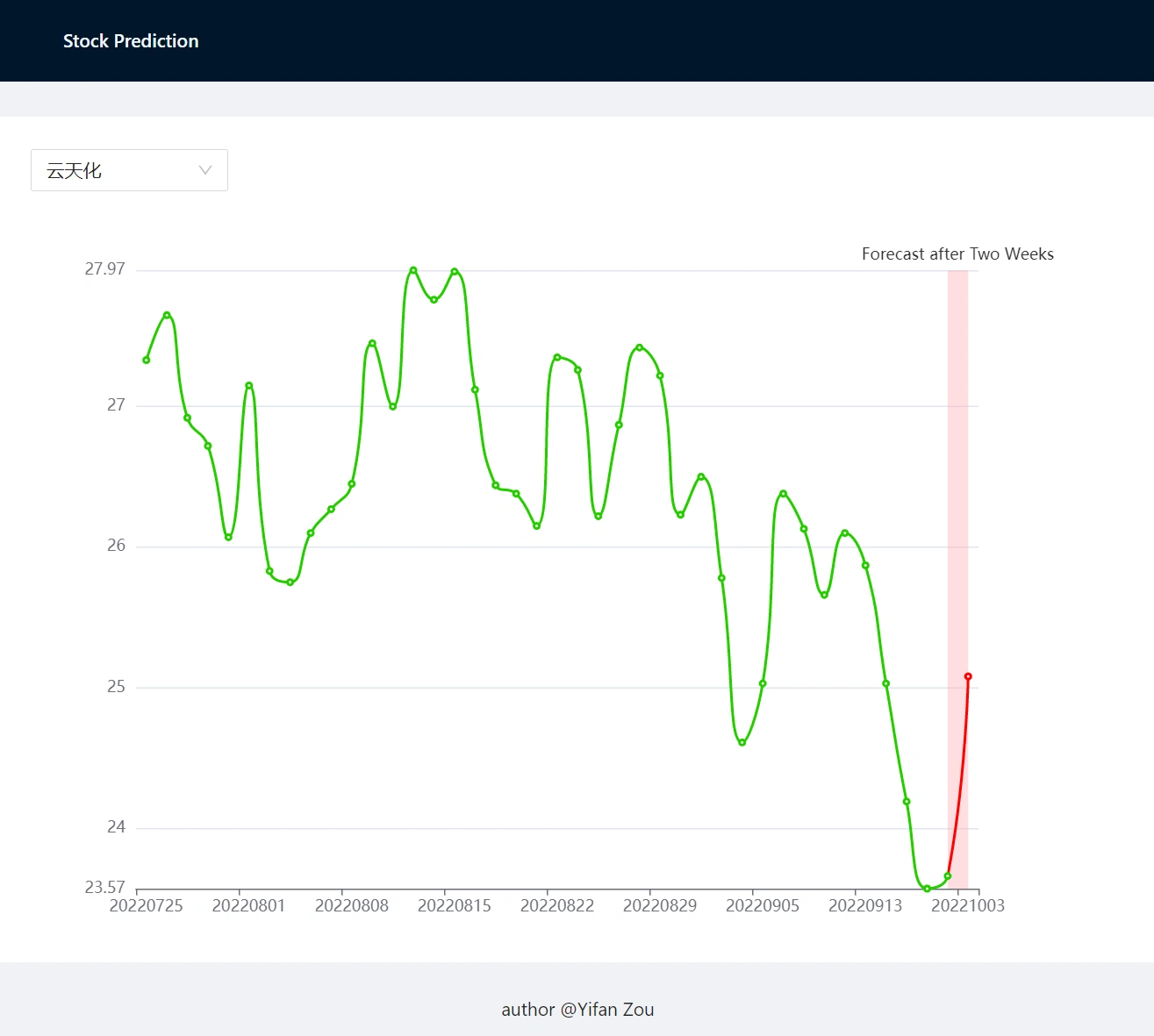

Then go to http://localhost/ and choose the stock you like. The webpage should look like

You can also try our public website here http://stockprediction.org/.

Contribute

What can I contribute?

It's always welcomed to join us as a developer. Please check Issues tab and see if there are anything you could contribute.

If you have any ideas, please feel free to leave them in an issue.

Resources

If you are interested in stock prediction model, there are several resources. The first two should be read carefully. The third one is the video records of AI school course which teaching the theories of stock models and how to use them.

Machine learning framework for stock: microsoft/qlib

Documentation of Qlib: Qlib Documentation

Course in AI School: AI + Stock
