Glass Railing Shop Drawings for Sunrise Corp Center
Antonio Monteagudo

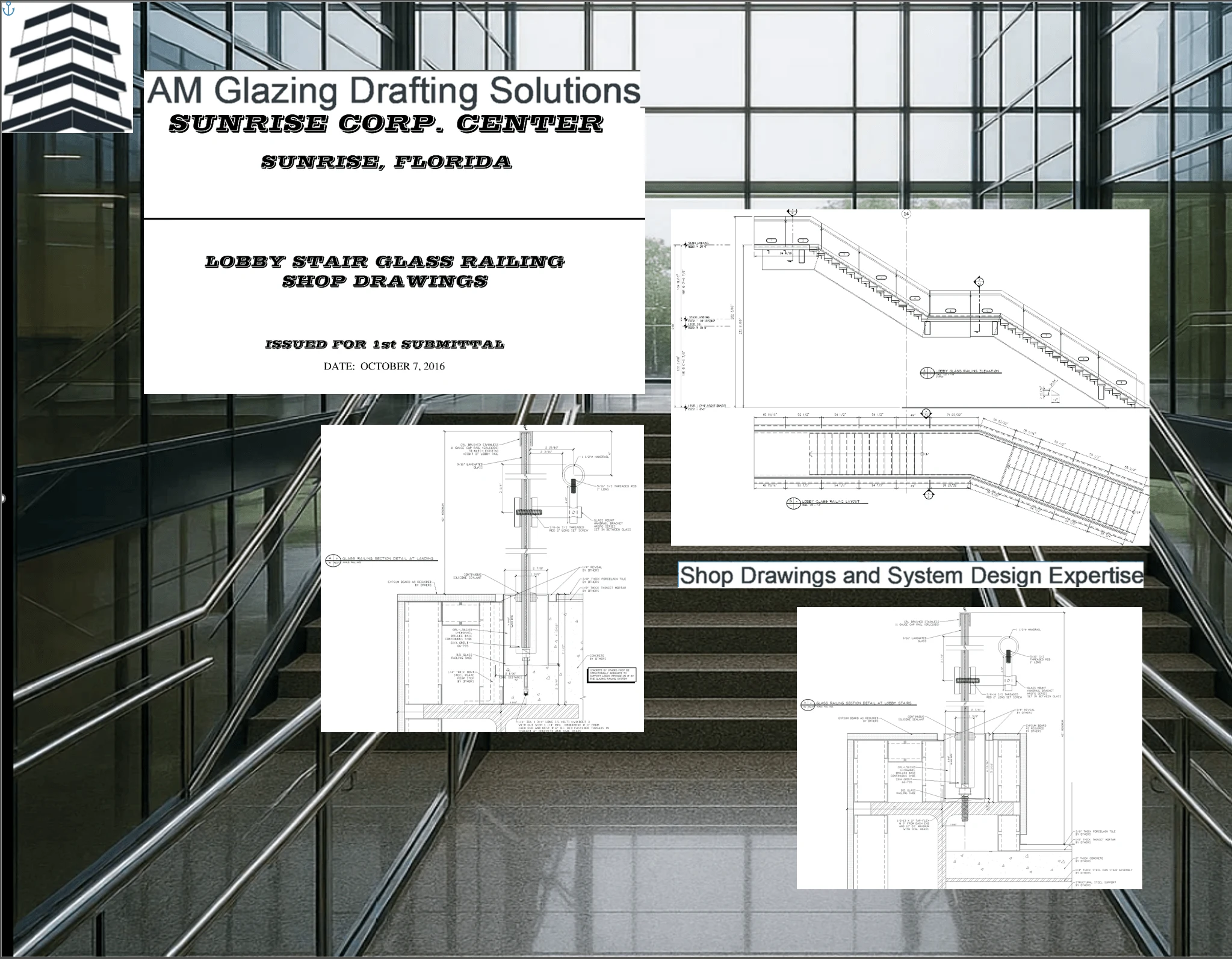

Basic Glass Railing Shop Drawings ā Staircase Lobby System
This submittal includes key elevation views and anchoring details for a lobby stair glass railing system at Sunrise Corp Center, Sunrise, FL.
Scope includes:
Side-mounted glass railing system
Full stair elevation
Anchor and embed details
Delivered as a CNC-ready set with structural coordination in mind.
š ļø Tools used: AutoCAD, Revit
š Project: Sunrise Corp. Center, Florida
Feedback is welcome ā always open to collaboration or subcontracting opportunities.
Like this project
Posted May 11, 2025
Created ready glass railing shop drawings for Sunrise Corp Center.
