RP2040 development board
Kellen Heraty
RP2040 development board

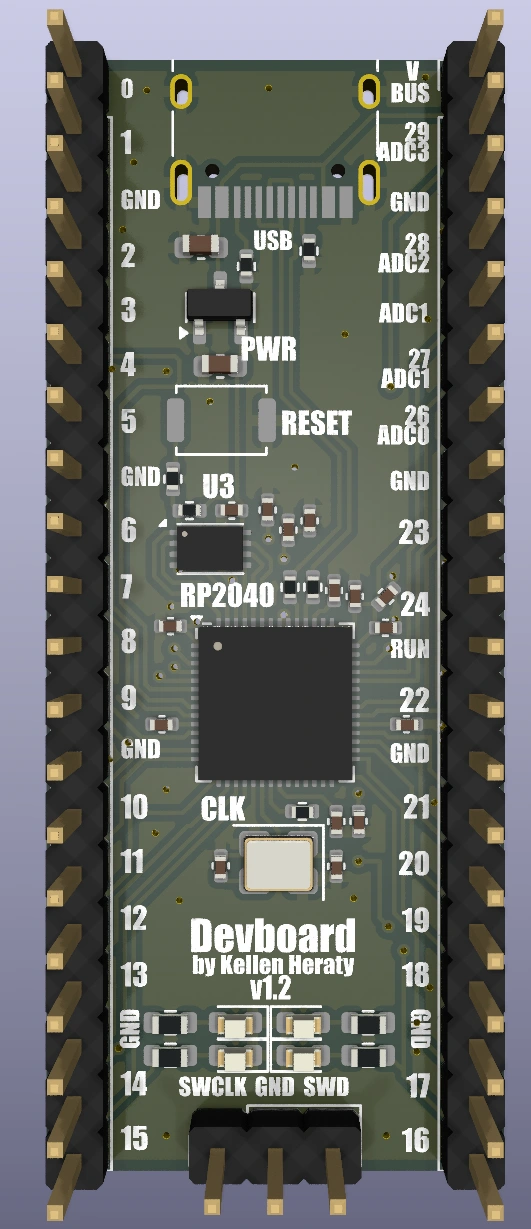

Designed an open-source RP2040 development board, taking the project through schematic design and PCB layout. The board includes four status LEDs on GPIO pins 14–17 and labeled pins to make it easier to use in later projects.
The public repository includes PCB files, firmware, a bill of materials, a design journal, and a PDF of the board. The design is released under the MIT license.
Role: hardware designer. Built for Hack Club Blueprint.
Like this project
Posted Sep 14, 2026
Designed an open-source RP2040 board with labeled pins and four status LEDs. Published PCB files, firmware, a bill of materials, and design notes.
