High-Precision Engineering 3D Models
Junaid Ali

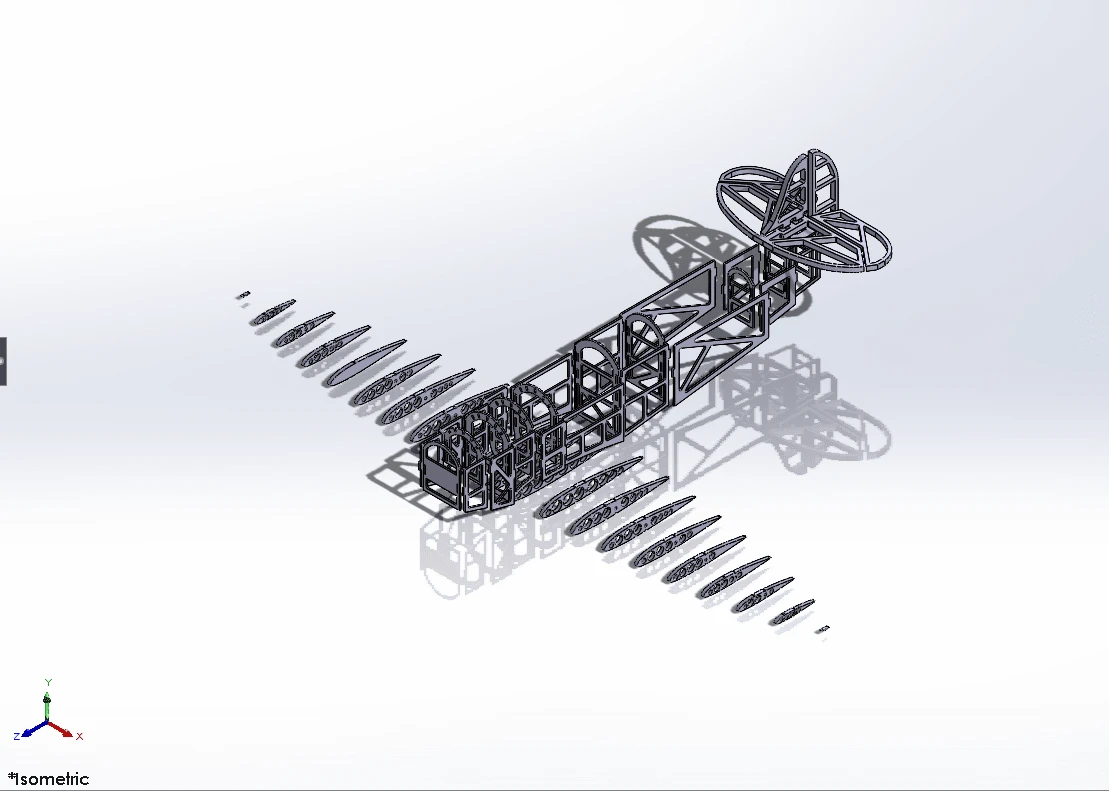

Designed the internal structure of a scaled down spitfire RC-plane which would be then laser cut, assembled and fabricated for a university competition.
RC-plane 1
Another simple design of internal structure of an RC-plane for the same purpose mentioned below.
RC-plane
This beam was designed to have minimum weight and minimum deflection when a 10kg load was applied at its center. This product was designed for the ASME competiton and the beam underwent a deflection of 0.45 mm.
Beam Design
Below is a high-quality rendering of an airplane(A380) in a solidpart file that was asked by client.
Like this project
Posted Jul 5, 2024
Designed complex engineering parts with high precision and accuracy, ensuring zero errors and meeting client specifications promptly.
