3D CAD Modeling – Mechanical Flange Clamp Component

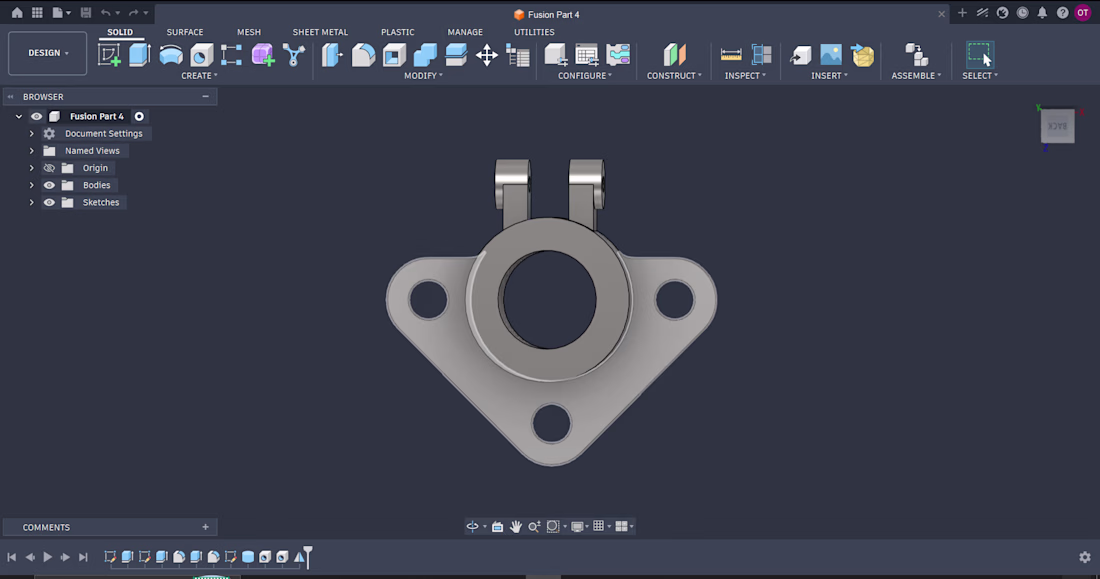

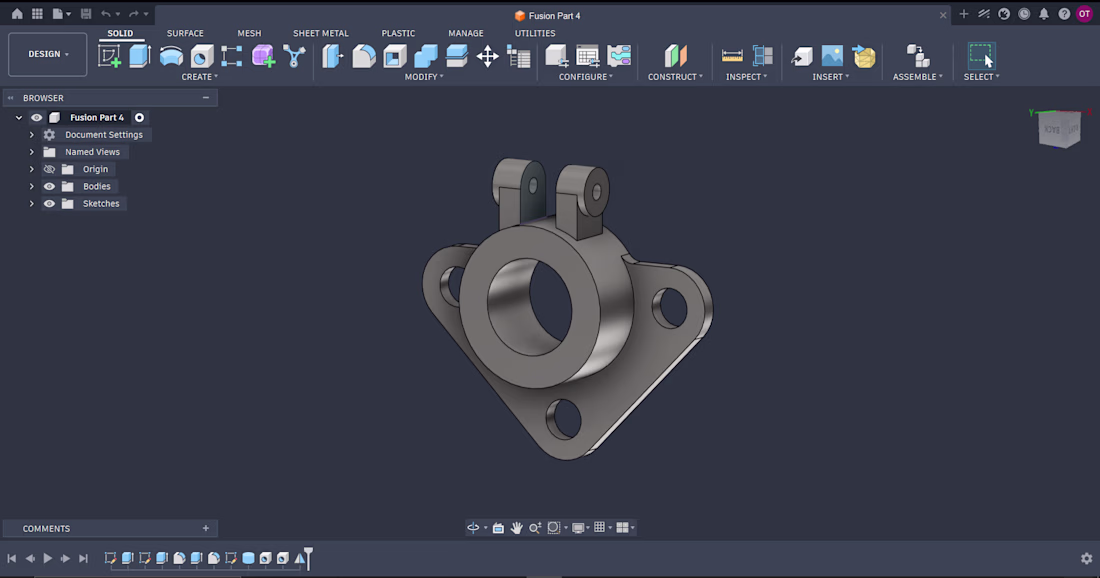

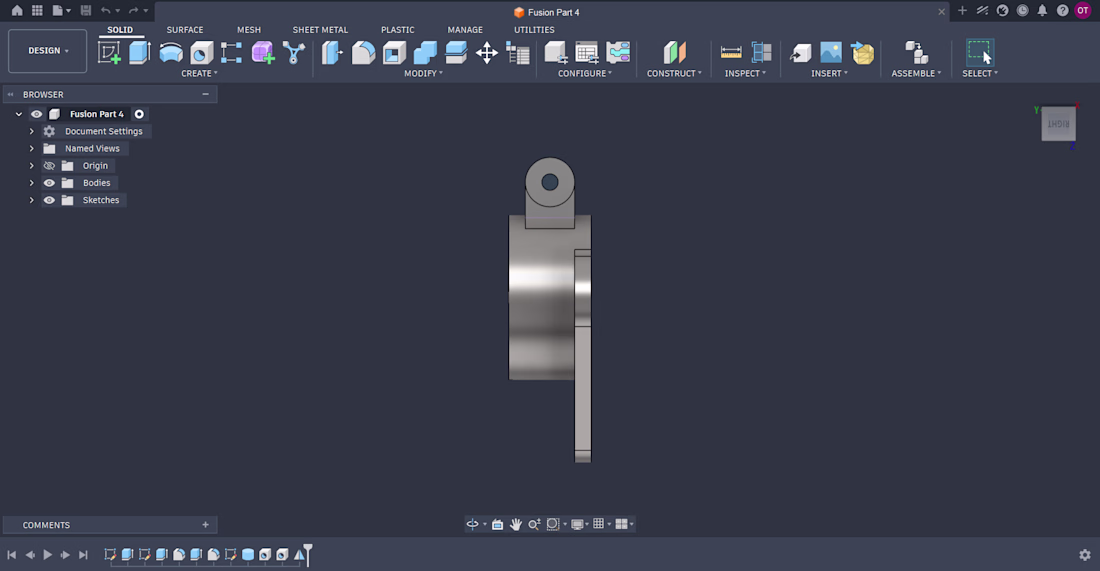

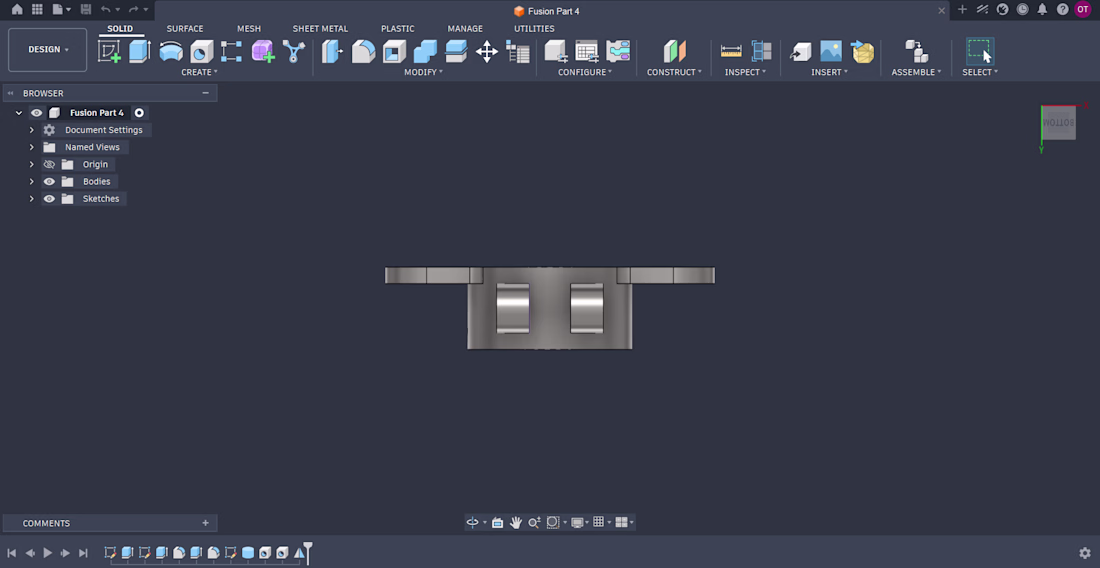

Precision 3D mechanical model designed in Autodesk Fusion 360, featuring a dual-bolt mounting flange integrated with a split-collar clamp mechanism.
Technical Details:
Parametric geometry with a slotted clamping collar, precision mounting holes, and reinforced structural ribs.
Engineering Standards: Modeled with geometric constraints to ensure tight tolerances, structural integrity, and high manufacturability.
Suitable for high-precision CNC machining or rapid prototyping (3D printing).
Software : Autodesk Fusion 360
3D DesignProduct DesignAutodesk Fusion 360Fusion 360
