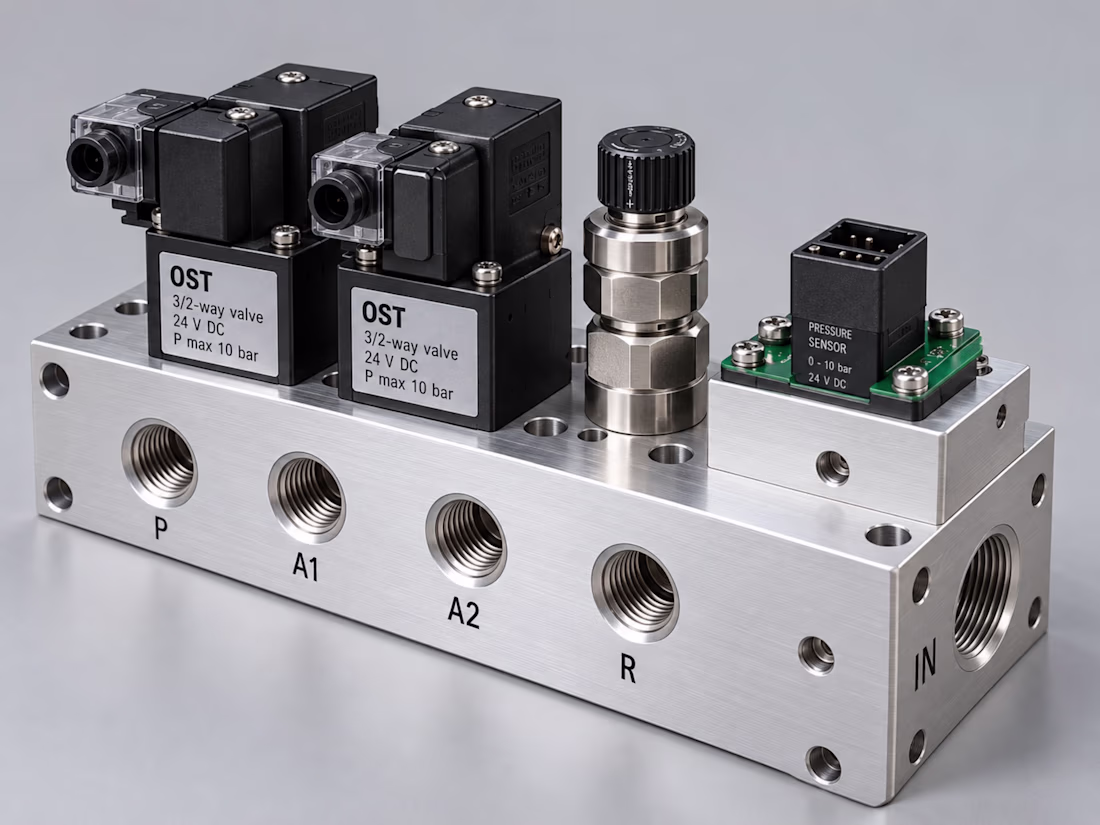

Pneumatic Valve Manifold | Industrial Design, CAD & SolidWorks Pneumatic valve manifold designed with a focus on internal flow channels, precision machining, sealing, component integration, and manufacturability.

The project covers the development of a machined aluminum valve manifold from early concept sketches through detailed engineering documentation and assembly visualization.

Key areas covered:

1. 3D CAD and industrial product design

2. Pneumatic valve manifold architecture

3. Internal channel and flow-path design

4. Section views for internal geometry

5. BSPP/BSPT/NPT port considerations

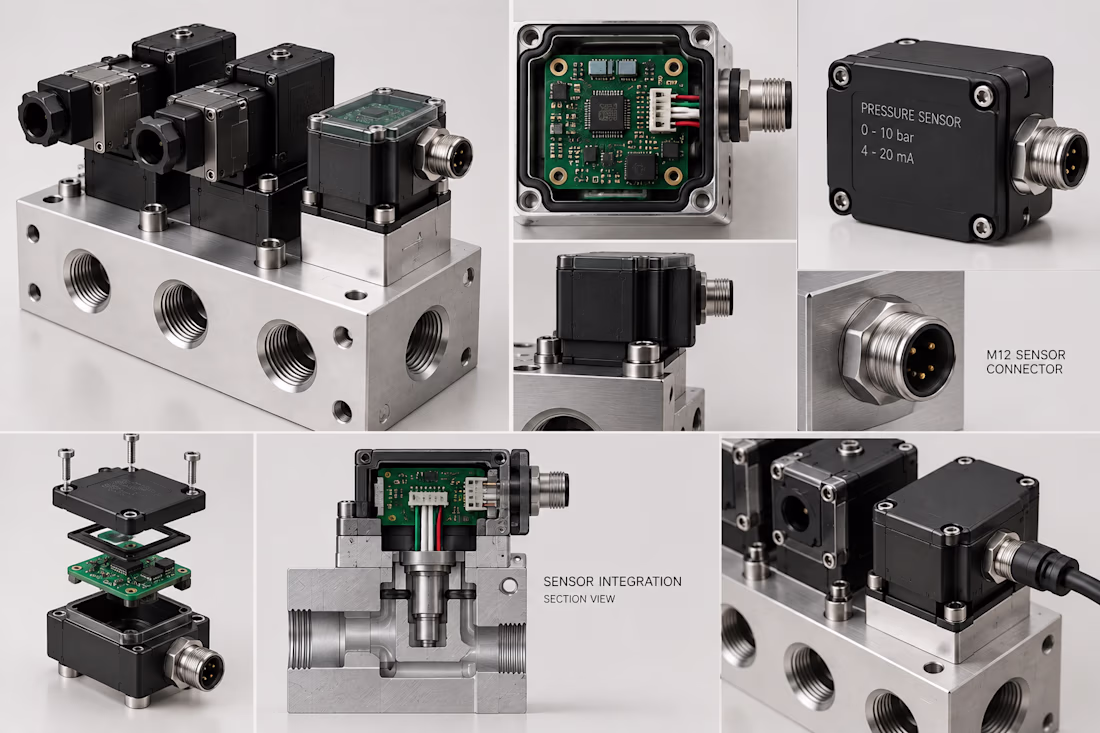

6. Valve and sensor integration

7. O-ring grooves and sealing interfaces

8. Mounting interfaces and fastener locations

9. GD&T, datum structure and position tolerances

10. Flatness and perpendicularity requirements

11. Surface finish and general tolerances

12. Manufacturing and CNC machining considerations

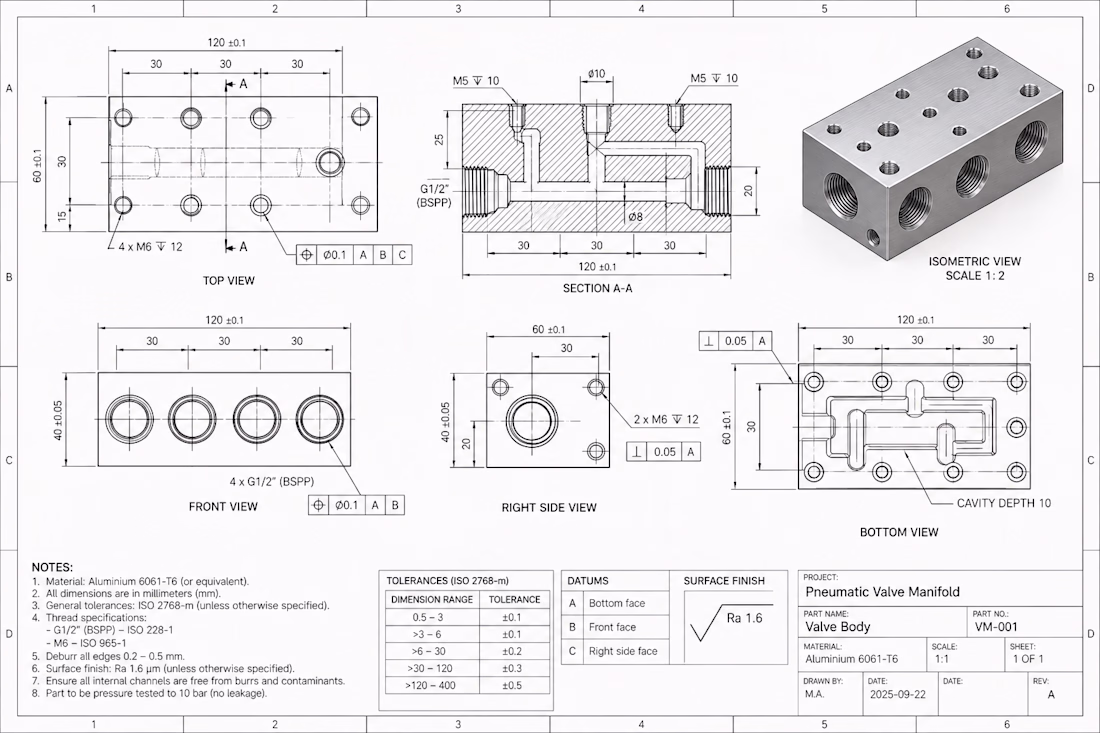

13. Detailed technical drawings and dimensions

14. Assembly and component integration

The final documentation communicates the design intent, critical dimensions, tolerances, sealing locations, internal passages, and manufacturing requirements needed to move the manifold toward production.
