Motor Blower Assembly – CATIA V5

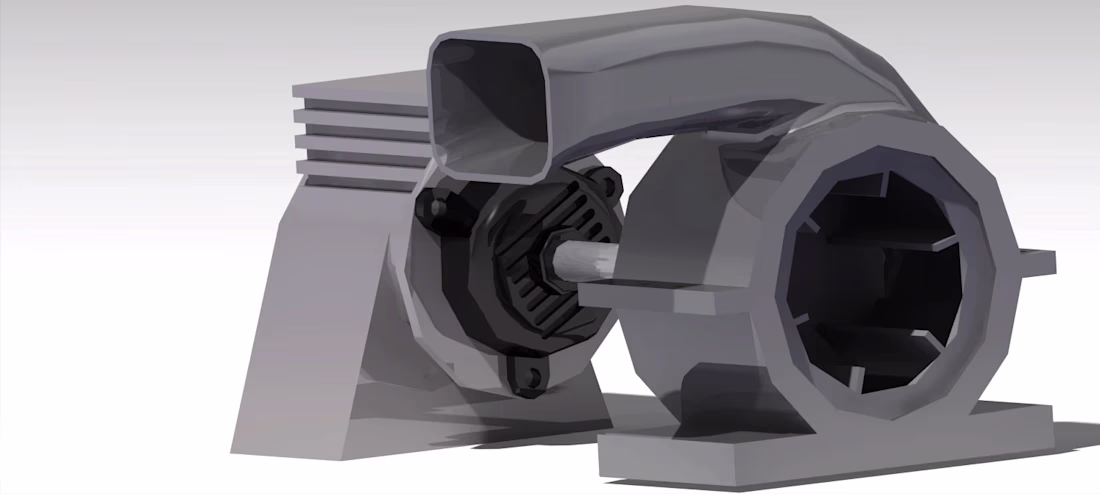

Created a 3D motor blower assembly in CATIA V5 using a technical reference drawing. I interpreted the drawing, modeled the individual mechanical components, and assembled them into a complete 3D model.
This project demonstrates my ability to convert engineering drawings into detailed 3D CAD models and mechanical assemblies.
