CAD Design & Modelling
Contact for pricing
About this service
Summary
I can create a 3D model that suits your need, complete with the 3D model file and an engineering drawing to go with the model for manufacturing.
Process
Create concepts to suit the need.
Make a rough drawing or 3D model to present each concept.
Consult client to see which solution is preferred and refine a single concept.
Create 3D CAD Model of final concept
Consult with client again to refine further
Refine model to create finished 3D CAD Model
Create engineering drawing of 3D model for manufacturing
What's included
3D CAD Model
A 3D model design of a given product to suit your request. This can be refined to suit your needs and make it easy to manufacture.
Engineering drawing
A drawing consisting of 2D views from various sides and an overall 3D view of the model with measurements and tolerances to suit the client.

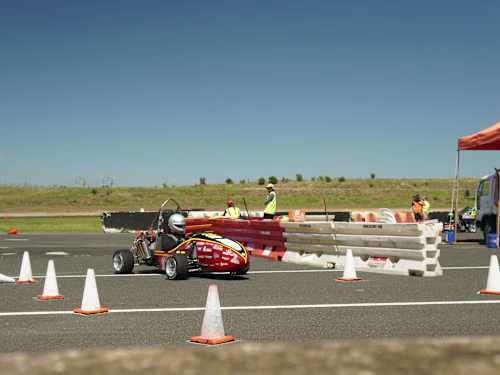

Example projects
Skills and tools
3D Designer
Graduate Student
3D Modeler
SolidWorks
