RK3566 SOM: Edge Computing & Multimedia Core

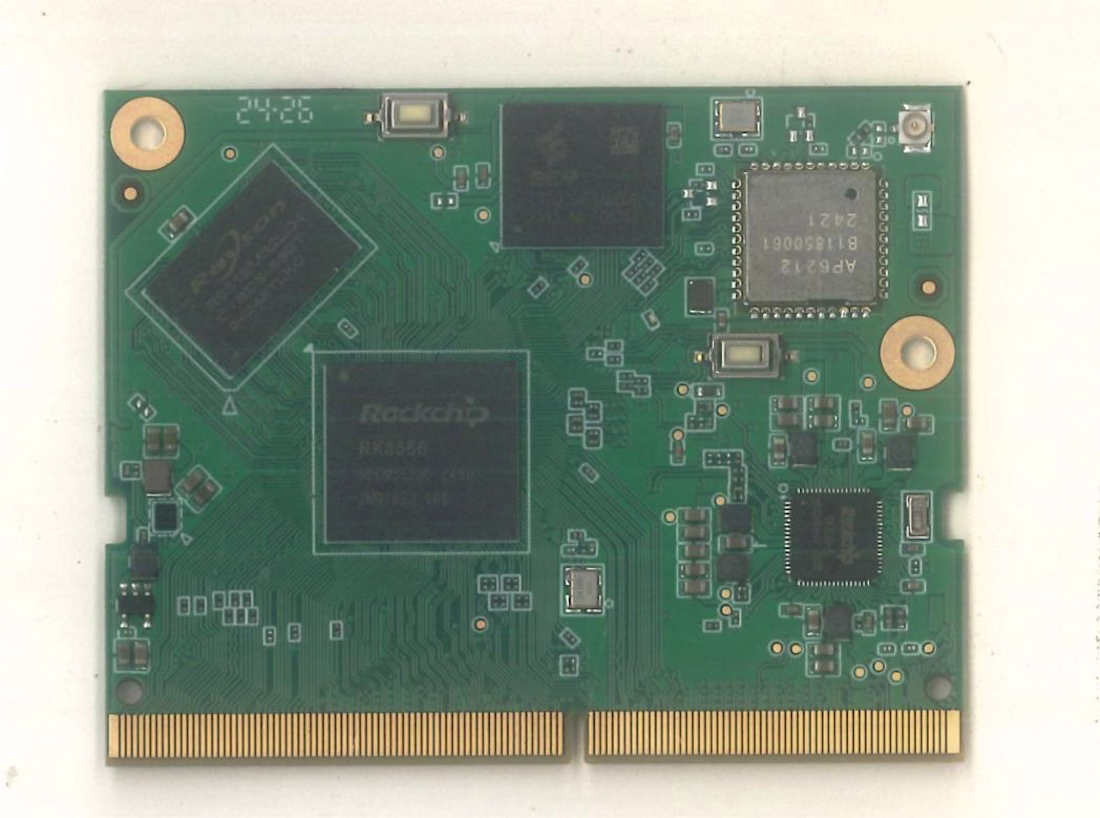

Overview: The RK3566 SOM is a high-performance, 6-layer System-on-Module that integrates a Quad-core SoC, NPU, DRAM, Flash, and PMIC into a compact "Plug-and-Play" computing core. Designed with an Industrial SODIMM interface, it eliminates the risks of secondary reflow soldering inherent in LGA modules, significantly improving factory yield and enabling modular upgrades for AIoT and multimedia applications.

► Skills Used: ● Edge AI Architecture ● High-Speed PCB Design ● DFM & Yield Optimization ● Linux Kernel/APP development(C/C++)

► "High-Performance Core, Low-Cost Carrier": The architecture is engineered to provide a professional-grade computing heart while simplifying the peripheral development: ● Efficiency Redefined: All GPIO pins are routed to the SODIMM interface, allowing clients to deploy complex AI products using simple 1-4 layer carrier boards, drastically reducing R&D costs and TTM (Time-to-Market). ● Resilient Supply Chain: Pre-configured compatibility for 10+ WiFi modules, DDR4/LPDDR4 DRAM, and EMMC/NAND Flash, ensuring production continuity regardless of component shortages. ● Optimized OS Ecosystem: Supports Linux/Android with kernel-level tuning, achieving a 15-second cold boot and stable performance even on 512MB RAM configurations.

► Key Engineering & Product Features: ● AI Intelligence: Built-in 1T NPU enables edge-side AI capabilities for facial recognition, voice processing, and predictive maintenance. ● Multimedia Excellence: Supports 4K hardware decoding and direct HDMI output, ideal for high-definition visual displays. ● Acoustic Precision: Integrated hardware VAD (Voice Activity Detection) significantly enhances the response speed and accuracy of smart speakers and voice interfaces. ● Production-Ready Integrity: A fully verified "Minimum System" that shifts the complexity away from the factory floor to a pre-tested, swappable module.

► Scalability & Proven Success (Mass Production): ● Industrial Automation (MES): Serving as the high-speed data processing core for Manufacturing Execution Systems. ● Consumer Electronics: Deployed in high-definition digital photo frames and portable retro gaming consoles. ● Developer Ecosystem (GRS Viper SBC): Powering professional-grade Single Board Computers for the global maker and engineering community.

This RK3566 SOM represents the pinnacle of "High-Yield Intelligence." By combining AI power with a modular, audit-friendly manufacturing structure, I help you deliver sophisticated high-end products with the technical certainty of a seasoned architect.
