Network Observer: Air-Gapped Enterprise LAN Telemetry & Topology Engine

Executive Summary

Network Observer is a self-hosted, sovereign network telemetry and topology visualization suite engineered for air-gapped university campus labs and secure enterprise subnets. Designed from the ground up for zero external cloud dependencies, it delivers real-time device health monitoring, automated subnet discovery, hierarchical computer lab grouping, and interactive DAG network graphs with an ultra-lean memory footprint (< 500 MB RAM).

The Challenge

Educational institutions and secure facilities manage hundreds of lab machines, routers, and managed switches distributed across segmented VLANs. Existing solutions were either:

Cloud-Tethered SaaS: Violating data residency constraints and failing entirely in air-gapped environments.

Resource-Heavy Legacy Tools: Bloated platforms consuming tens of gigabytes of RAM with outdated, clunky interfaces.

Disconnected Tooling: Requiring separate software for ping sweeps, topology mapping, and asset inventory.

The goal was to build a modern, unified, tactical NOC command center that operates entirely offline, boots in seconds, and handles live telemetry without straining hardware.

Engineering & Architectural Philosophy

As the Lead Architect, I directed the end-to-end technical requirements, database schemas, API contracts, and UX patterns, leveraging state-of-the-art AI pair-programming workflows to rapidly execute and harden production code across the full stack.

Strict 4-Tier Clean Architecture: Domain, Application, Infrastructure, and Presentation layers ensuring complete testability and separation of concerns.

Zero Raw SQL Overhead: Strongly-typed EF Core 10 LINQ queries coupled with a relational PostgreSQL 18 backend running sub-millisecond query execution.

Deterministic Resource Budgeting: Engineered with an explicit ceiling under 500 MB RAM across both Kestrel backend and the frontend runtime.

Comprehensive Automated Verification: 151 automated integration and unit tests covering domain invariant rules, ICMP probes, and RBAC authentication.

Key Features & Innovations

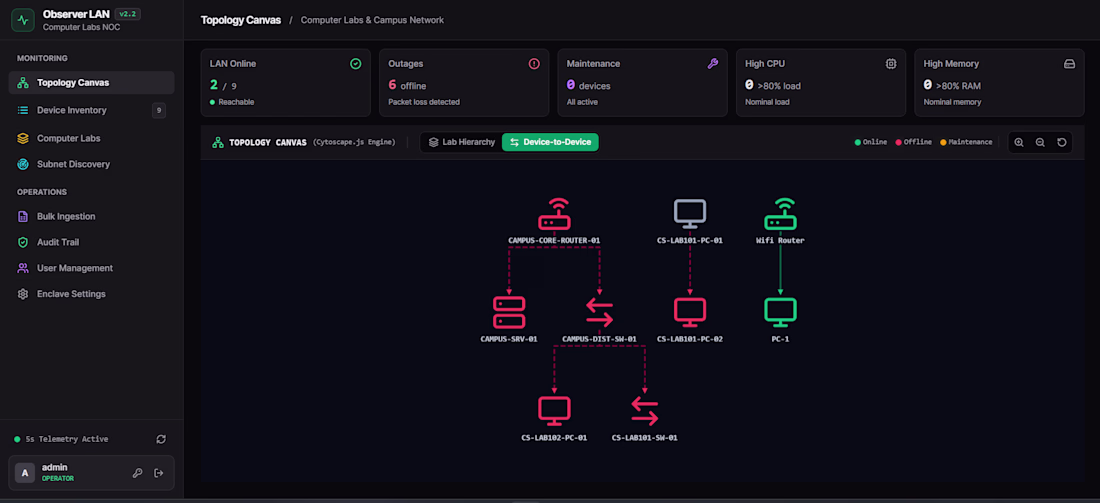

1. Interactive Cytoscape.js Topology Canvas

Real-time network mapping with dynamic layout toggling: Lab Hierarchies (Core Router → Aggregate Switch → Computer Lab Groups → Workstations) or Pure Device-to-Device.

High-performance SVG nodes styled with tactical cyber-optic color palettes, transparent glyph backgrounds, and auto-wrapping status badges.

Hardware-accelerated cursor-anchored smooth zooming and collision-avoidance Dagre layouting.

2. Live Telemetry & Slide-Over Inspector Drawer

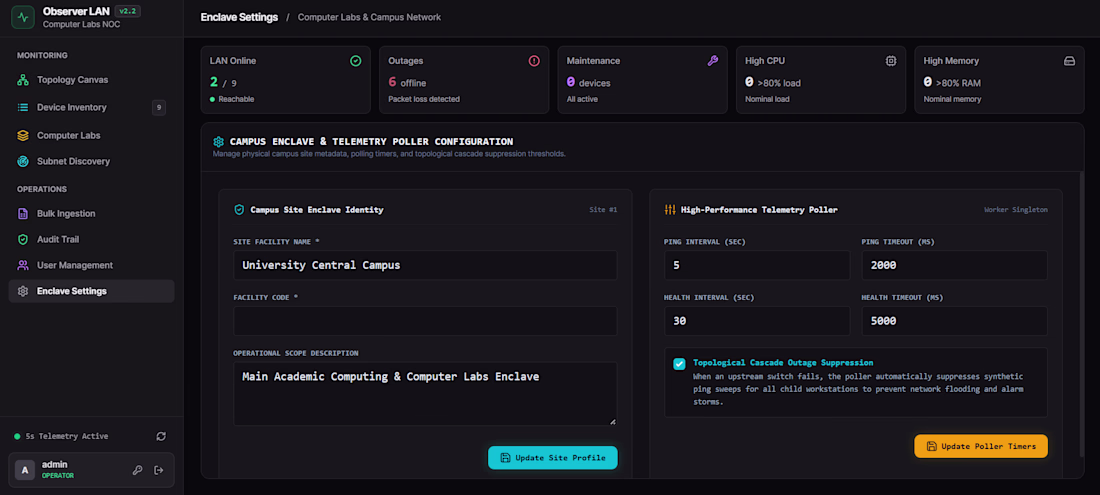

Background non-blocking worker threads conducting periodic ICMP/SNMP telemetry sweeps every 5 seconds.

Instant slide-over inspection drawer displaying live CPU/RAM utilization metrics, uptime gauges, IP/MAC bindings, and vendor footprints.

Route-aware state management that collapses drawers seamlessly upon switching views.

3. Subnet Sweep Discovery & Staging Pipeline

Parallelized CIDR sweep engine (e.g., 192.168.1.0/24) capable of identifying active hosts and resolving MAC/vendor footprints in seconds.

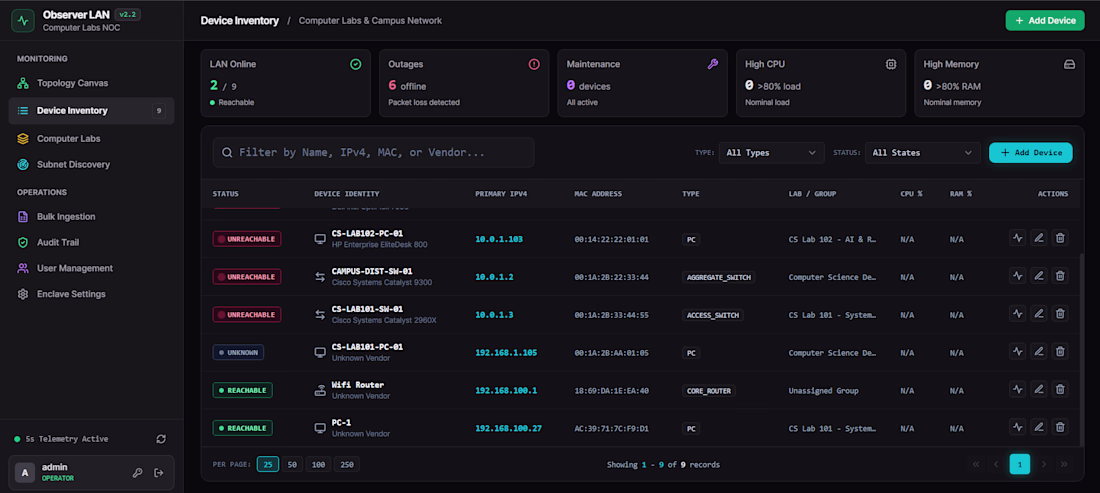

One-click staging pipeline allowing discovered network hosts to be audited and promoted directly into production inventory.

4. Role-Based Governance & Audit Trail

Air-gapped JWT token authentication paired with cryptographically secure PBKDF2 passphrase hashing.

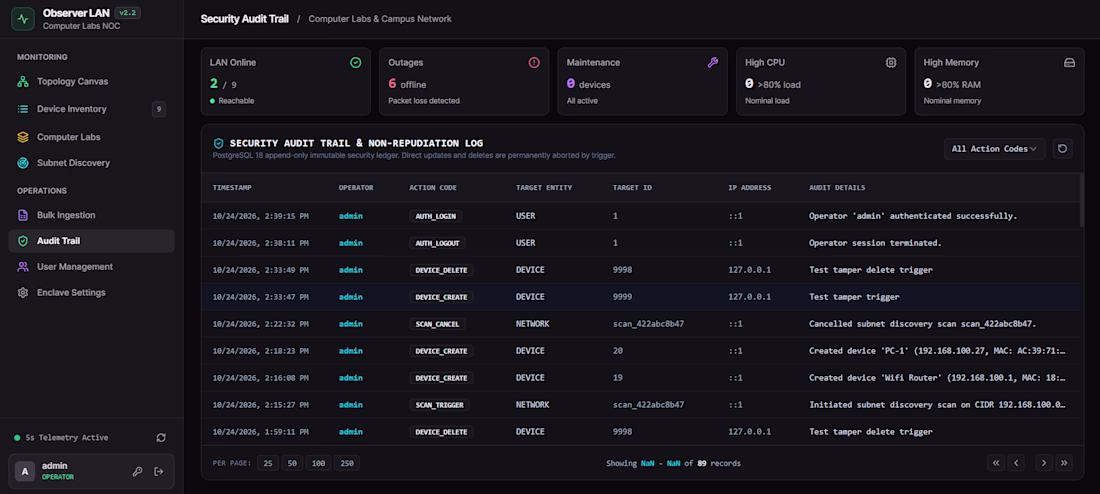

Immutable append-only audit trail logging every device provisioning, IP reassignment, and status mutation.

Technology Stack

Backend: C# .NET 10 Kestrel Web API, Entity Framework Core 10

Database: PostgreSQL 18 with relational integrity constraints & indexing

Frontend: Vue 3 (Composition API), TypeScript, Vite, Pinia Store

Canvas Visualization: Cytoscape.js with Dagre Hierarchical Layout Engine

Styling: Tailwind CSS, Lucide Icons, Custom Tactical NOC Theme

DevOps & Quality: GitHub Actions CI/CD Pipeline, xUnit, FluentAssertions (151 passing tests)

Key Metrics & Results

100% Air-Gapped Sovereign: Zero external telemetry pings or telemetry leakage.

< 500 MB Total Memory Ceiling: Runs seamlessly on resource-constrained campus edge servers.

151/151 Test Coverage: Zero test regressions with automated GitHub Actions verification.

Sub-Millisecond Queries: Fast relational indexing across hundreds of concurrent lab nodes.
