Designed a compact IoT sensor enclosure using SolidWorks, focusing on manufacturability and real-world application.
Key features:
Two-part enclosure (base + lid)
Internal PCB mounting system
Reinforced screw bosses
Ventilation slots for sensor functionality
O-ring groove for sealing (IP-rated design)
Draft angles applied for injection molding

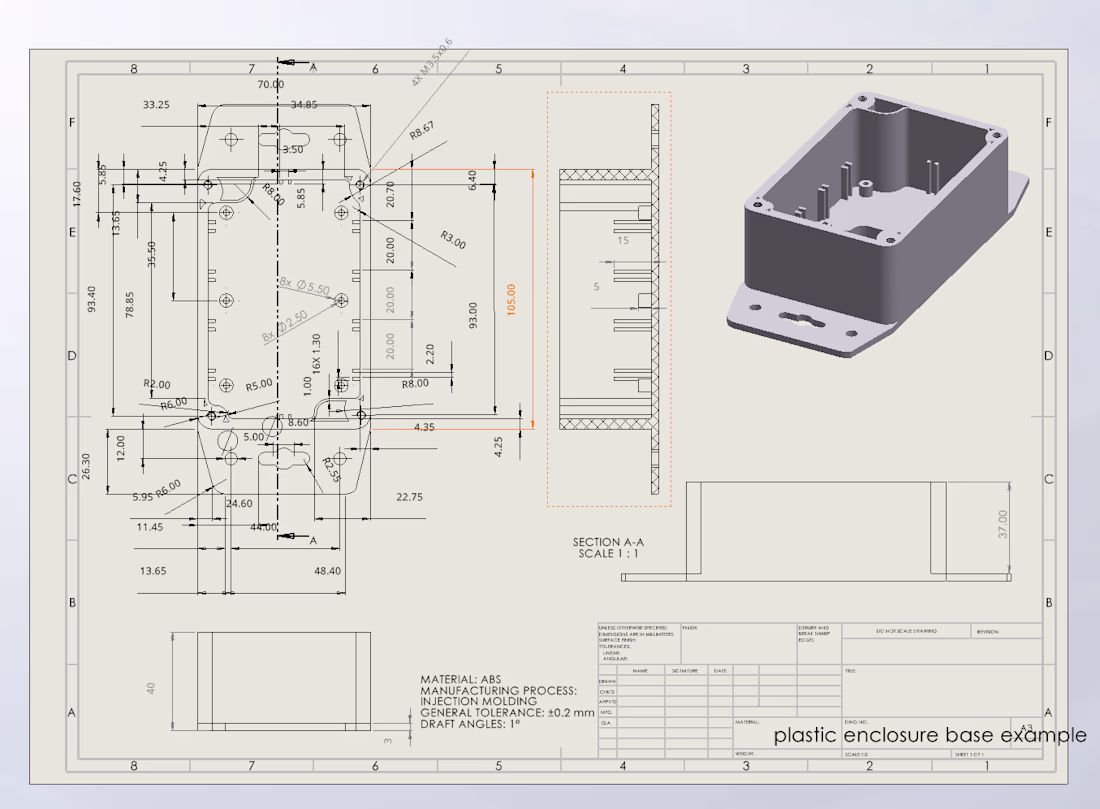

NOTE : The design differs from the base example used to create the part, GD&T work all original
