RK3326s SOM: Modular "Minimum System" for Rapid Deployment

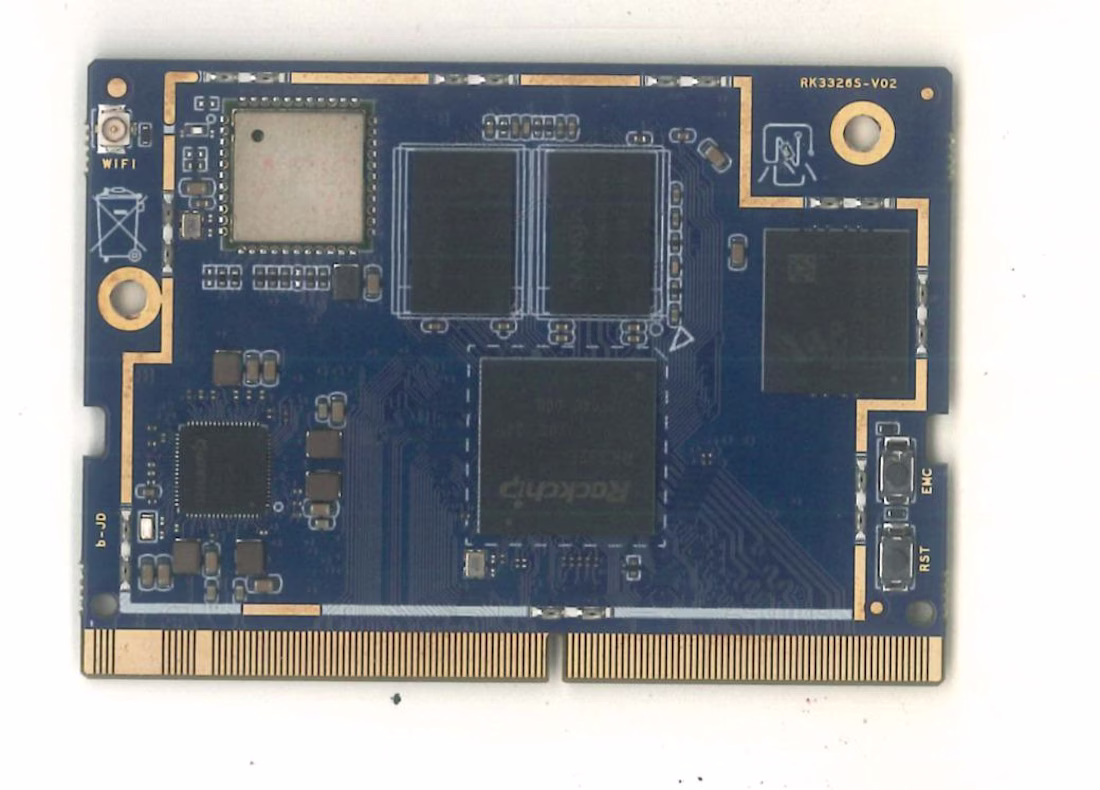

Overview: The RK3326s SOM is a highly integrated, 6-layer System-on-Module designed to function as a complete, "plug-and-play" computing core. By utilizing a 260-pin DDR4 SO-DIMM interface, this module eliminates the need for secondary reflow soldering—a common cause of defects in LGA-based modules—while enabling rapid assembly and field-swappability for industrial and consumer applications.

► Skills Used: ● High-Speed Systems Architecture. ● PCBA design (Altium/KiCad) ● Linux Kernel/APP development(C/C++) ● DFM & Production Optimization ● EMI/EMC Engineering ● BOM Optimization

► "One Core, Infinite Carrier Boards": The modular design is engineered to slash development cycles and R&D costs for new product categories: ● Full GPIO Breakout: All essential I/Os are routed to the SO-DIMM interface, allowing clients to develop simple 1-4 layer carrier boards for specific projects. ● Elastic Material Compatibility: Pre-engineered to support 10+ WiFi modules, DDR3/LPDDR3 DRAM, and EMMC/NAND Flash variants, ensuring a resilient supply chain against component shortages. ● Streamlined Production: Avoids the "Double-Reflow" trap, significantly lowering the barrier for entry for smaller factories and reducing the scrap rate during mass production.

► Key Technical Features: ● Ultra-Fast Boot: Optimized Linux kernel achieving a 18-second cold boot time. ● Memory Efficiency: Stable and fluid operation on configurations as low as 512MB DRAM + 1GB EMMC. ● Ruggedized Layout: Built-in immunity to high-frequency interference, ideal for smart kitchen appliances and industrial environments. ● Dual-OS Support: Native compatibility with both Android and Linux, providing flexibility for diverse UI and logic requirements.

► Scalability & Proven Success (Mass Production): ● Industrial Automation (ESOP): Deployed as the central processing unit for factory-wide Electronic Standard Operating Procedure systems. ● High-End Consumer Tech (LG DUOBO): Trusted as the core compute engine for premium smart devices. ● Smart Kitchen Appliances: Successfully integrated into high-power microwave steam ovens, leveraging its radiation-resistant design.

This SOM represents my commitment to "Zero-Defect Manufacturing." I provide a hardware core that is not only powerful but also audited for production reliability, allowing you to focus on your product's unique features while I handle the complexities of the underlying architecture.
