I designed and modeled this custom external gear hydraulic pump specifically to power the lifting mechanism of a two-wheel agricultural tractor trailer, enabling efficient loading and unloading.

Because standard off-the-shelf pumps often do not match the specific RPM, space constraints, or power output of small two-wheel tractors, this pump was custom-engineered from the ground up.

Key aspects of this project include:

Complete 3D CAD Assembly: Created a highly detailed 3D model in SolidWorks, ensuring all components fit together with strict manufacturing tolerances.

Component Design: Modeled the complete internal architecture, including the main casing, drive and driven gears, precision bearing blocks, and heavy-duty structural assembly bolts.

Sealing & Fluid Dynamics: Carefully designed the internal routing and integrated O-ring grooves to ensure high-pressure fluid containment without leaks during heavy lifting operations.

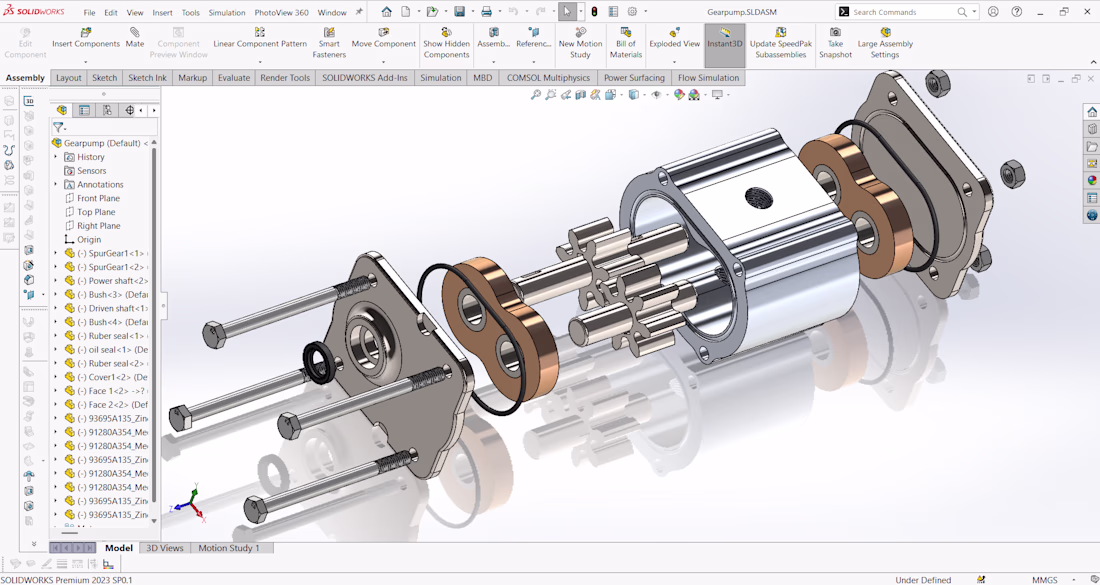

Exploded Views: Generated professional exploded assembly views to clearly demonstrate the internal mechanics and aid in the manufacturing and assembly process.
