Product Enclosure Concept Direction: One Housing for Your PCBEugenio Cruz Cornejo
Working electronics, and the housing still to decide? This is the step before CAD.
I work out how your boards, battery, connectors and controls stack up, then give you one enclosure direction: 3D concept geometry, 3 renders, and the reasoning behind it. Why this architecture, what drove the proportions, which process it targets, and which alternatives I considered and why they fall short.
One direction, argued, so you finish knowing what to build and why.
Includes a 30-minute walkthrough call and one refinement round. 7 days from receiving your files.
Send me: board outline or STEP with connector positions, fixed component dimensions, and what the product is and where it lives. After you book, I send a short intake brief to fill in.
Next steps when you are ready: Direction Developed, $1,500 (full 3D model with DFM notes) and Production Handoff, $2,500 (manufacturing-ready model and drawing set).
FAQs

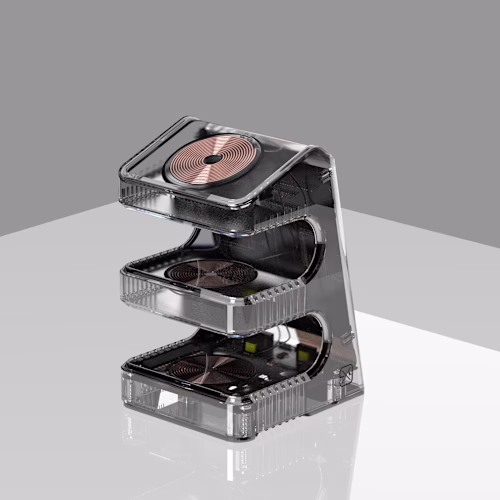

Example work
Starting at$600
Duration1 week
